Description
The BY299 is a 2.0 Ampere Soft Fast Recovery Diode in a DO-201AD Case Package. The BY299 is a Soft Recovery Rectifier with axial lead terminals, molded plastic case, and a band that denotes cathode end polarity. It features high surge current capability, 2-ampere operation at TA=55°C with no thermal runaway, and fast switching for high efficiency.
Features
- High current capability
- High surge current capability
- High reliability
- Low reverse current
- Low forward voltage drop
- Fast switching for high efficiency
Specifications
| Model | BY229 |
| Make | BMC Components |
| Type | Soft Recovery Diode |
| Max. Average Forward Rectified Current | 2.0A |
| Max. Recurrent Peak Reverse Voltage | 800V |
| Max. DC Blocking Voltage | 800V |
| Case | DO-201AD |
| Mounting Type | Through Hole |
| No of Pin | 02 |
| Operating Temperature Range | -50 to +125 °C |

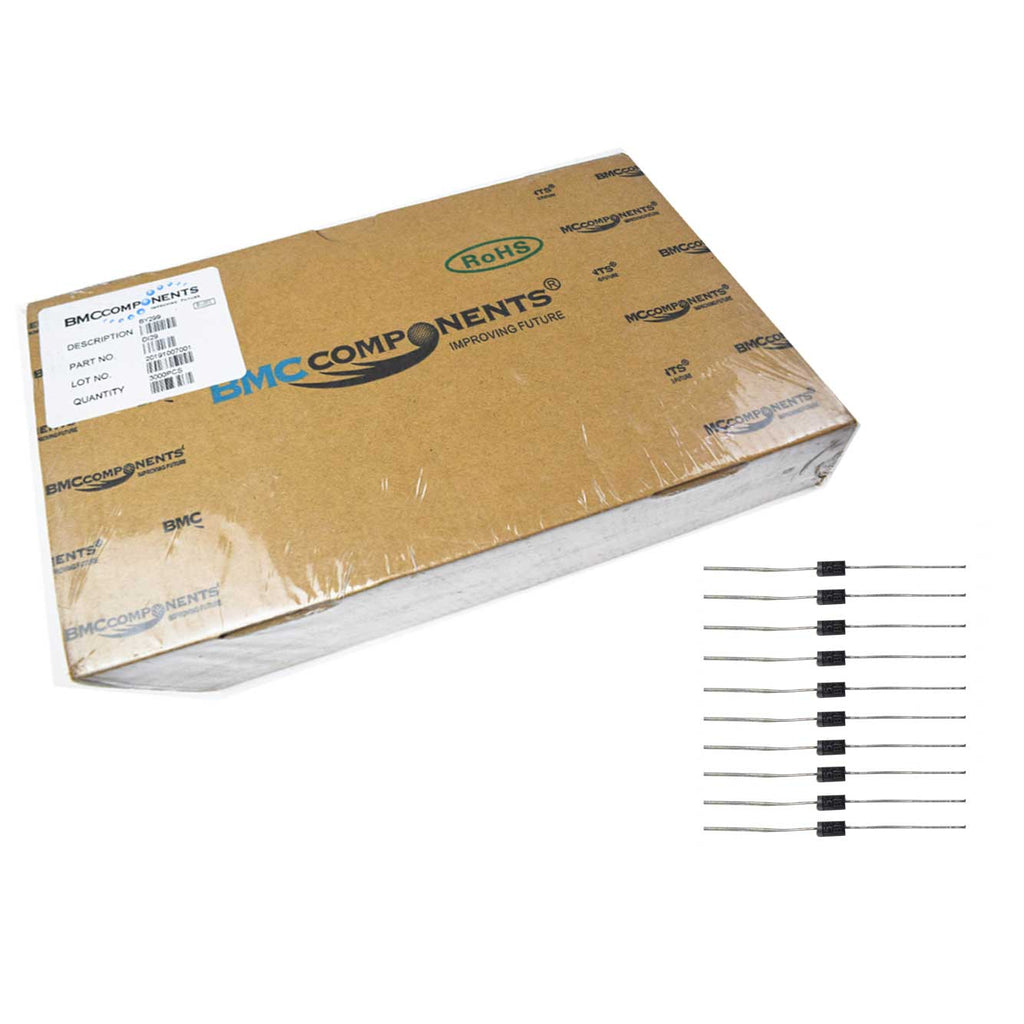

| Quantity | 3000 |
| Country of Origin | China |
