Description

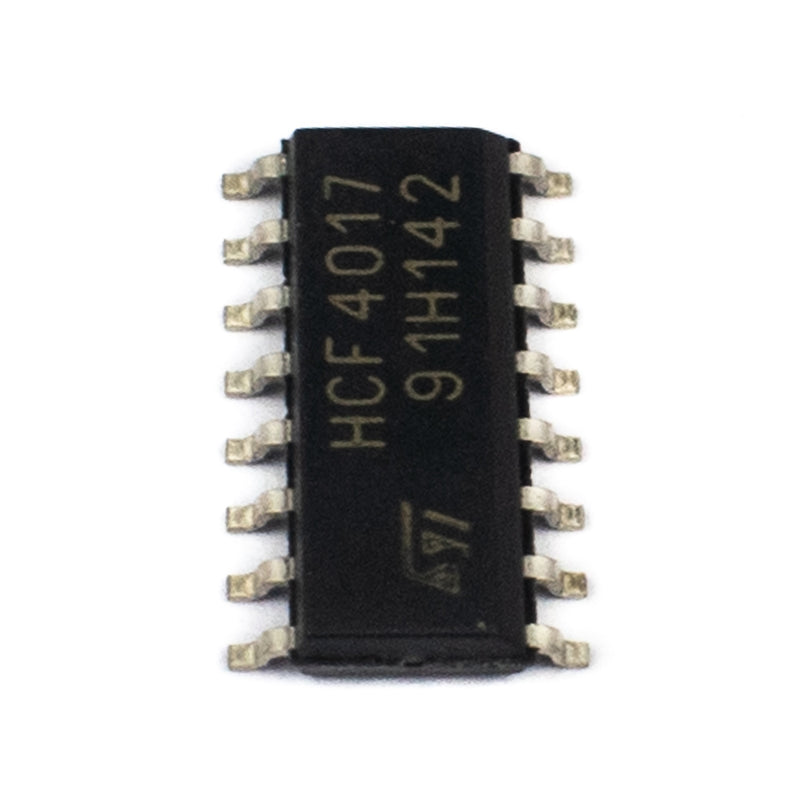

The CD4017 is a 5-stage divide-by-10 Johnson counter with 10 decoded outputs and a carryout bit. The CD4017 layout allows for medium-speed operation and assures a hazard-free counting sequence. The IC CD4017 is utilized in counting applications and has the capacity to switch on 10 outputs sequentially in a pre-defined time, as well as reset or hold the count as necessary. It also includes the option to use a Carry pin to show the status of counting. This IC is frequently used in Led chasers and other logical output projects, so if you need a sequential decoded counting IC that can count up to ten, this is the one to choose.
Features
- Wide supply voltage range: 3.0V to 15V
- Low power Fan out of 2 driving 74L TTL compatibility: or 1 driving 74LS
- Fully static operation
- High speed 16 pin CMOS Decade counter
- Supports 10 decoded outputs
- TTL compatible
Specifications
| Power Supply | 3- 15V |
| Low power | 10 µW |
| Medium speed operation | 5.0 MHz with 10V VDD |
| High noise immunity | 0.45 VDD |
| Maximum Clock Frequency | 5.5Mhz |
| Power Dissipation (PD) | 700mW |
| Storage Temperature | −65°C to +150°C |
| Country of Origin | China |
