Description

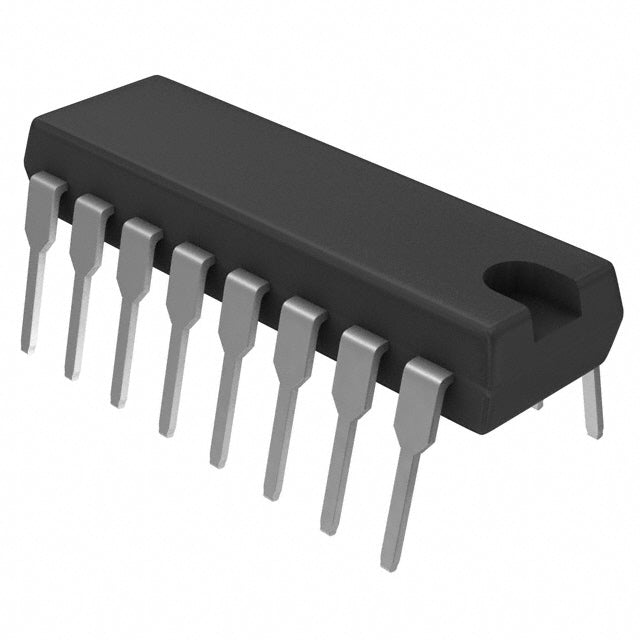

The CD4543BE is a CMOS BCD-to-7 segment LCD decoder driver IC designed for use in electronic display applications. It comes in a 16-PDIP (Plastic Dual-In-Line Package) configuration, making it suitable for through-hole PCB assembly. The IC integrates BCD-to-7 segment decoding and driving circuitry, making it convenient for driving common-cathode displays. It supports a wide range of input voltages, typically operating from 3V to 18V, which enhances its versatility in various electronic systems. With its built-in latch and decoder logic, the CD4543BE simplifies the interface between BCD inputs and 7-segment LCD displays, making it a reliable choice for applications requiring efficient and accurate display control.
Specifications:
| No. of pins | 16 | |
| Mounting type | Through Hole | |
| Display type | LCD | |
| Package type |
16-DIP (0.300", 7.62mm)
|
|
| Voltage supply | 3V ~ 18V | |
| Operating Temperature | -55°C ~ 125°C |
