Description

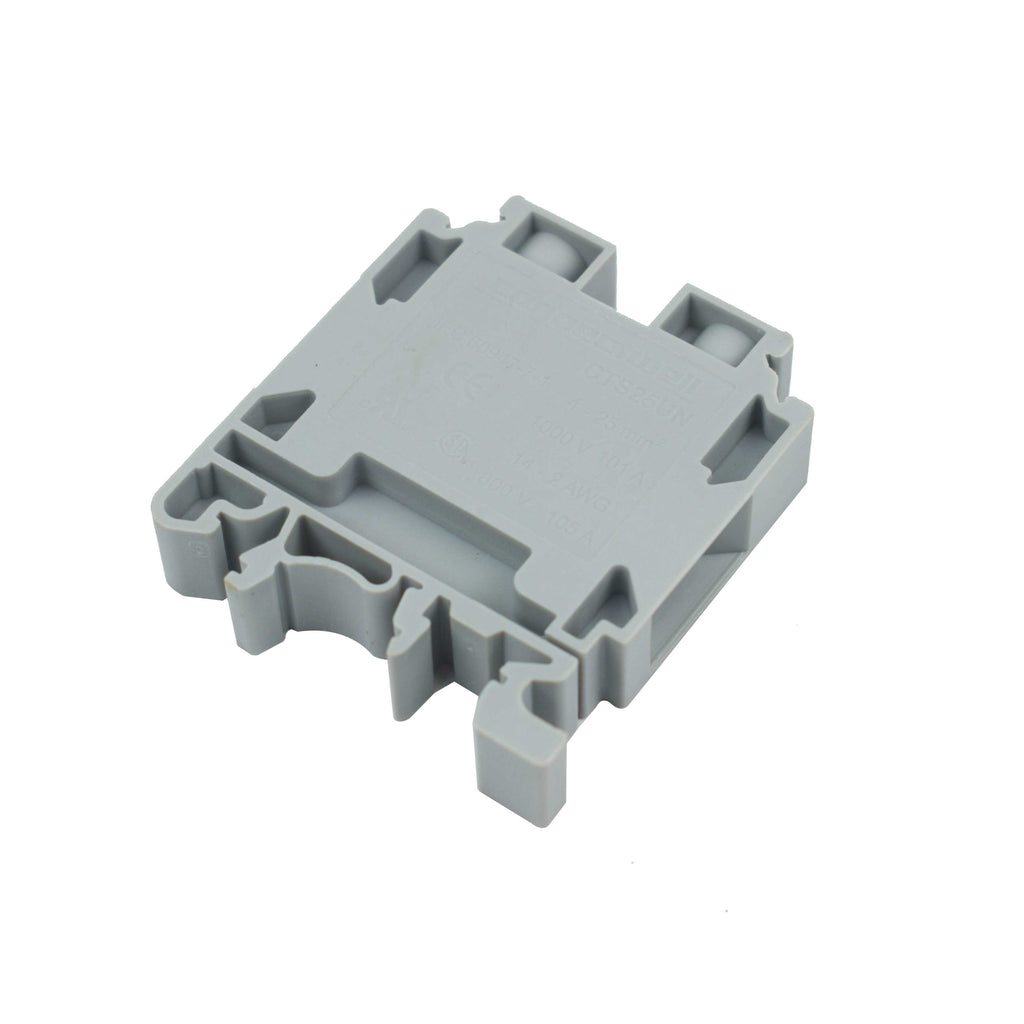

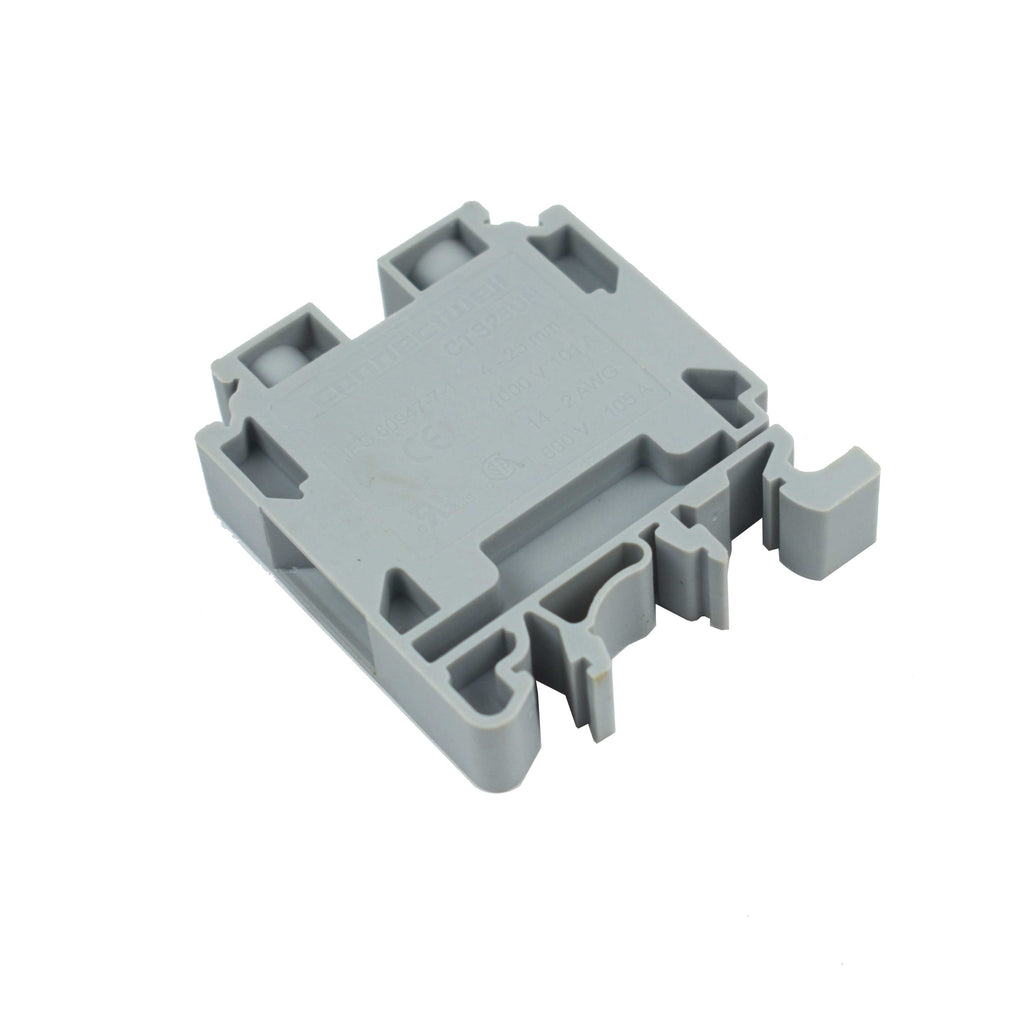

25 sq. mm Feed Through Terminal Blocks are the most Versatile terminals for control, Automation, Instrumentation and Power Distribution applications. A specially designed flexible foot enables easy mounting and dismounting from the Din rail with the help of a screwdriver. These Terminal Blocks have marker-holding recesses to accept marking tags for circuit identification. A cross connection can be achieved with the aid of shorting links/sleeves & screws. To feed through power, signal, and data is the classical requirement in electrical engineering and panel building. The distinguishing characteristics are the insulating material, the connection system, and the layout of the terminal blocks. One or more conductors can be joined together or connected using a feed-through terminal block. They might have one or more connection levels that are isolated from one another or on the same potential.
The most versatile terminals for control, automation, measurement, and power distribution applications are 25 sq. mm feed through terminal blocks. With the aid of a screwdriver, a flexible foot with a particular design makes mounting and unmounting from the Din Rail simple. In order to receive marking tags for circuit identification, these Terminal Blocks contain marker holding holes. In order to create a cross connection, shorting links, sleeves, and screws are used.
Specifications
|
Rated Voltage |
1000 V |
|
Rated Current |
101 A |
|
Tightening Torque |
2 Nm |
|
Housing Material |
Polyamide |
|
Product Function |
Feed Through |
|
Wire Entry Orientation |
Side Entry |
|
Mounting Possibility |
DIN32/DIN 35/DIN 35-15 Rail |
|
Screw Size |
M5 |
|
Operated by |
Screwdriver |
|
Rated Surge Voltage |
8 KV |
|
Pollution Degree |
3 |
Dimensions
| Height with DIN 32 rail | 62.3 mm |
|
Height with DIN 35 x 15 mm rail |
64.7 mm |
|
Height with DIN 35 x 7.5 mm rail |
57.2 mm |
|
Length |
49 mm |
|
Width (Thickness) |
12 mm |
| Country of Origin | China |
