Description

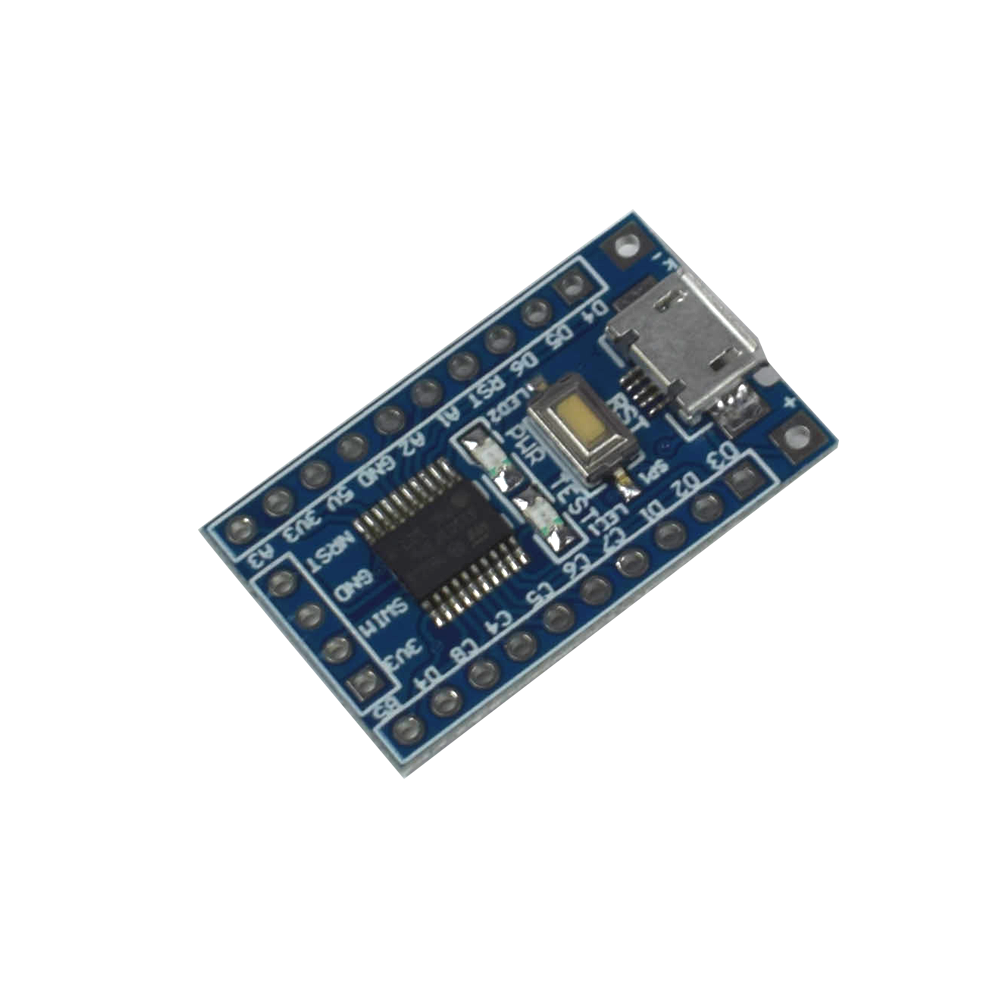

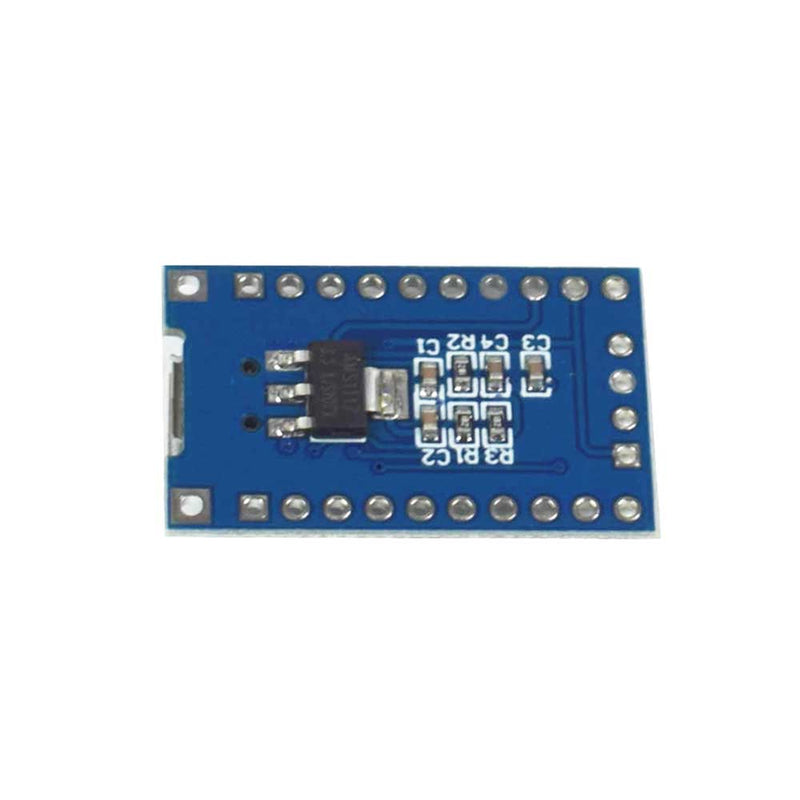

This is a Micro USB STM8S103F3P6 Development Board that uses Micro USB for power and communication with programmers. This Development Board has an 8-bit microcontroller from ST Microelectronics STM8S103F3P6 is a rugged, high performance microcontroller unit with UART, I2C, SPI, and a 5-channel 10-bit ADC. It supports SWIM debug mode. In their inbuild components: MicroUSB input, Reset button, IC and LED indicators.
Features
- Indicator LEDs
- Minimum System Board
- Micro USB line is compatible
Note: 5V-Pin is an input voltage of the module.
Specifications
| Model/Name | Core Board STM8S103F3P6 Development Board |
| Type | Development Board |
| Reset Button | Yes |
| Interface | Micro USB |
| Input Voltage | 4.5 - 15 V |
| Output Voltage | 3.3V |
| Size | 30mm*19mm*3.5mm |
| Country of Origin | China |
