Description

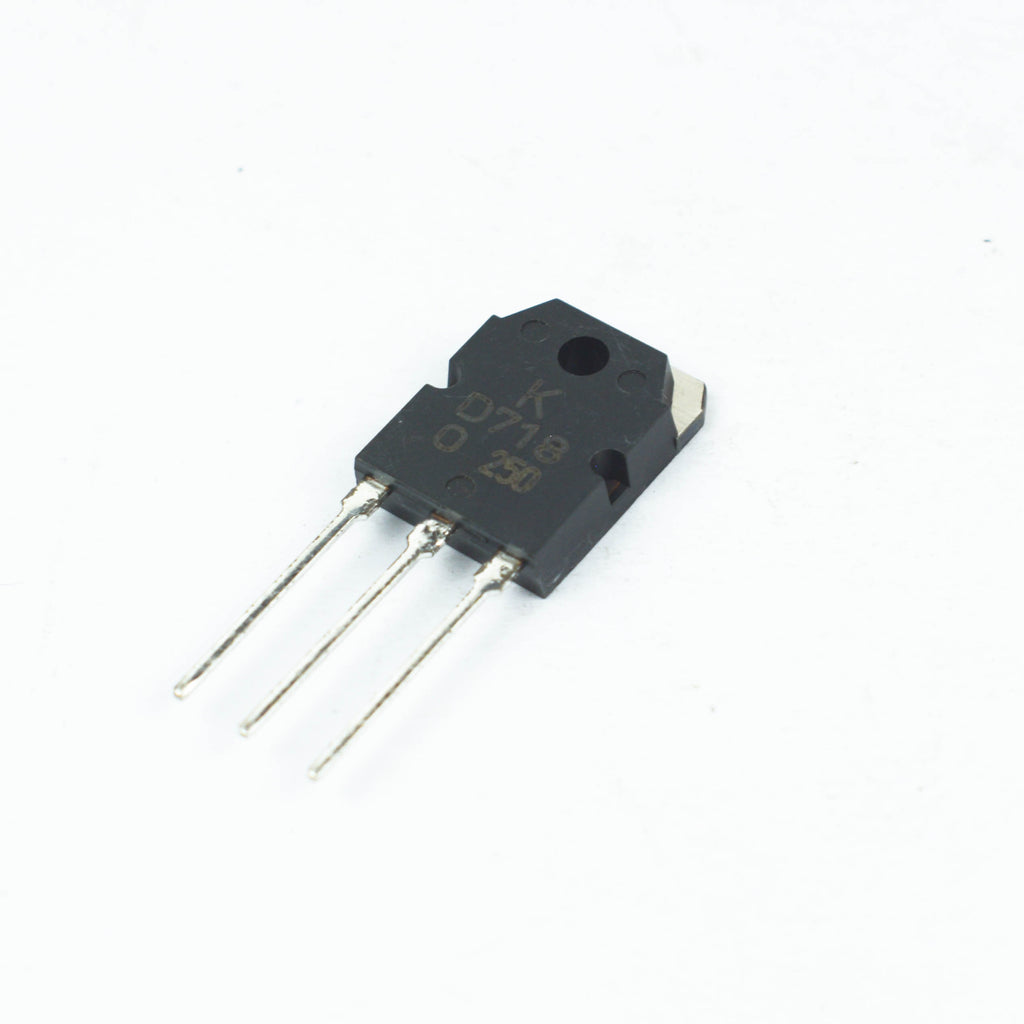

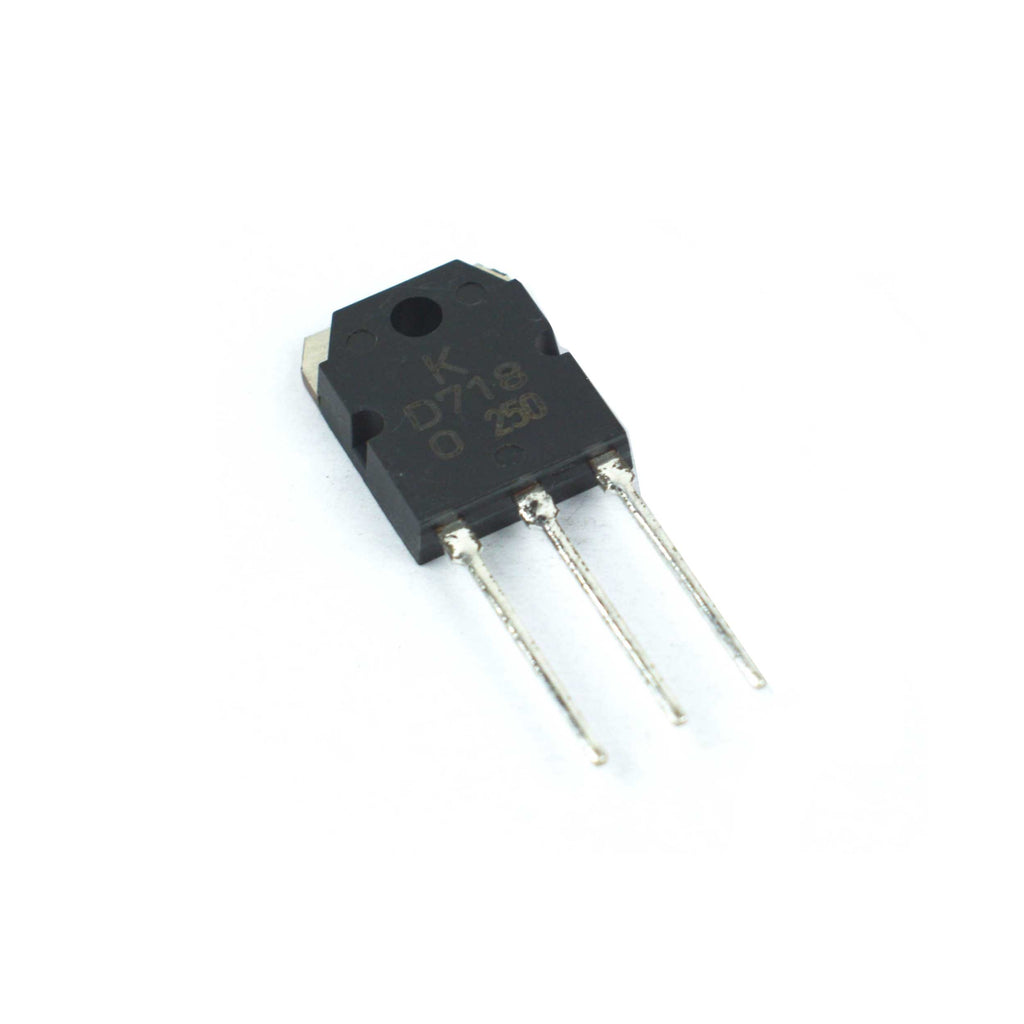

D718 is a triple diffused epitaxial silicon NPN transistor. It is often used in high-power amplifier applications. It is recommended for the 45~50W Audio frequency amplifier output stage.
Features
- Recommended for 45~50W Audio frequency amplifier
- Output Stage
- Complementary to KTB688
Specifications
| Model | D718 |
| Brand | Korea Electronic |
| Polarity Type | NPN |
| Collector-Base Voltage (VCBO) | 120V |
| Collector-Emitter voltage (VCEO) | 120V |
| Emitter-Base Voltage (VEBO) | 5V |
| Collector Current (IC) | 10A |
| Base Current (IB) | 1A |
| Collector Power Dissipation (Pc) | 80W |
| Junction Temperature (TJ) | 150 degree C |
| Storage Temperature Range (TSTG) | -55~150 degree C |
| Country of Origin | China |
