Description

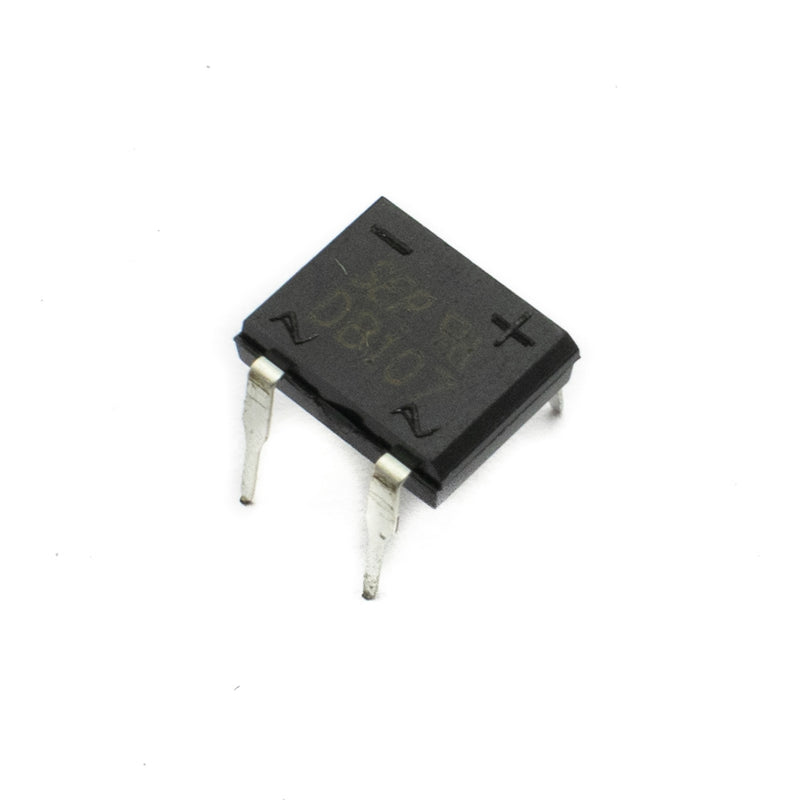

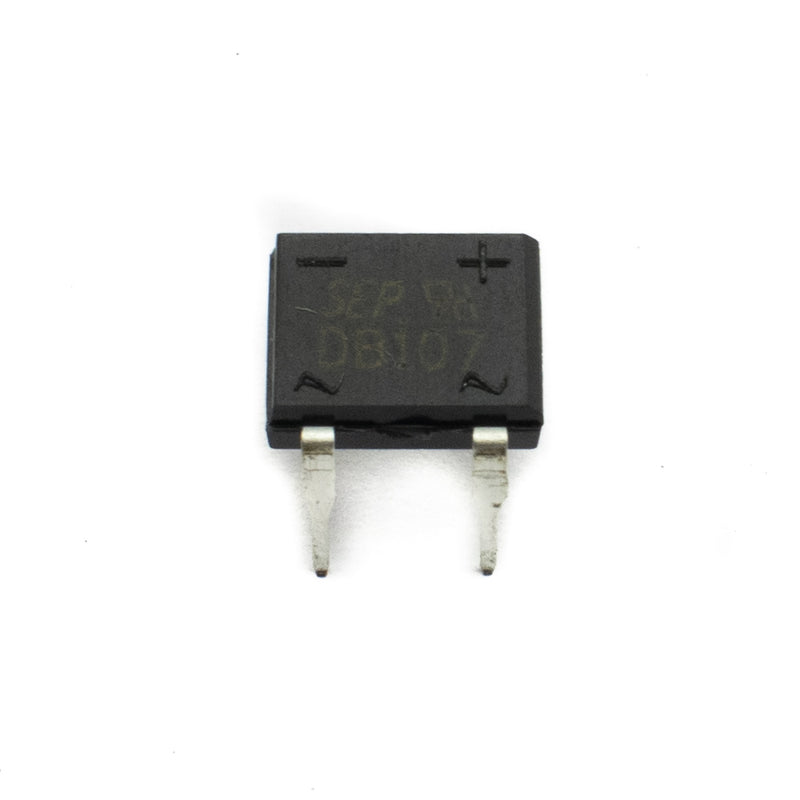

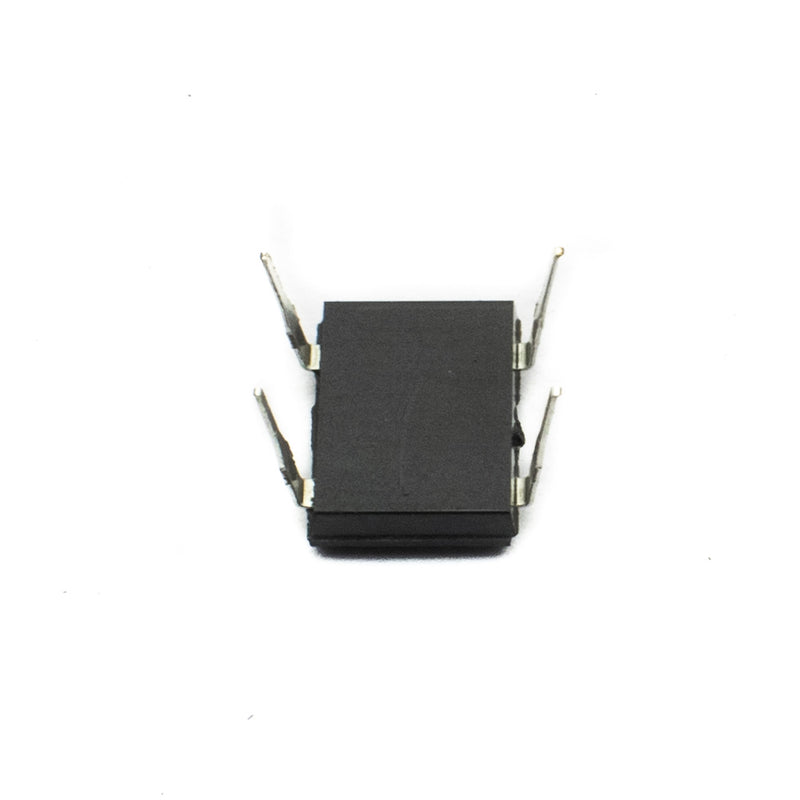

The DB107 is a bridge rectifier diode commonly used for single-phase applications. The maximum input AC RMS voltage of this IC is 700V hence, can be used for a broad range of applications. The maximum DC current that this IC can handle is 1A. This IC has a reverse breakdown voltage of 1000V and a low forward voltage drop of 1.1V. It has high efficiency and a high surge current capability of 50A. If you are looking for a compact IC for rectification application this can be a good choice.
Pinout
|
Pin Number |
Pin Name |
Pin Description |
|
1 |
Positive |
Positive of Rectified Output |
|
2 |
AC Input |
AC Input |
|
3 |
Negative |
Negative of Rectified Output |
|
4 |
AC Input |
Ac Input |
Features:
- Good for automation insertion
- Surge overload rating - 50 amperes peak
- Ideal for printed circuit board
- Reliable low cost construction utilizing moulded
- Glass passivated device
- Polarity symbols moulded on the body
Specifications
|
Input Voltage |
50-1000V |
|
DC Blocking Voltage per element |
0.5mA |
|
Maximum RMS Bridge Input Voltage |
700V |
|
Maximum DC Blocking Voltage |
1000V |
|
Maximum Average Forward Output Current |
1A |
|
Maximum Forward Voltage Drop per Bridge |
1.1V |
|
Operating Temperature Range: |
-65 to + 150°C |
| Dimensions | 8.2mm x 8.2mm x 2.4mm |
| Country of Origin | China |
