Description

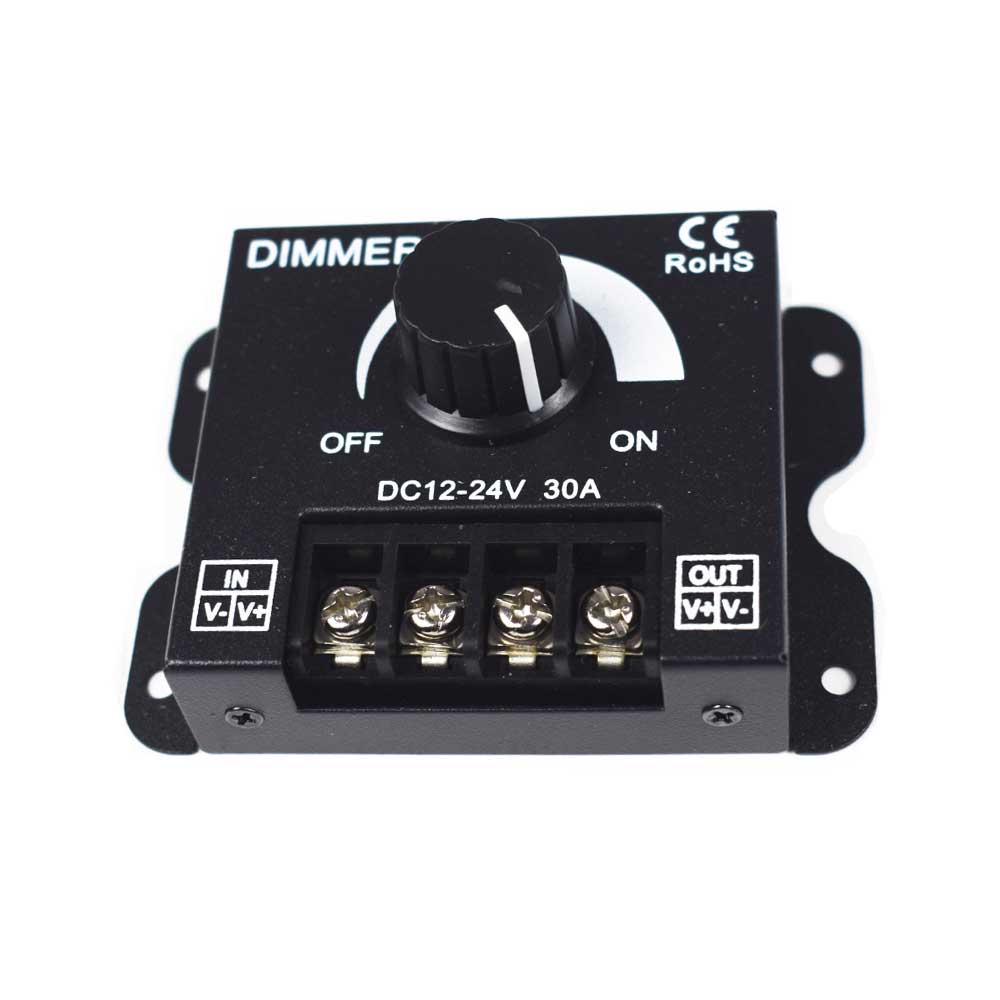

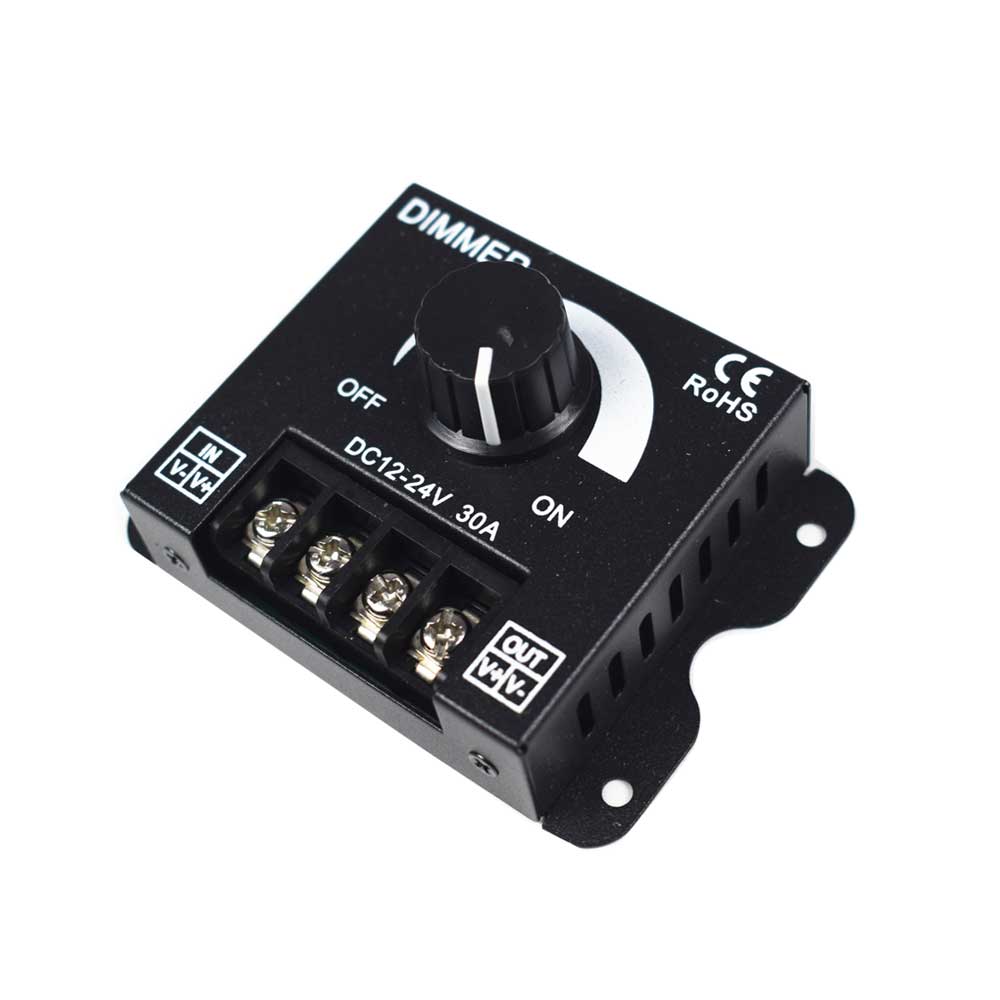

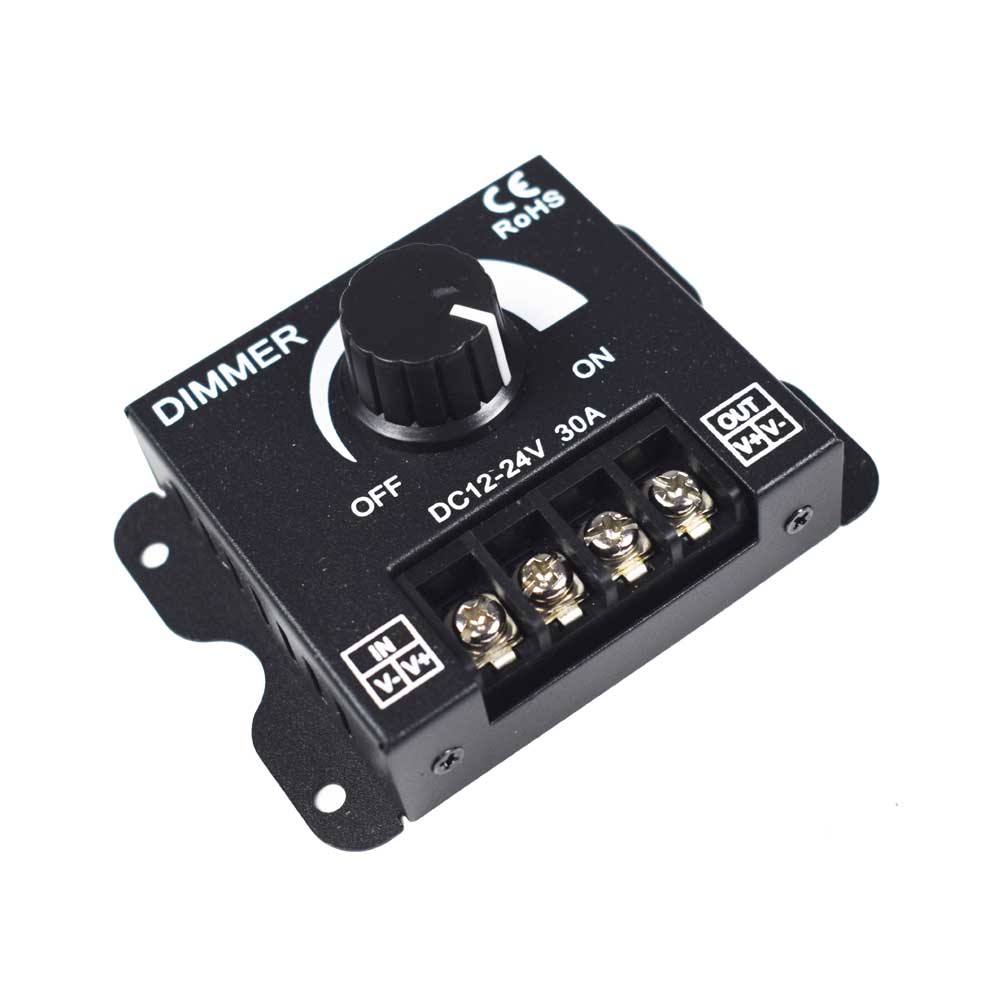

This is a DC 12-24V 30A Dimmer Controller Switch for LEDs Brightness Control. Dimmer is a controller that can adjust brightness infinitely, Its control mode is knob-operated control, you could adjust the light to the appropriate lighting brightness in accordance with your actual need.
Feature
- 30A Dimmer switch
Safety Information:
- The input voltage of this controller should be 12-24V DC;
- Never connect two wires directly in case of a short circuit;
- The lead wire should be connected correctly according to the colours that connecting diagram offers;
Specification
| Product |
Dimmer Switch |
| Output Current | 30A |
| Power Supply Voltage |
12-24V |
| Output | 1 Channel |
| Number of Terminals | 4 |
| Remote Distance | >20m |
| Working Temperature | -20°C to +60°C |
| Output Power | 12V<360W, 24V<720W |
| Dimension(LxBxH) | 86.6mm x 62.4mm x 35mm |
| Knob Length | 15mm |
| Country of Origin | China |
