Description

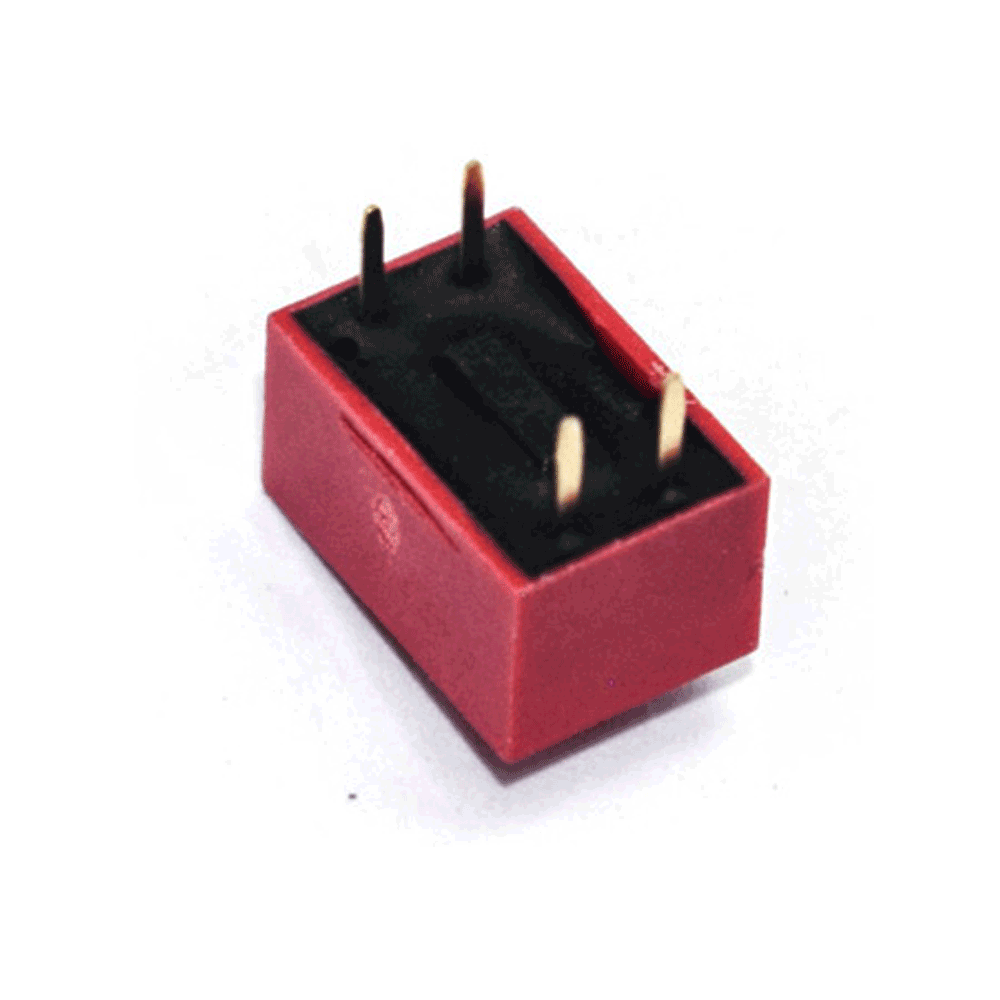

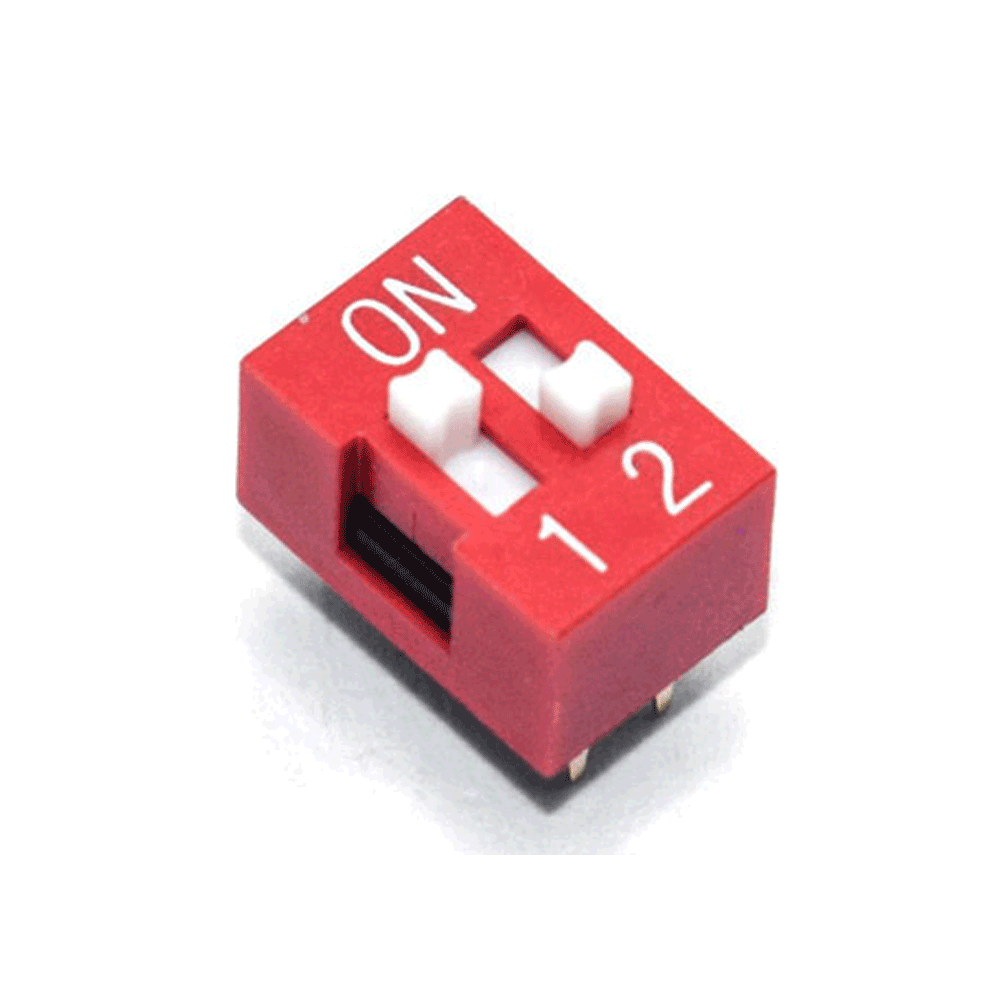

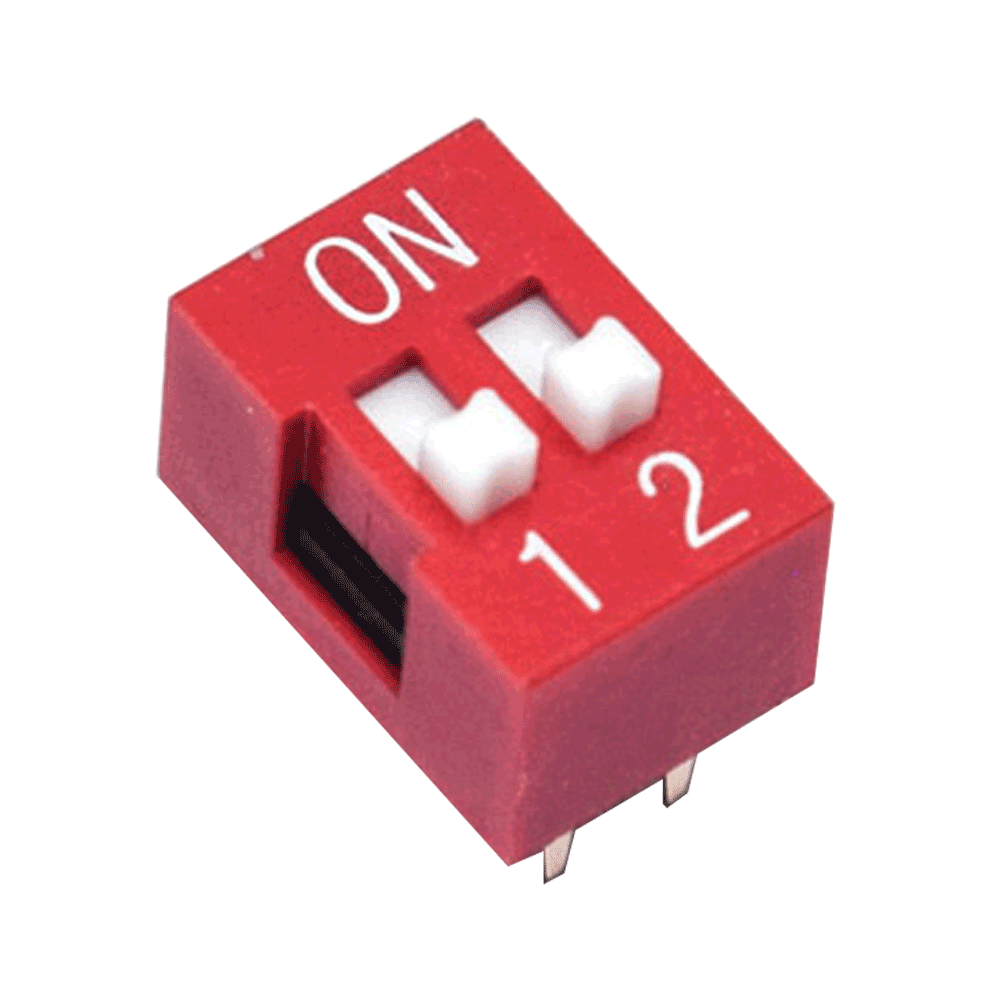

A dual in-line package (DIP) switch is a manual electronic package that is composed of a series of tiny switches. It has a rectangular casing and two parallel rows of connecting terminals. whose position changes the operating mode of a device. DIP switches help configure computer peripherals, such as hard drives, modems, sound cards, and motherboards. This 2 Way DIP SPST Switch is the simplest type of switch in which a single toggle either connects or disconnects a single terminal from other. This switch is designed to be conveniently mounted on printed circuit boards to provide various ranges of input to the electronic device.
Specification
| Max. Operating Voltage | 30V DC |
| Max. Operating Current | 150mA |
| Contact Resistance | <100mΩ |
| Operating Temperature | -20°C to 80°C |
| Colour | Red |
| Pitch | 2.54mm |
| Mounting Type | Through Hole |
| Number of Connecting Pins | 4 |
| Position | 2 |
| Dimension | 9.8x6.5x6.5mm |
| Country of Origin | China |
