Description

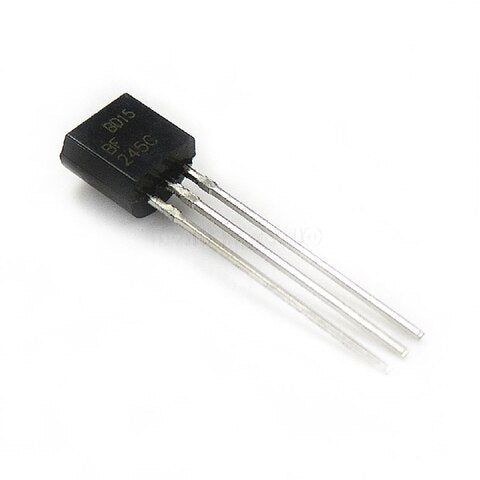

BF245C is a general purpose N-channel symmetrical junction field-effect transistors in a plastic TO-92 variant package. It is primarily made to be used as an audio frequency amplifier and as an amplifier in the VHF and UHF frequency bands. A very small and low gain signal (RF, audio, or any other signal) can be amplified to high gain with undesirable noise filtered using the transistor's high gain and low noise properties.
Features:
- Its general purpose transistor
- Its basically designed to use as a Switch
- Its package is TO-92
- Its mounting style is through hole
Applications :-
- VHF Signal Amplifier
- UHF Signal Amplifier
- RF Oscillators
- Audio amplification and preamplification
- Verity of Low Level Signal Amplification
- Sensor & Detector Circuits
Specifications
| Model | BF245C |
| Brand | Fairchild |
| Transistor Type | N Channel JFET |
| Max Voltage Applied From Drain to Source | 30 V |
| Max Drain to Gate Voltage | 30 V |
| Max Reverse Gate to Source Voltage | -30 V |
| Max Continues Drain Current | 25mA |
| Gate to Source Cutt-off Voltage | -0.5 V – 0 V |
| Max Power Dissipation | 300mW |
| Operating temperature | -55 °C - 150 °C |
| Package | TO-92 |
| Quantity | 100 |
| Country of Origin | China |
