Description

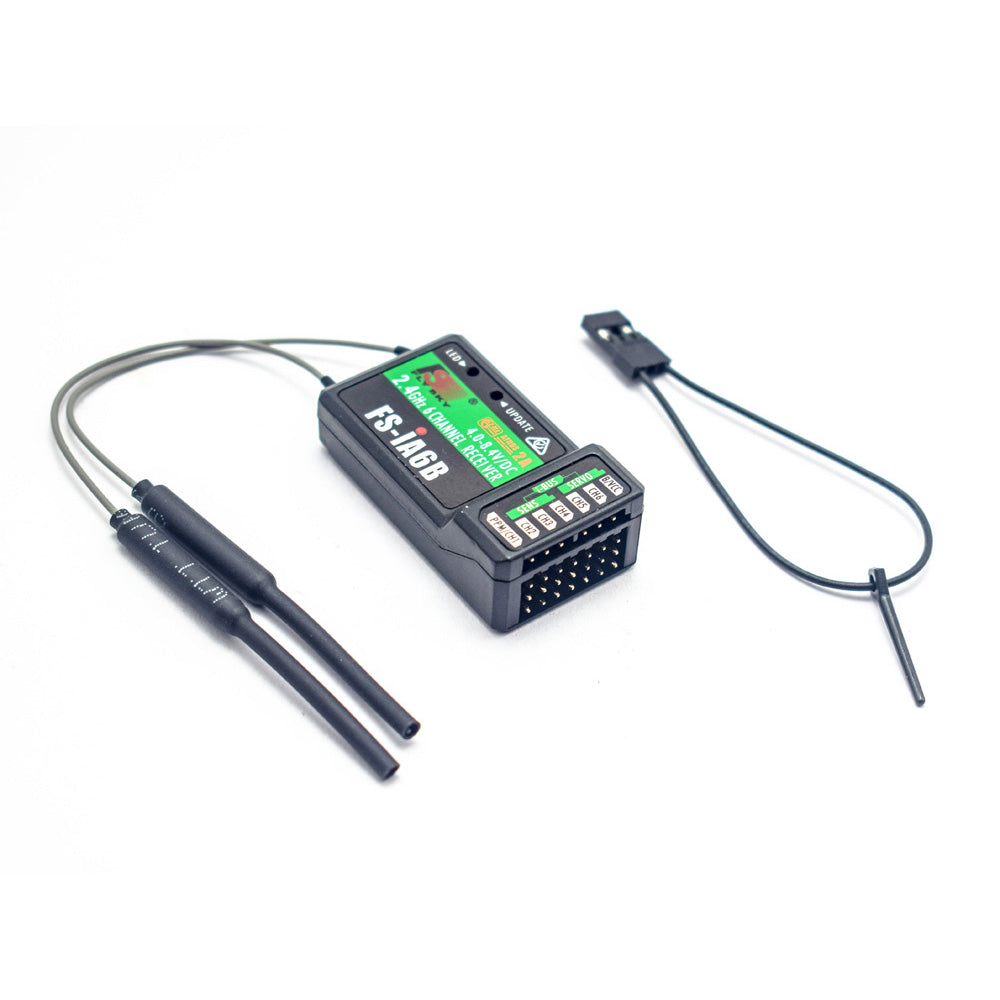

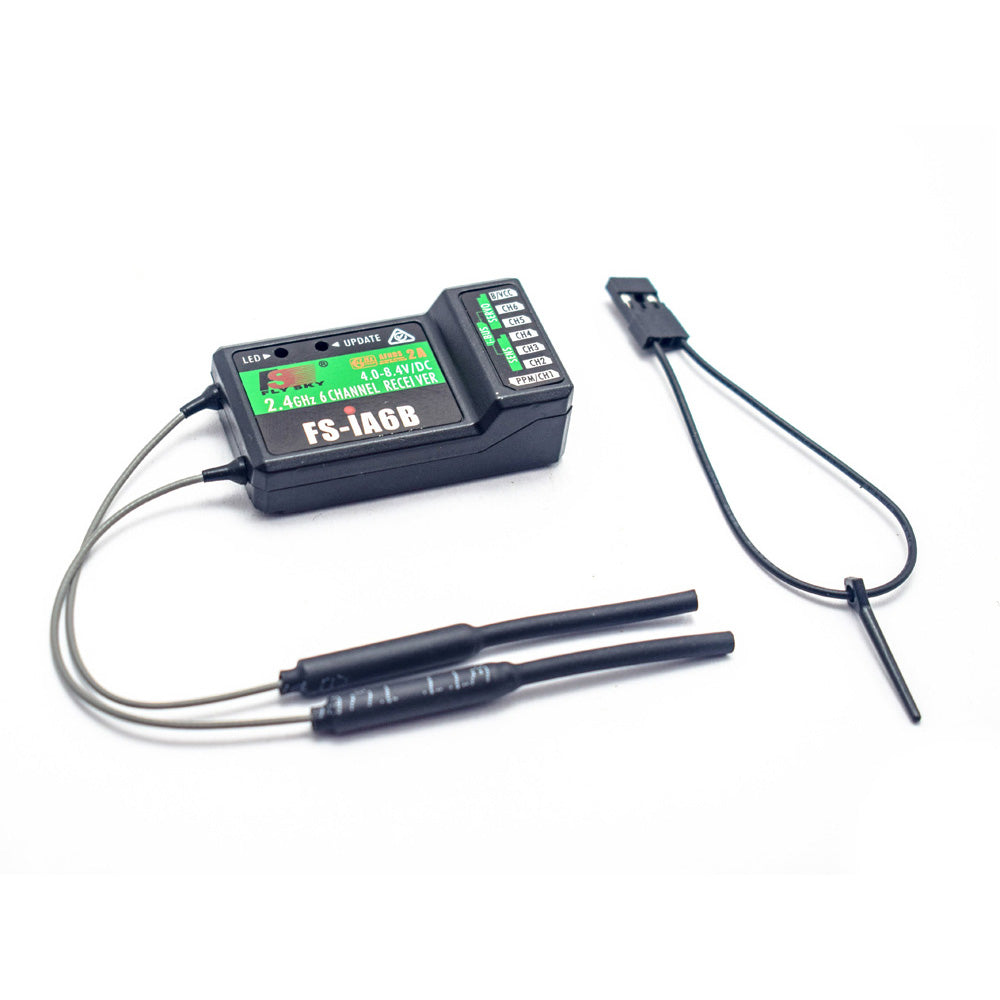

This is a small 6-channel receiver with a range of more than 500 metres and a twin antenna for superior reception and interference rejection. Each transmitter has its own unique ID, which the receiver retains when binding and only accepts data from that transmitter. This prevents other transmitter signals from being picked up, lowering inference and increasing safety. The FLY SKY FS IA6B RF 2.4GHz 6CH PPM output with iBus port receiver works great with the FlySky FS-i6 Controller. The compact 6 channel receiver is ideal for any model with up to 6 channels, and with a range of more than 500 metres, it may be considered the full range for all but the most demanding applications. End-on connectors on the receiver allow for a clean installation in small areas.
Specification
Model |
FS-iA6B |
No. of Channels |
6 |
No. of Band |
140 |
Encoding |
GFSK. |
RF Range |
2.4055–2.475 GHz. |
Rx Sensitivity (dBm) |
-105 |
Operating Voltage (VDC) |
4.0 ~ 8.4V |
i-Bus Interface |
Yes |
Data Acquisition Interface |
Yes |
Antenna Length (mm) |
26 |
Video Format Supported |
NTSC/PAL |
Colour |
Black |
Size | 47x26x15mm |
Country of Origin | China |
