Description

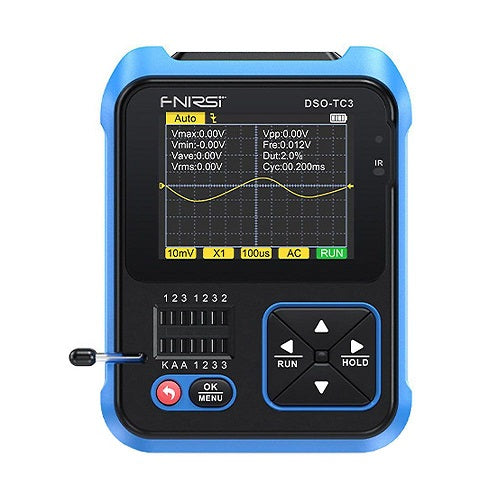

FNIRSI DSO-TC3 combines a digital oscilloscope, electronic component tester, signal generator, continuity test, voltage test, temperature and humidity measurement, infrared decoding and other functions are skillfully integrated. It is equipped with a 2.4-inch color TFT display, built-in rechargeable lithium battery, brings users stronger and more practical functions with good portability
- The oscilloscope has a real-time sampling rate of 10 MSa/s and a bandwidth of 500 kHz.
- With complete trigger function (single, normal, automatic), no matter if you’re using periodic analog signals or non-periodic digital signals.
- Maximum measured voltage signal is 400 V.
- Equipped with efficient AUTO, the measured waveform can be displayed without cumbersome adjustments
Functions (Component Tester)
- Automatically analyse NEC protocol infrared code.
- Other functional modes: Including circuit continuity test, 0-40 V input voltage measurement, PWM output, 0-32 V regulated diode measurement, DS18B20 temperature sensor measurement, DHT11 temperature and humidity sensor measurement, etc.
Functions (Signal Generator)
- The signal generator has a total of 6 waveforms to choose from, with adjustable frequency and amplitude.
Included
1x DSO-TC3,3x Test Hooks,1x USB-C Cable,1x Original Manual by FNIRSI
