Description

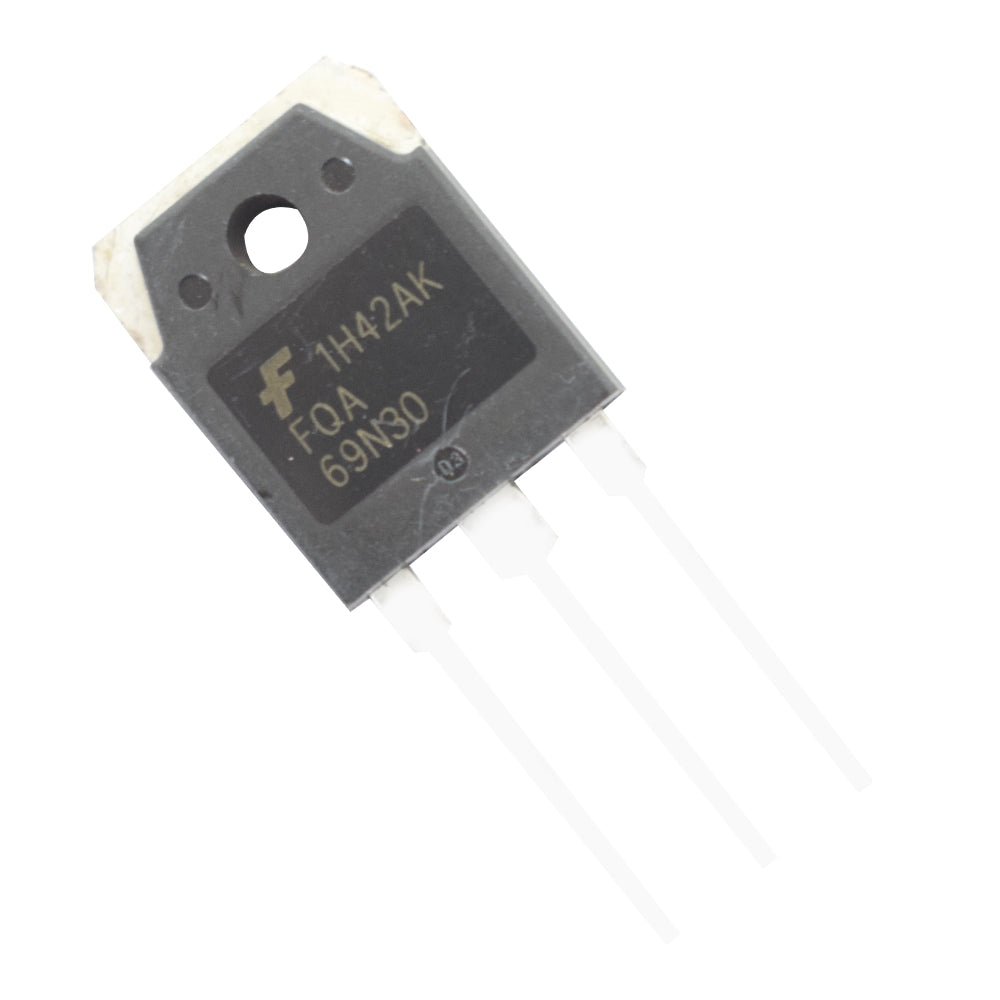

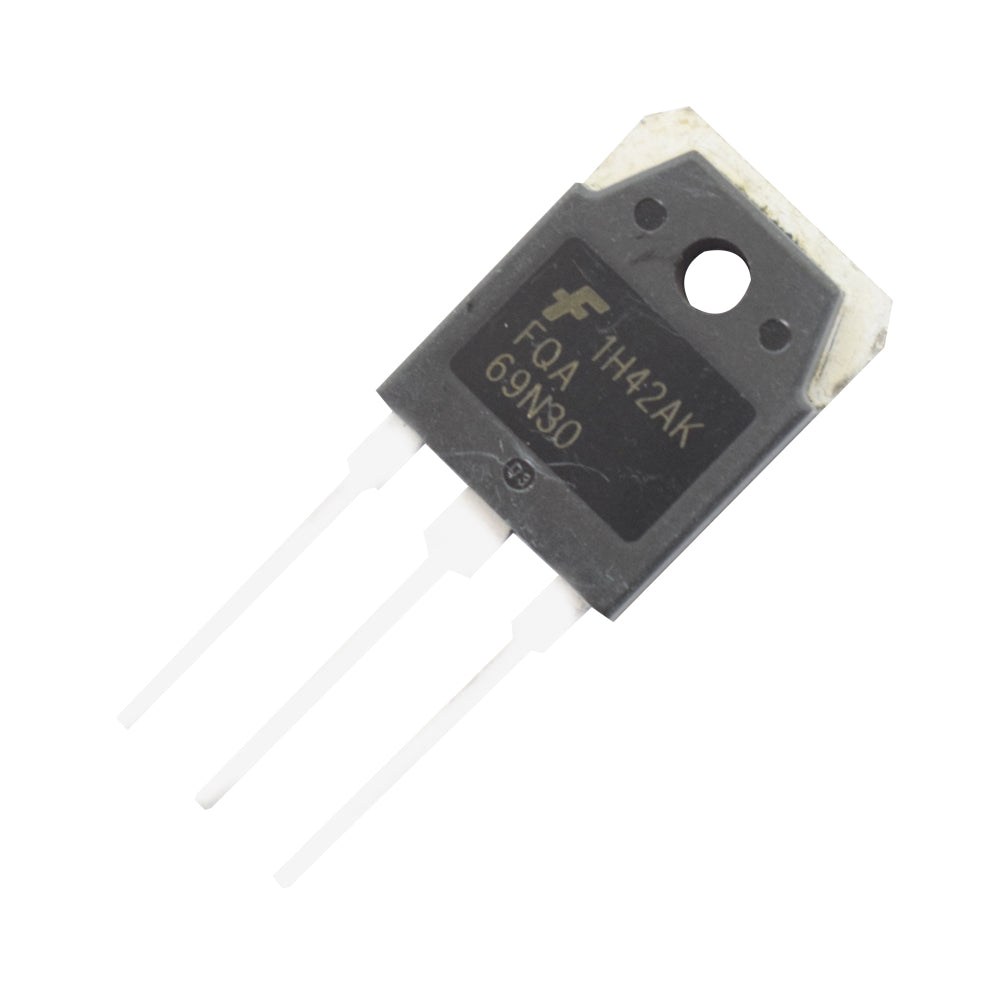

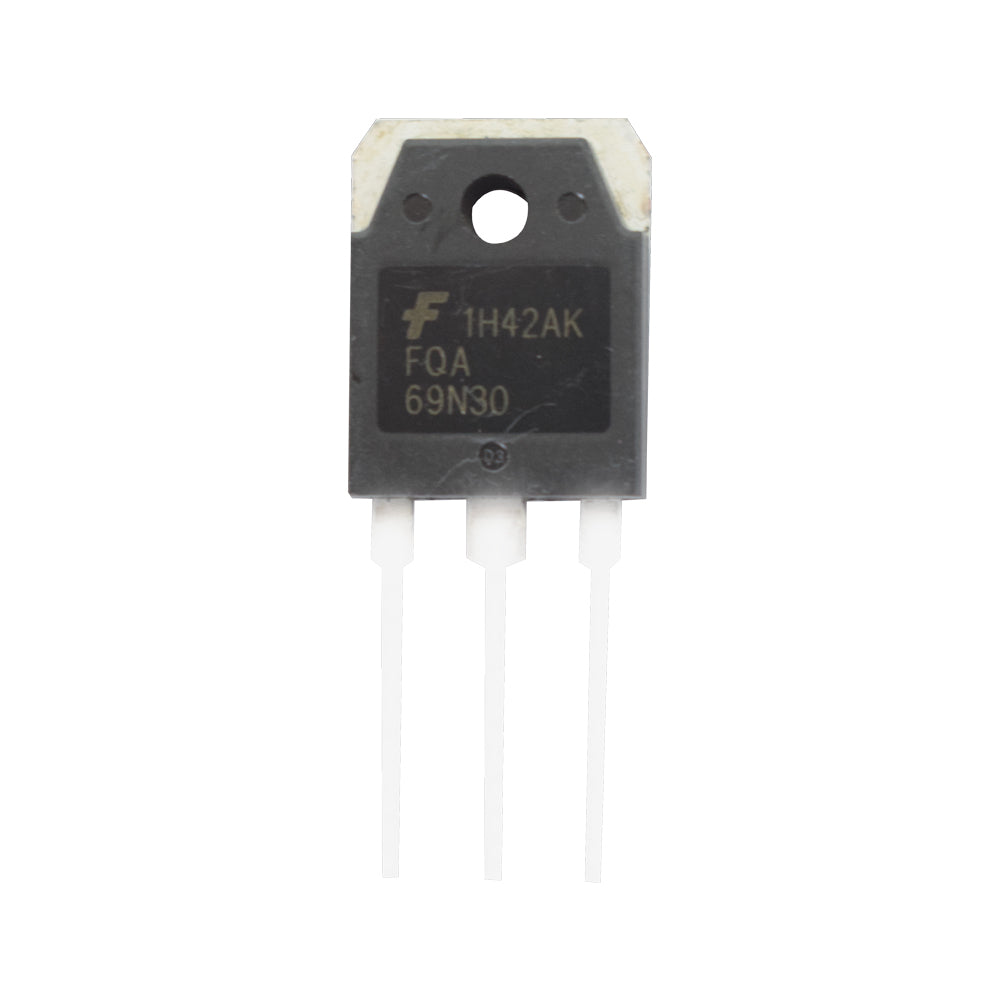

The proprietary planar stripe and DMOS technology of Fairchild Semiconductor is used to manufacture this N-Channel enhancement mode power MOSFET. This cutting-edge MOSFET technology has been specifically tailored to provide superior switching performance, high avalanche energy strength, and lower on-state resistance. Switched mode power supplies, active power factor correction (PFC), and electronic lamp ballasts can all use these gadgets.
Features
-
Its Operating voltage is 300V
-
Its forward current is 43.5A
-
Its low gate charge is 120nC
-
Highly reliable
-
Small in size
Specification
| Model | FQA69N30 |
| Type | MOSFET |
| Brand | Fairchild |
| Package | TO-3PN |
| No of leads | 3 |
| Gate source voltage | 30V |
| Power dissipation | 310W |
| Drain source voltage | 300V |
| Country of Origin | China |
