Description

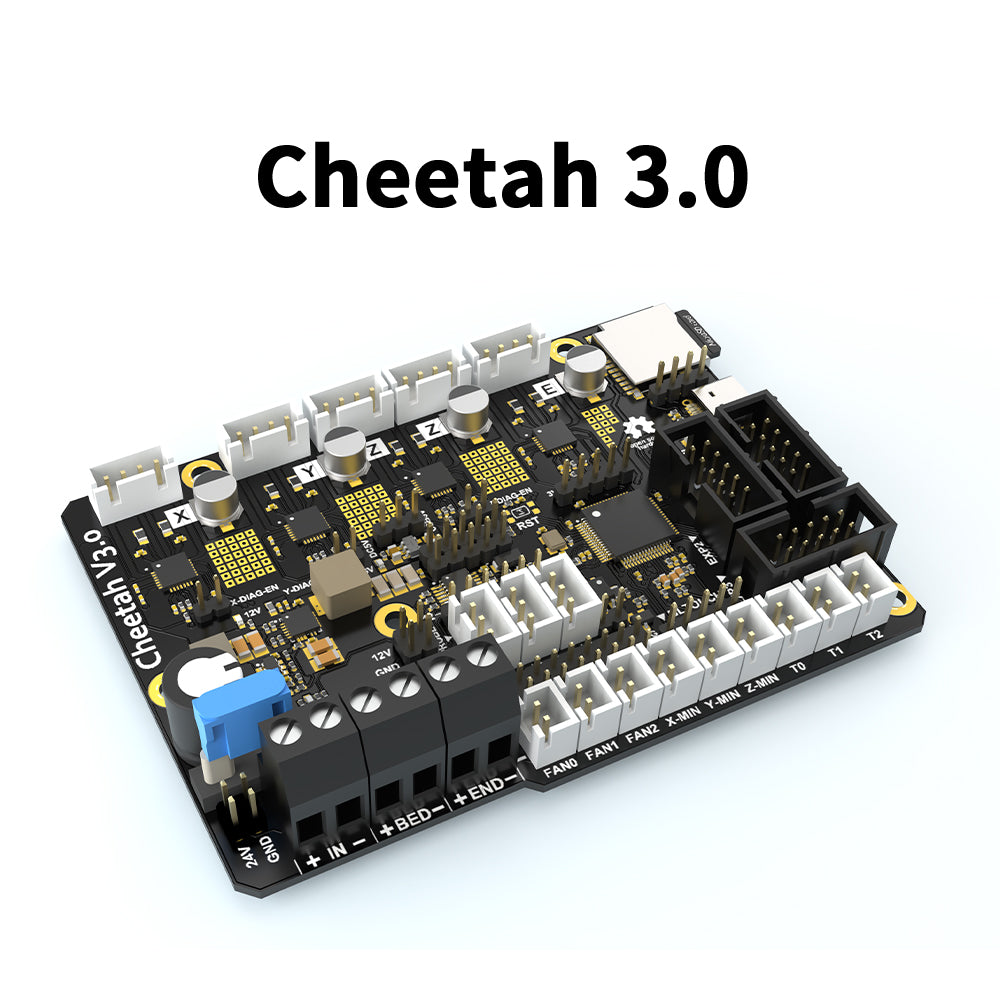

FYSETC Cheetah V3.0 STM32F446 MCU motherboard for Voron
Onboard CANBUS Circuit | Supports 5V 4A Max
Features：
- Compact size: 101.5mm x 72mm
- Compatible with the Creatlity ender 3/ender5 motherboard size
- Fully integrated all in one solution: STM32F446 MCU (Run Marlin 2.0/Klipper)
- 4X TMC2209 stepper drivers, Support sensor-less homing
- UNIVERSAL POWER: 24V to 12V/2A DC-DC for fans
- Integrated high precision power regulators (DC/DC): 5V 4A Max and 3.3V 800mA Max LDO
- 12V & 24V power pin out
- Onboard TF card socket
- EXP3 for 12864 display panel (Creality 12864 panel or FYSETC Generic12864)
- EXP1&EXP2 RepRapDiscount SmartController compatible pin header on board
- Onboard 5V WS2812 RGB control
- Onboard CANBUS Circuit
- 5-Pin Bltouch Interface（Share IO with Probe and Z-Min）
- SD card & USB upload support
- Car fuses（15A） for main power input
- Indicates all the name of PINS on the bottom
- Up to 3 ways PWM fans (5/12/24 Optional)
- Reliable PCB: Four Layers, TG155 FR4, Plug Hole, Immersion Gold
