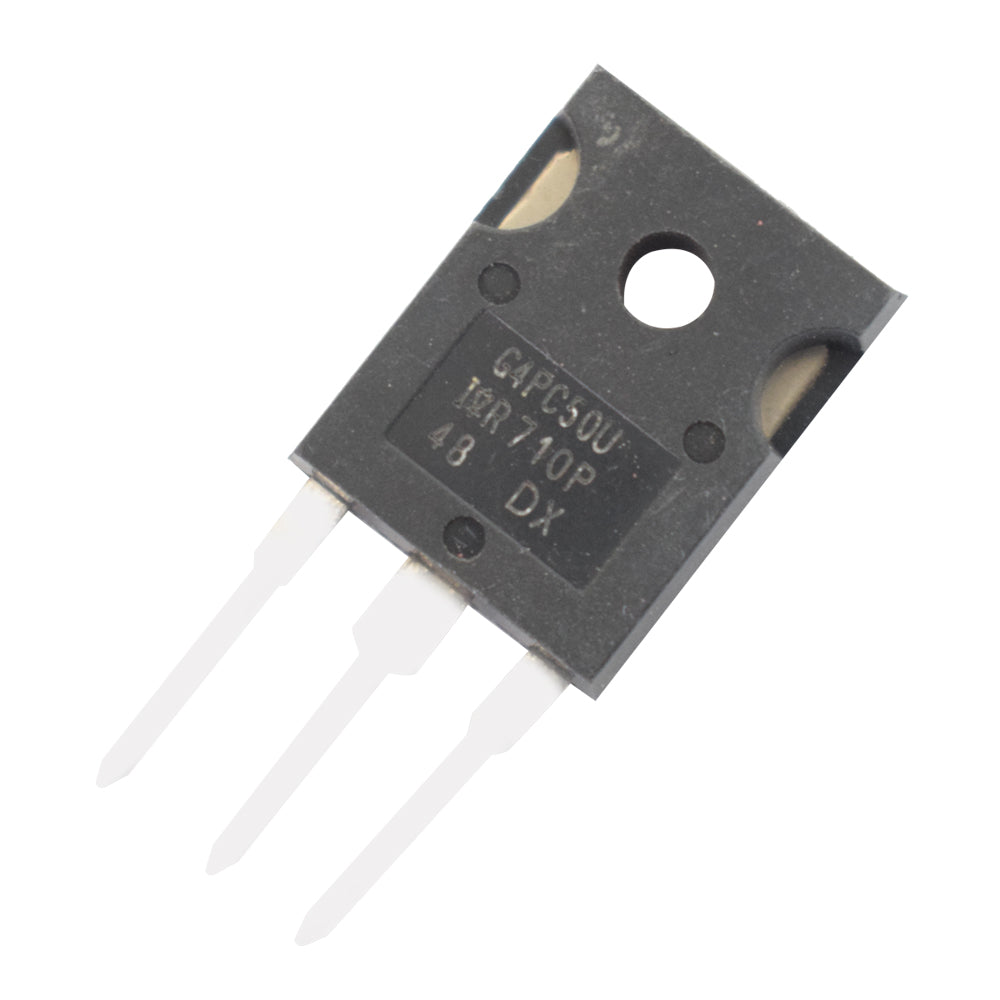

Description
G4PC50U is an IGBT MOSFET which is mostly known for its ultrafast feature.  Its operating current is 27A, and the voltage is 600V. It has a soft recovery time just because of this feature; it performs fast switching operations. Its primarily used in  SMPS, UPS, inverters and other general switching applications.
Features:
- Fast Switching Speed
- 100% Avalanche Tested
-
 UltraFast: Optimized for high operating frequencies 8-40 kHz
-
in hard switching, >200kHz in resonant mode
-
Generation 4 IGBT design provides tighter parameter distribution and higher  efficiency than Generation 3
-
 Industry-standard TO-247AC package
- It has a small size
- It's not too costly
- Highly efficient
Specifications:
| Model | G4PC50U  |
| Type | MOSFET |
| Package | TO-247AC |
| Brand | International Rectifier |
|  Voltage | 600V  |
| Collector current | 27A |
| Total power dissipation | 200W |
| Lead soldering temperature | 300 Degree centigrade |
| Operating and Storage Temperature Range | -55°C TO 150°C |
| Country of Origin | China |
