Description

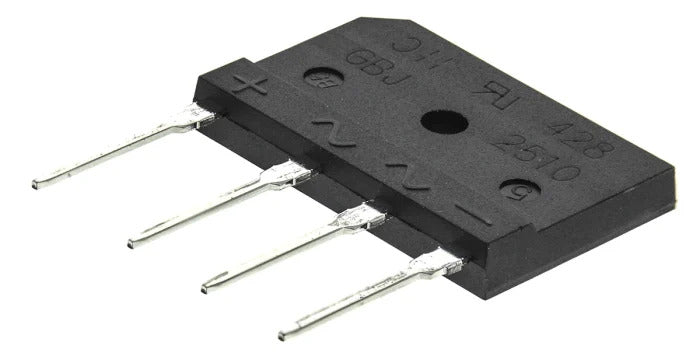

The GBJ2510 is a Single-Phase Bridge Rectifier. The maximum input AC RMS voltage of this IC is 700V hence can be used for a broad range of applications. The maximum average current this IC can handle is around 25A. This IC has a low forward voltage drop of 1V. It has high efficiency and a surge current capability of 350 A. If you are looking for a compact IC for rectification application this can be a good choice. This single phase bridge rectifier is mainly used in charger circuits , uninterruptible power supply , led and lcd TVs, audio amplifier and radios.
Features
- Glass Passivated Die Construction
- Low Reverse Leakage Current
- Surge Overload Rating to 350A Peak
- Ideal for Printed Circuit Board Applications
- Lead Free Finish, RoHS Compliant
SPECIFICATION
| Model | GBJ2510 |
| Type | Bridge Rectifier Diode |
| Working Peak Reverse Voltage | 1000 V |
| RMS Reverse Voltage V(RMS) | 700 V |
| Average Forward Rectified Output Current | 25A |
| Peak Reverse Current at 25°C | 10µA |
| Operating and Storage Temperature Range | -40°C TO 150°C |
| Country of Origin | China |
