Description

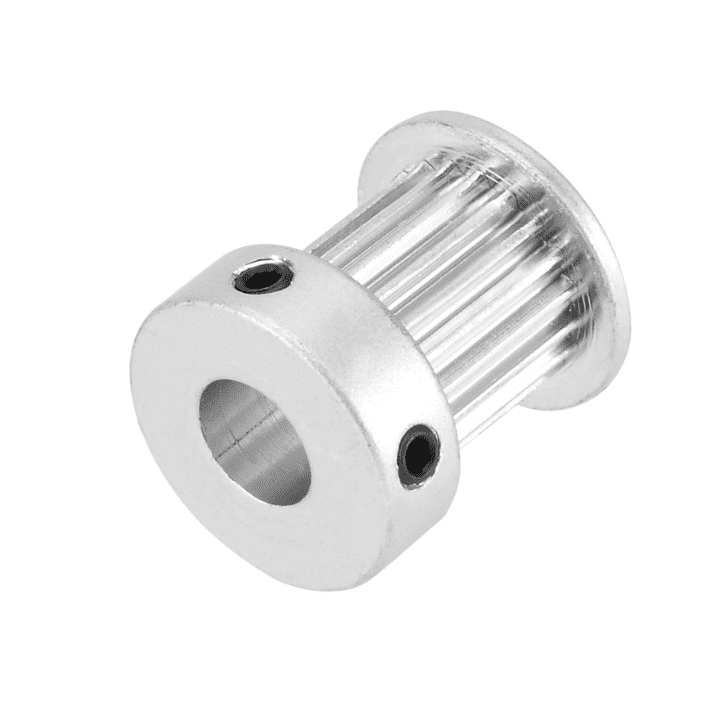

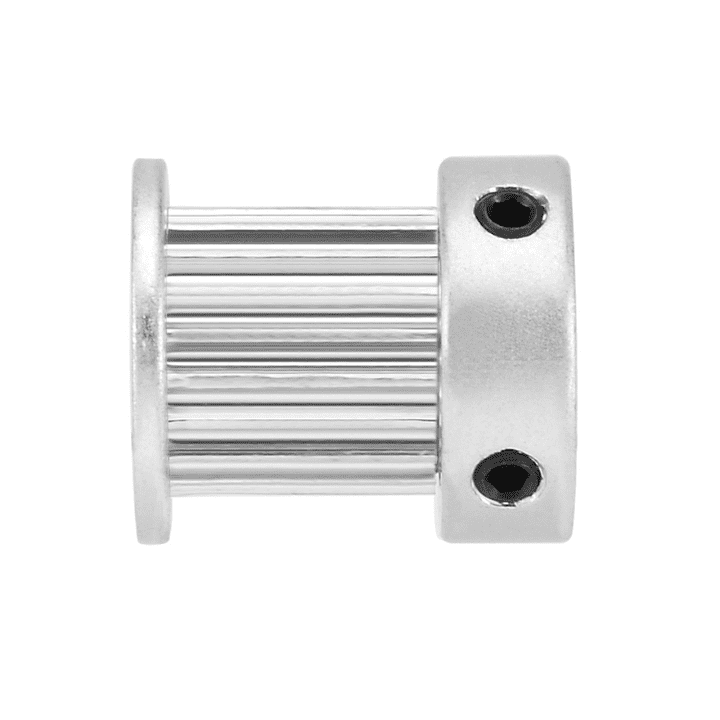

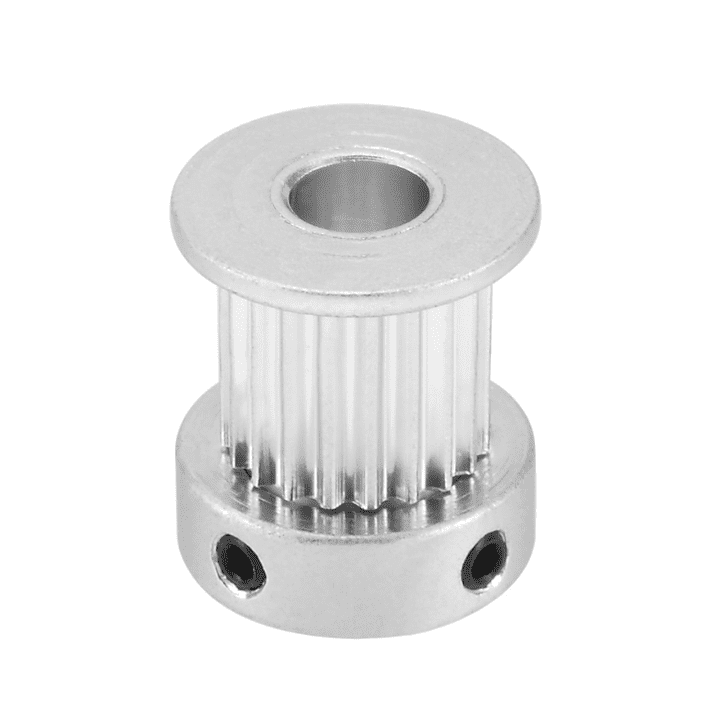

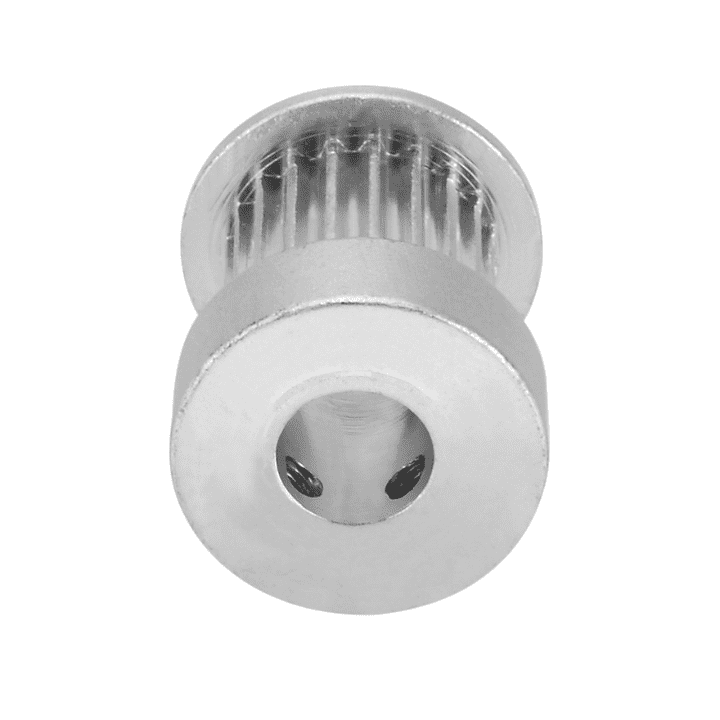

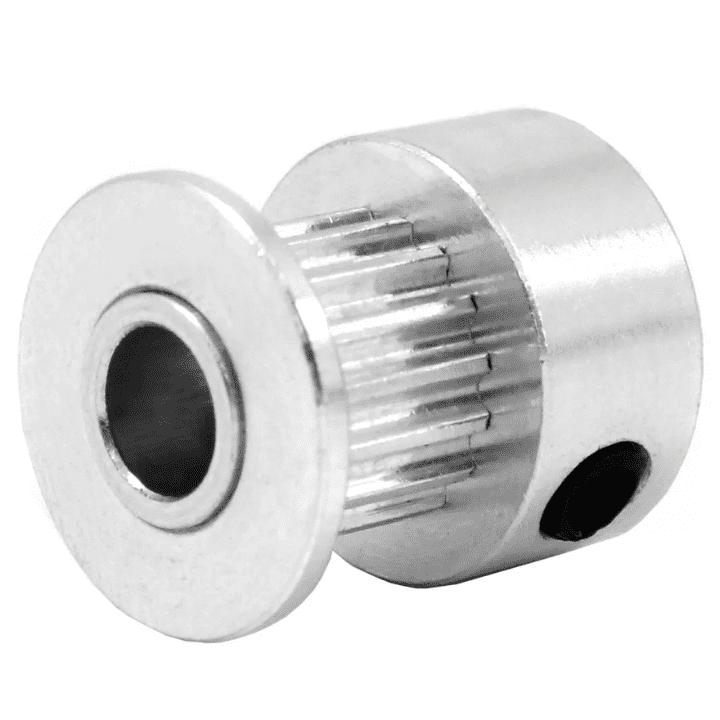

GT2-6mm Belt Width 16 Teeth 4mm Bore Timing Pulley
This is GT2-6mm Belt Width 16 Teeth 4mm Bore Timing Pulley with 16 Teeth, 4mm bore diameter. Aluminum 16T GT2 timing pulley has a high-quality shiny surface appearance and robust construction, longer working life. The rounded teeth of this tooth and belt are engaged together longer providing a smoother transition between teeth, good performance for 3D printers. Applications include a 3D printer, CNC and other robotics with timing belt pulley, GT2 timing belt pulley system especially suited for linear movement and positioning, and it’s good for GT2 6mm Width Belt.
Applications:
- Used in 3D Printers
- Can be used in CNC Machines
- Robotics
Package Includes:
- 1 x GT2-6mm Belt Width 16 Teeth 4mm Bore Timing Pulley
Specifications:
| Material |
Aluminum |
| Bore Diameter (B)(mm) |
4 |
| Outer Diameter (OD)(mm) |
13 |
| Compatible With |
M3x3 |
| No. of teeth |
16 |
| Length (mm) |
14 |
| Weight (gm) |
5 |
