Description

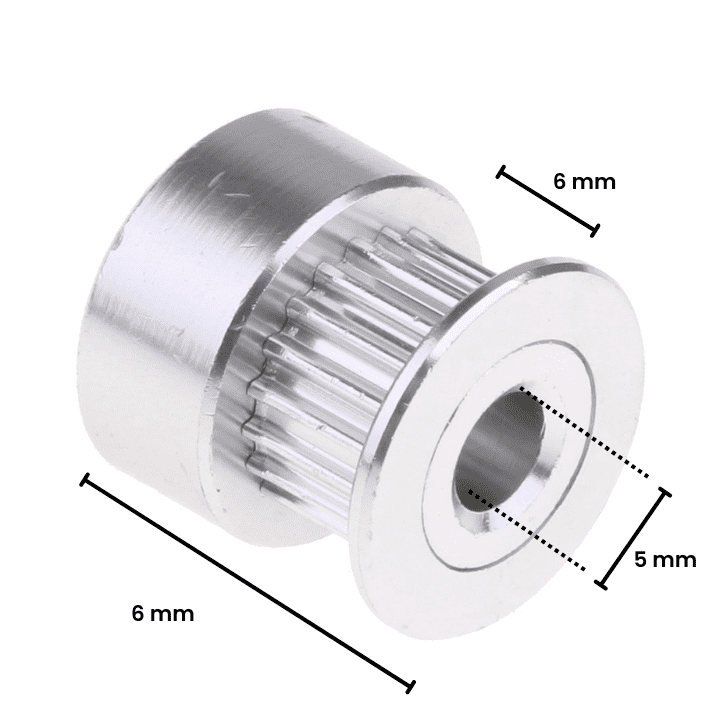

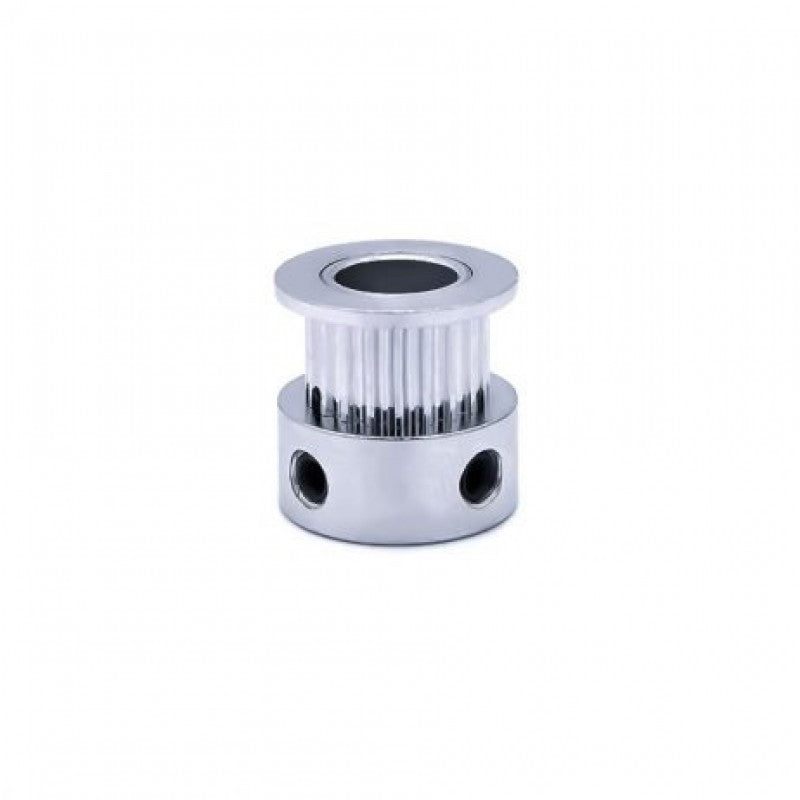

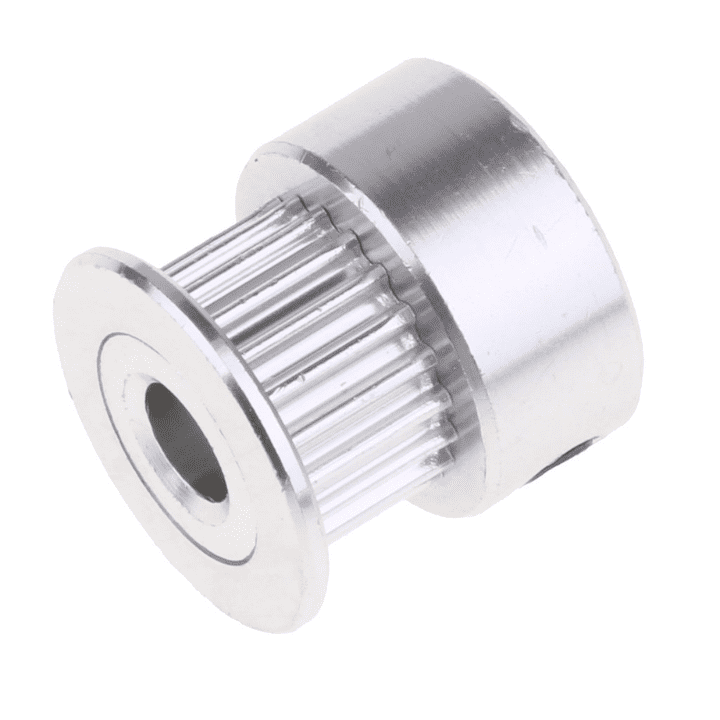

GT2 6mm Belt Width 20 Teeth 5mm Bore Timing Pulley
This is GT2-6mm Belt Width 20Teeth 5mm Bore Timing Pulley with 20Teeth, 4mm bore diameter. Aluminum 16T GT2 timing pulley has a high-quality shiny surface appearance and robust construction, longer working life. The rounded teeth of this tooth and belt are engaged together longer providing a smoother transition between teeth, good performance for 3D printers. Applications include a 3D printer, CNC, and other robotics with timing belt pulley, GT2 timing belt pulley system especially suited for linear movement and positioning, and its good for GT2 6mm Width Belt.
check out : GT2.5 6mm Belt Width 20 Teeth 5mm Bore Timing Pulley
Package Includes:
- 1 x GT2-6mm Belt Width 20 Teeth 5mm Bore Timing Pulley
- 2 x (M3x3) Grub screws(fitted inside pulley)
Specifications:
| Material |
Aluminum |
| Bore Diameter (B) |
5mm |
| Outer Diameter (OD) |
16mm |
| Compatible With |
M3x3 |
| No. of teeth |
20 |
| Length |
16mm |
| Weight |
12gm |
