GT2-6mm Belt Width 20 Teeth 6.35mm Bore Timing Pulley

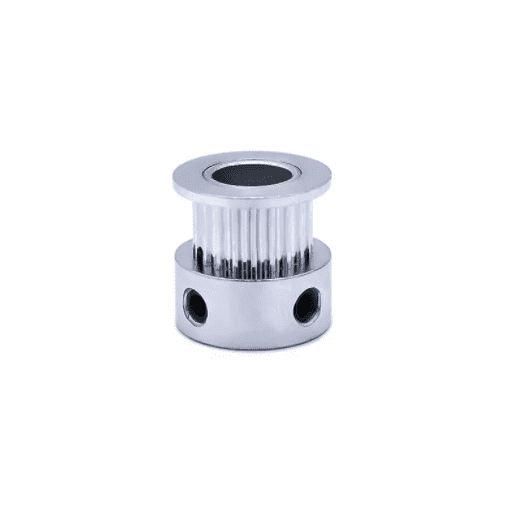

This is an Aluminum GT2 Timing Pulley 20 Tooth 6.35mm Bore For a 6mm Belt. For precise motion control, GT2 belts and pulleys offer excellent precision at a great price. This pulley is meant for use with GT2 6mm wide belts only – MXL belts will slip due to the different tooth profiles.
This pulley has 20 teeth and a 6.35mm inner bore. Two set screws can be used to attach it firmly to any 6.35mm diameter shaft. Full aluminum construction means these are very light and very durable.
check out : GT2-6mm Belt Width 36 Teeth 5mm Bore Timing Pulley
Also check 2GT 20 teeth pulley wheel designed for a 6mm wide belt with a Perlin passive idler pulley wheel bore of 5mm. It is constructed from high-quality aluminum alloy, making it both lightweight and durable. The pulley is intended for precise motion control and is specifically meant for use with GT2 6mm wide belts.
Package Includes :
1 x GT2-6mm Belt Width 20 Teeth 6.35mm Bore Timing Pulley
Specifications:
| Material |
Aluminum |
| Inner Diameter (ID) (mm) |
6.35 |
| Outer Diameter (OD)(mm) |
16 |
| No. of teeth |
20 |
| Width (mm) |
16 |
| Weight (gm) |
6 |
