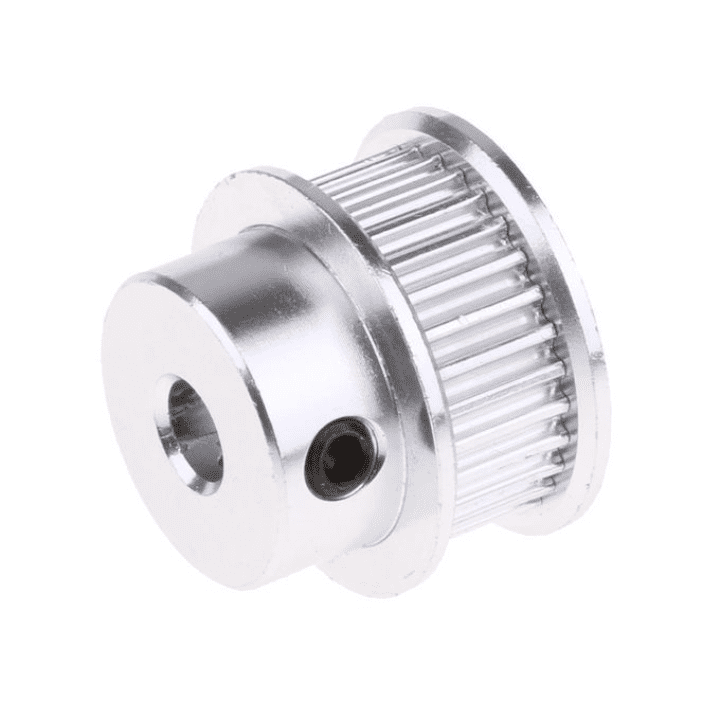

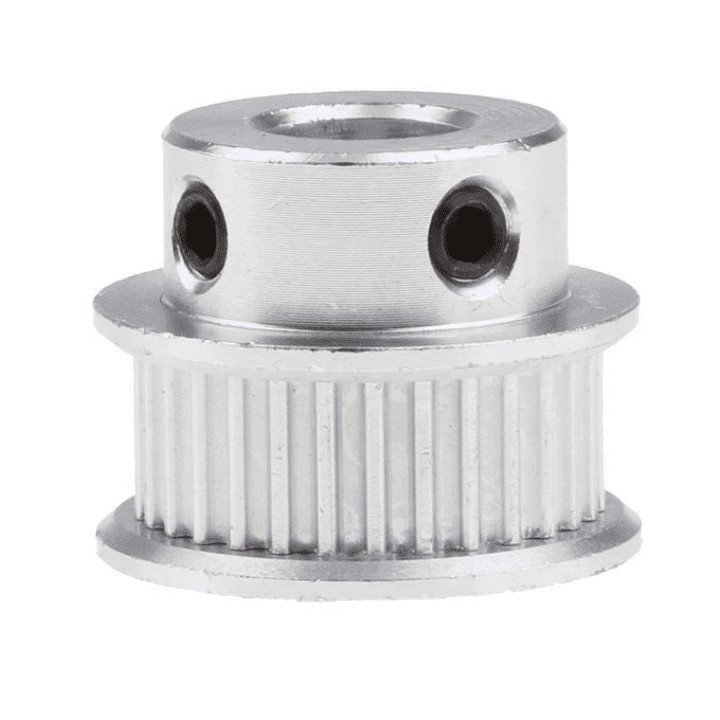

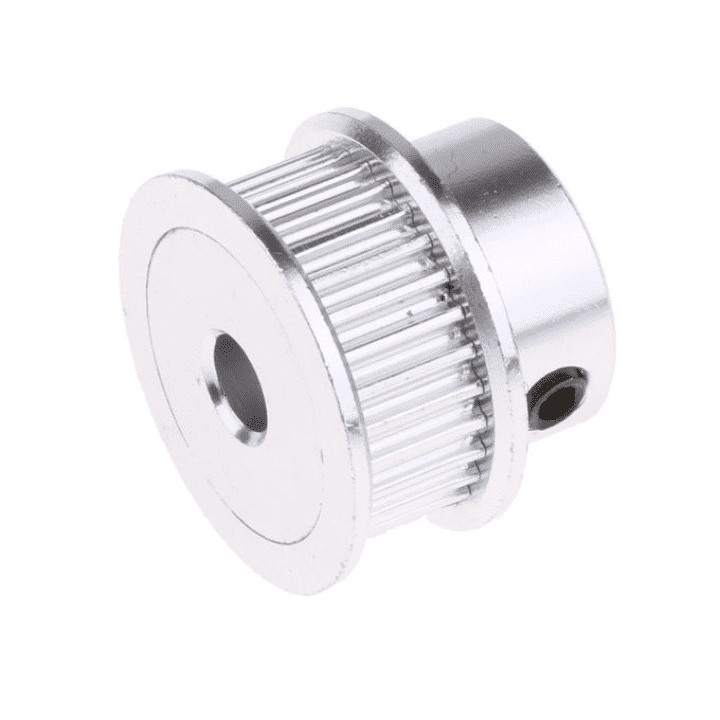

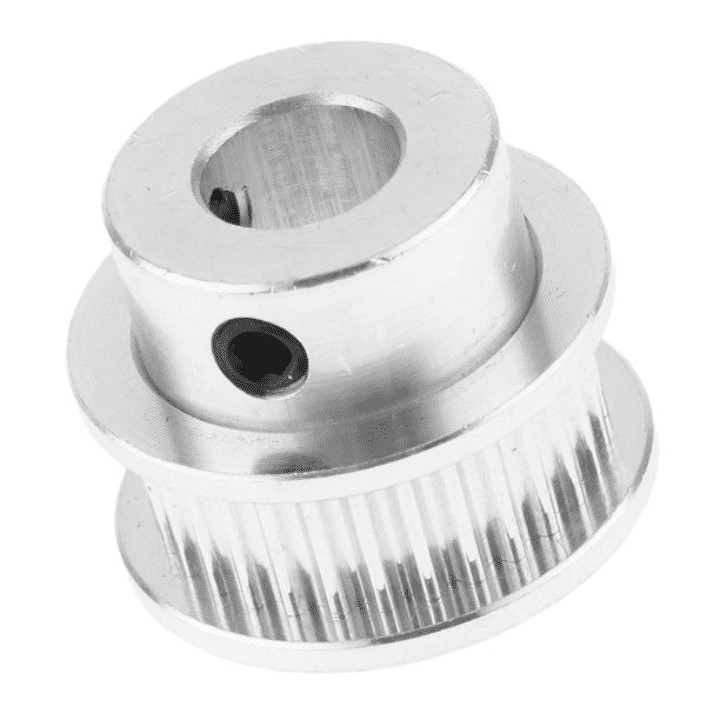

GT2-6mm Belt Width 30 Teeth 5mm Bore Timing Pulley

GT2-6mm Belt Width 30 Teeth 5mm Bore Timing Pulley

GT2-6mm Belt Width 30 Teeth 5mm Bore Timing Pulley is the basic element of the system transmitting power to the moving parts of the machine. Some are made of high-quality aluminum. It will find its application in the construction of 3D printers or similar projects.

Aluminum 30T GT2 timing pulley has high quality shiny surface appearance and robust construction, longer working life. he rounded teeth of this tooth and belt are engaged together longer providing a smoother transition between teeth, good performance for 3D printers. Applications include 3D printer, CNC and other robotics with timing belt pulley, GT2 timing belt pulley system especially suited for linear movement and positioning, and it’s good for GT2 6mm Width Belt.

Features:

• Number of Teeth: 30

• Bore Diameter: 5mm

• Belt Width: 6mm

• Material: High-quality aluminum alloy

• Outer Diameter: 21.4mm

• Surface Treatment: Anodized for durability and corrosion resistance

• Tooth Pitch: 2mm

• Flange: Double flange design to prevent the belt from slipping off

• Compatibility: Designed for use with GT2 timing belts

Applications:

• Widely used in 3D printers and CNC Machines.
• Can be used in DIY machineries

Also check GT2-6mm Belt Width 30 Teeth 8mm Bore Timing Pulley. It is designed with a double flange for synchronizing shaft rotations and is useful in high-reduction drives to improve the wrap-around capabilities of belts

Package Includes:

• 1 x GT2-6mm Belt Width 30 Teeth 5mm Bore Timing Pulley

Specifications:
