Description

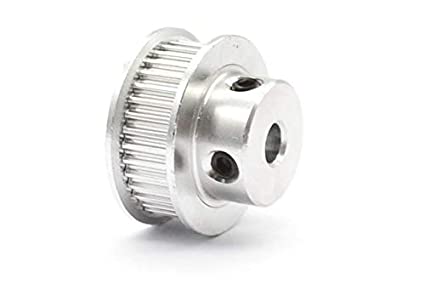

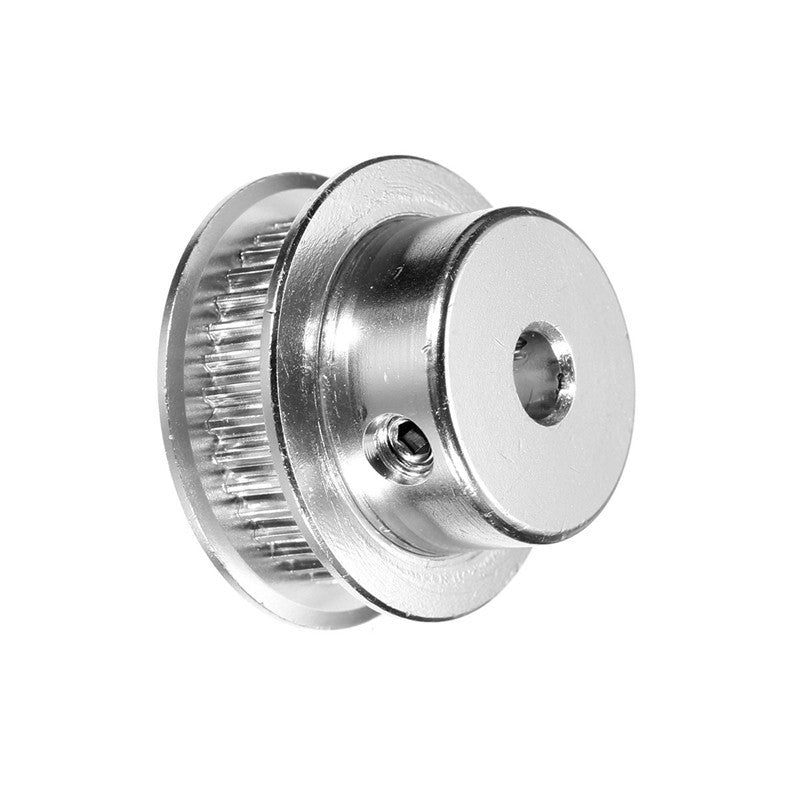

GT2-6mm Belt Width 36 Teeth 5mm Bore Timing Pulley
For precise motion control, GT2 belts and pulleys offer excellent precision at a great price. This pulley is meant for use with GT2 6mm wide belts only - MXL belts will slip due to the different tooth profile. This pulley has 36 teeth, and a 5mm inner bore. One screw can be used to attach it firmly to any 5mm diameter shaft such as our stepper motors. Full aluminum construction means these are very light and very durable. Aluminum GT2 Timing Pulley - 6mm Belt - 36 Tooth - 5mm Bore
check out : GT2-6mm Belt Width 30 Teeth 5mm Bore Timing Pulley
Also check GT2-6mm Belt Width 16 Teeth 4mm Bore Timing Pulley made of high-quality aluminum. It has a 4mm bore diameter, 16 teeth, and is designed for use with a timing belt that is 6mm in width. The pulley is suitable for applications in 3D printers, CNC machines, and other robotics requiring a timing belt pulley system.
Package Includes:
- 1 x GT2-6mm Belt Width 36 Teeth 5mm Bore Timing Pulley
Specifications:
| Material |
Aluminium |
| Inner Diameter (ID) (mm) |
5 |
| Outer Diameter (OD)(mm) |
25.4 |
| Compatible With |
M4x4 |
| No. of teeth |
36 |
| Width (mm) |
15.2 |
| Weight (gm) |
12 |
