Description

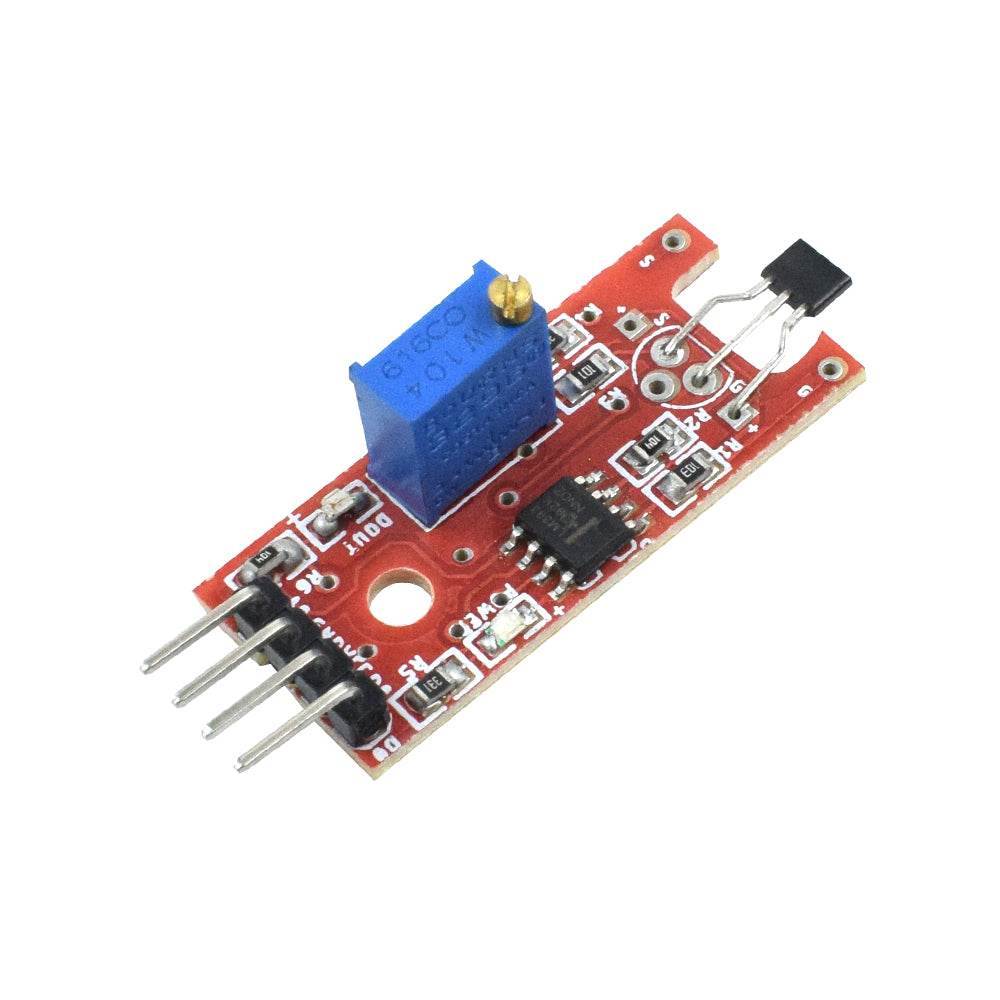

This is a Hall Effect Sensor Module. Its range can be Adjustable with the help of 100K Multiturn Potentiometer. This sensor detects a magnetic field, which is printed as an analogue voltage value. Hall switch integrated circuit based on the hall effect principle, uses semiconductor integrated technology to manufacture magnetic susceptibility of the circuit, it is composed of magnetic sensitive sensor circuit, voltage regulator, hall voltage generator, differential amplifier, Schmitt triggers, temperature compensation, and the open collector output stage circuit, its input for the magnetic induction intensity, and the output is a digital voltage signal. The potentiometer is used to adjust the sensitivity of the sensor.

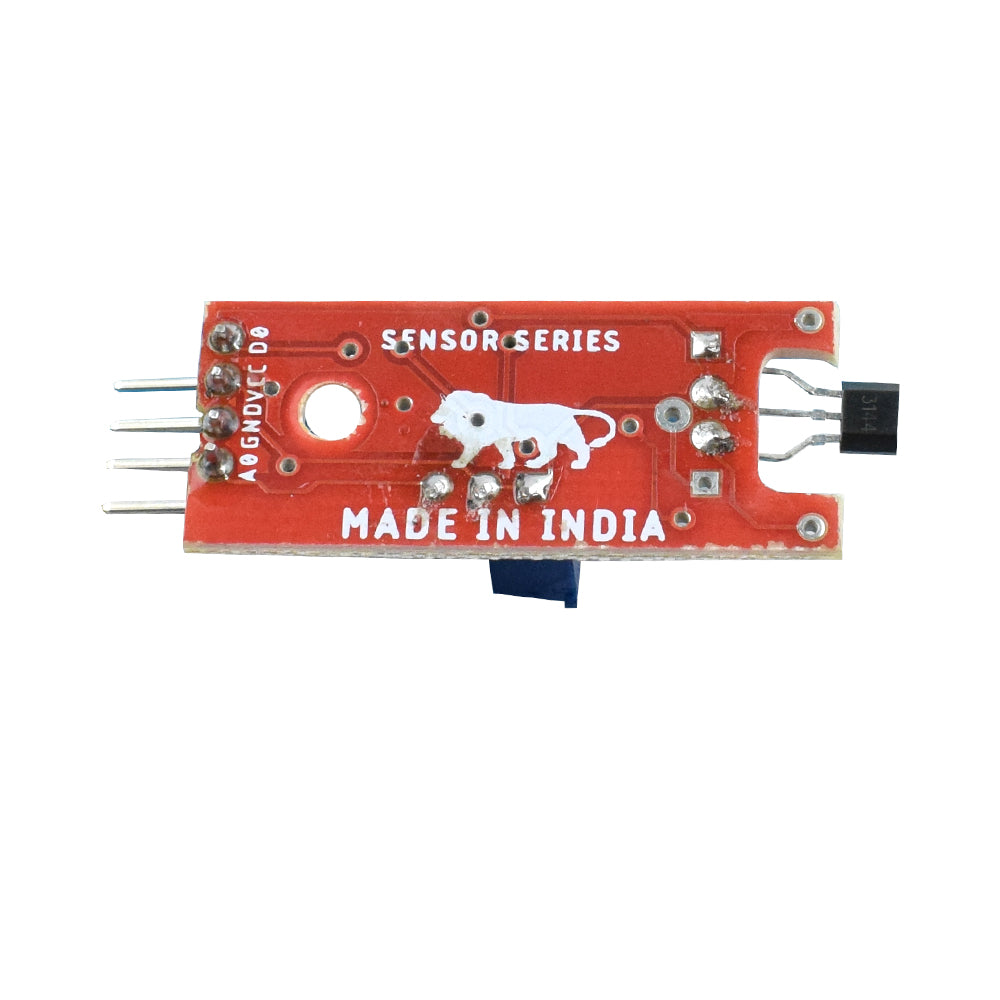

Pin Configuration
| DO | Digital Output Pin |
| VCC | Power Input Pin |
| Ground | Ground Power Pin |
| A0 | Analog Output Pin |
Features
- Use the LM393 Voltage Comparator IC
- Adjustable sensitivity
- Make in India
Applications
- Motor speed measurement
- Object position detection
Specifications
| Product | Hall Effect Sensor Module |
| Type | Magnet Sensor |
| Operating Voltage | 3.3/5V DC |
| No. of Pins | 04 |
| Inbuild IC | LM393 |
| Size | 35mm*15mm |
| Make | Make in India |
| Country of Origin | China |
