Description

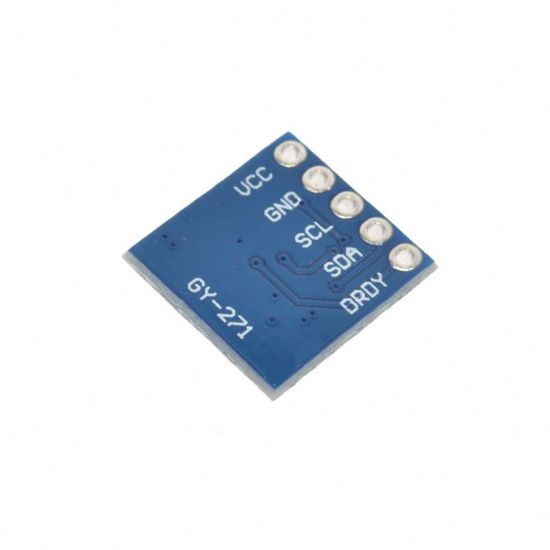

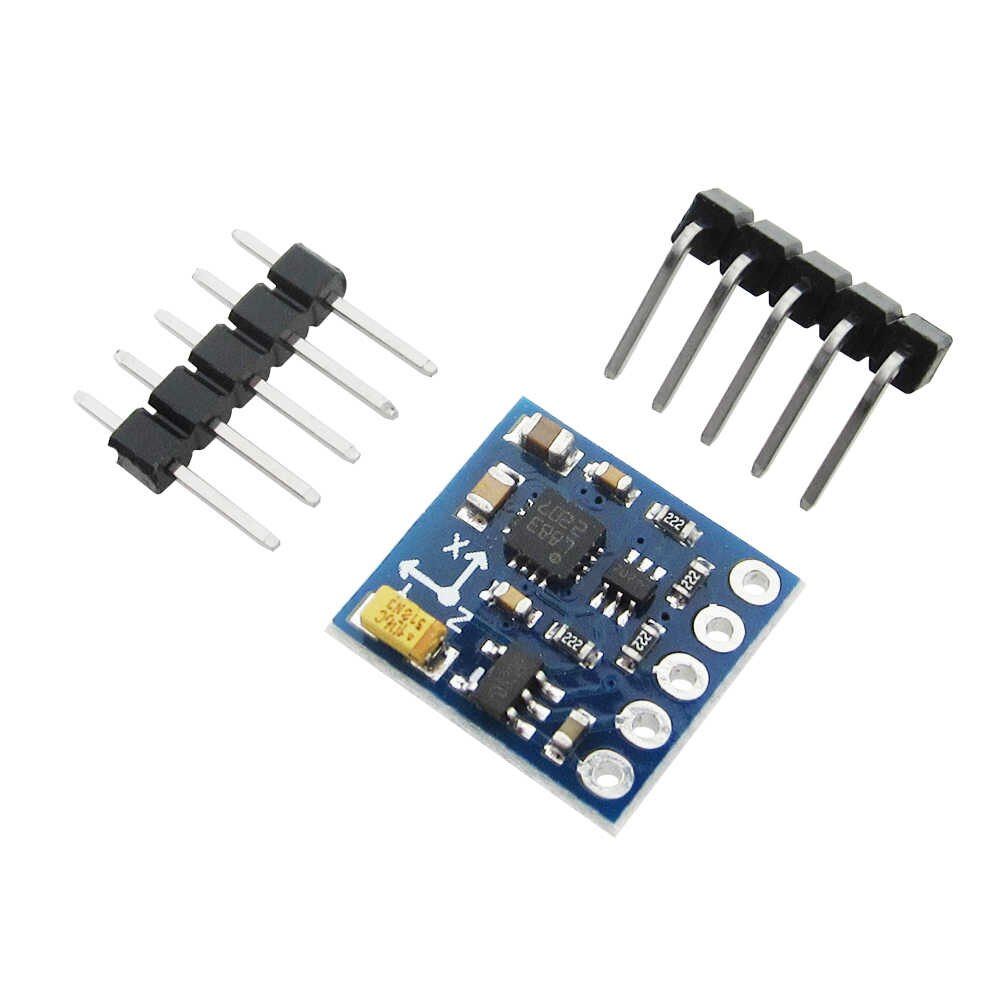

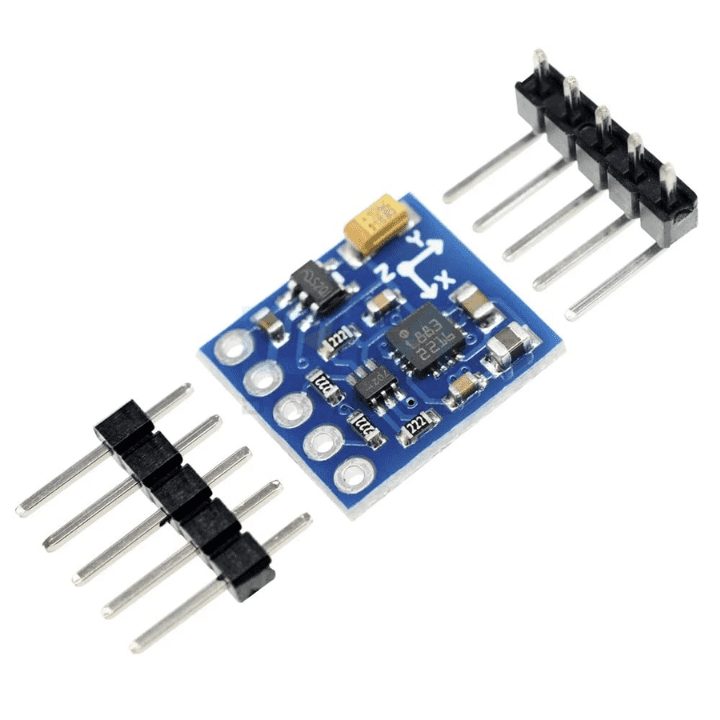

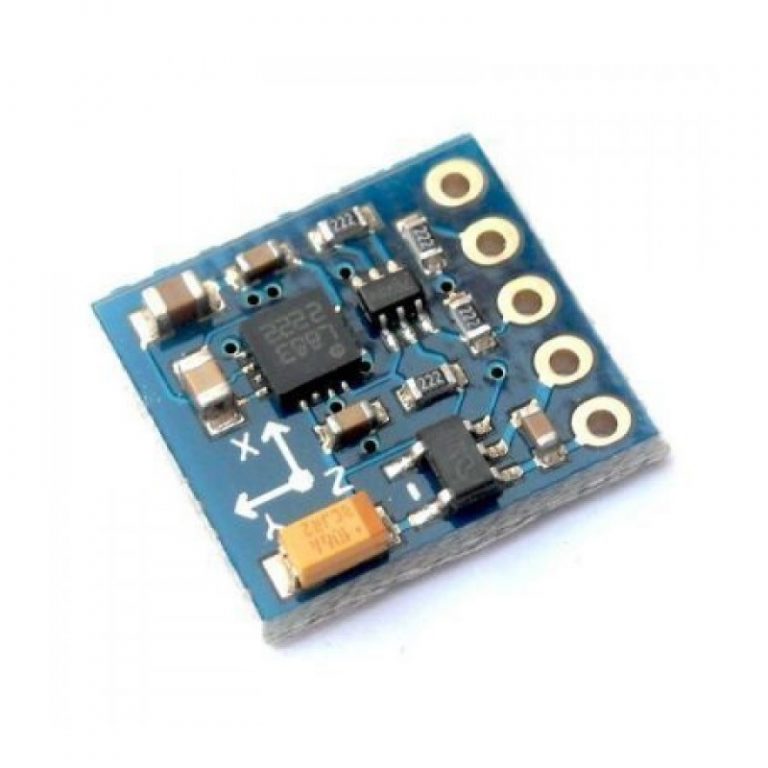

HMC5883L Triple Axis Compass Module Magnetic Field Sensor
The HMC5883L Triple Axis Compass is a low power 3-axis Magnetometer / Digital Compass Module based on HMC5883L. The Board breaks out the I2C communication interface and comes with an onboard voltage regulator and can be powered from a 5V supply. It also has pull up resistors on the I2C line. The Compass Module is designed for low-field magnetic sensing with a digital interface and perfect to give precise heading information. This compact sensor fits into small projects such as UAVs and robot navigation systems.
The sensor converts any magnetic field to a differential voltage output on 3 axes. This voltage shift is the raw digital output value, which can then be used to calculate headings or sense magnetic fields coming from different directions.
The module includes a state-of-the-art, high-resolution QMC5883X series magneto-resistive sensor, plus an ASIC containing amplification, automatic degaussing strap drivers, offset cancellation, and a 12-bit ADC that enables 1° to 2° compass heading accuracy. The I2C serial bus allows for easy interface
Package Includes:
- 1 x HMC5883L Triple Axis Compass
Specifications
| Module Type | 3-axis magnetic electronic compass |
| Operating Voltage | 3 -5 V DC |
| Driver Chip | HMC5883L |
| Communication | I2C protocol |
| Measuring range | ± 1.3-8 Gauss |
| Dimensions | 1 x 1 x 1cms |
| Weight | 5 grams |
