XD-621 Induction Touch Switch

XD-621 Induction Touch Switch

The Induction touch switch is an isolated touch sensor switch, applicable to all types of lamps on the medium (such as glass, acrylic, plastic, ceramic, etc.), such as energy-saving lamps, H tubes, LED lamps, and various household appliances.

It has an on-chip active low noise PGA with selectable gain of 3264 and 128. The on-chip power supply regulator for load-cell and ADC analog power supply.

On-chip active low noise PGA with selectable gain of 3264 and 128. On-chip power supply regulator for load-cell and ADC analog power supply.

Installation process:

Note: Before installation, please turn off the main power.

Set a touchpoint in the mirror, the diameter of the contact point should be 9-10mm, first of all, must remove the mercury from the mirror around the point of contact, the size for the removable mercury should be 1.5-2mm;

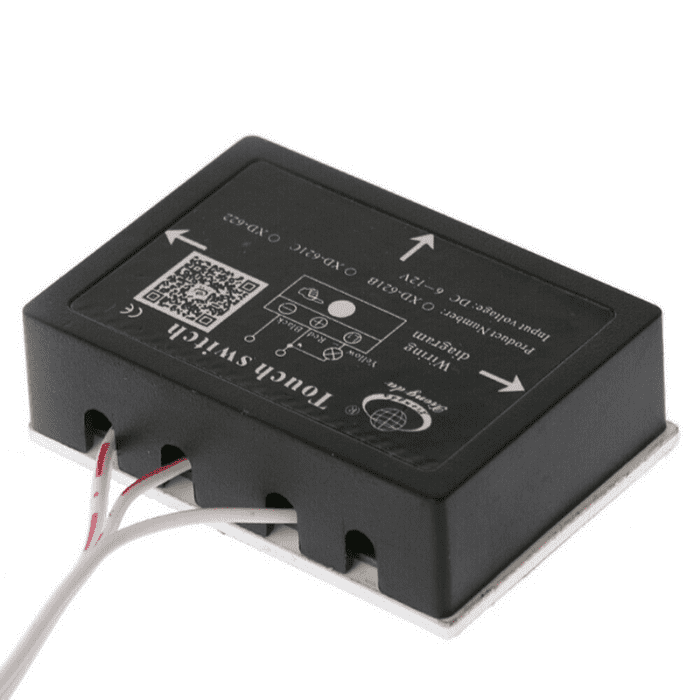

Make a grid in the middle of the touchpoint, there are three lines of the arrow on the cover of the switch, when installed, the three lines of the arrow should align with any of the three lines of the lattice and can touch to control whether after aligning the direction, now remove the paster from the touch plate, and then can install the touch switch on the mirror, after that, you can correct it using other things to avoid falling.

Applications:

• Household appliances
• Energy-saving lamp
• LED lamps

Package Includes:

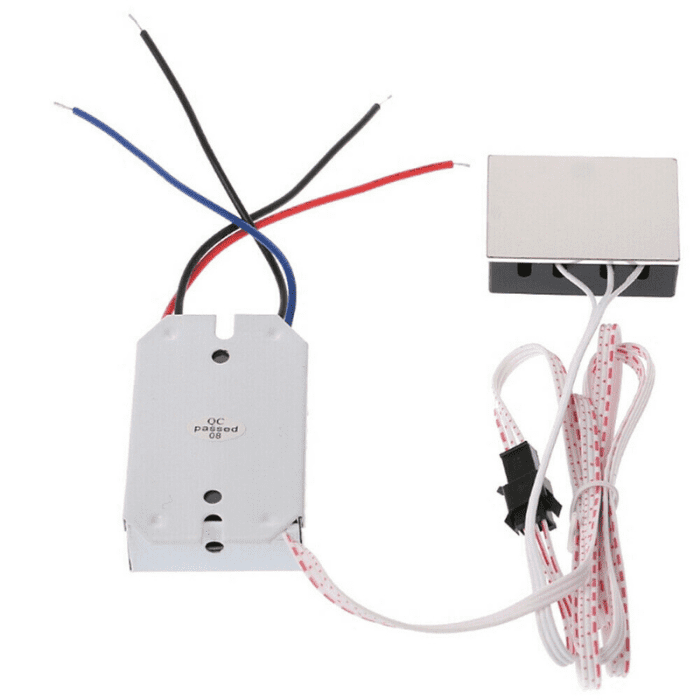

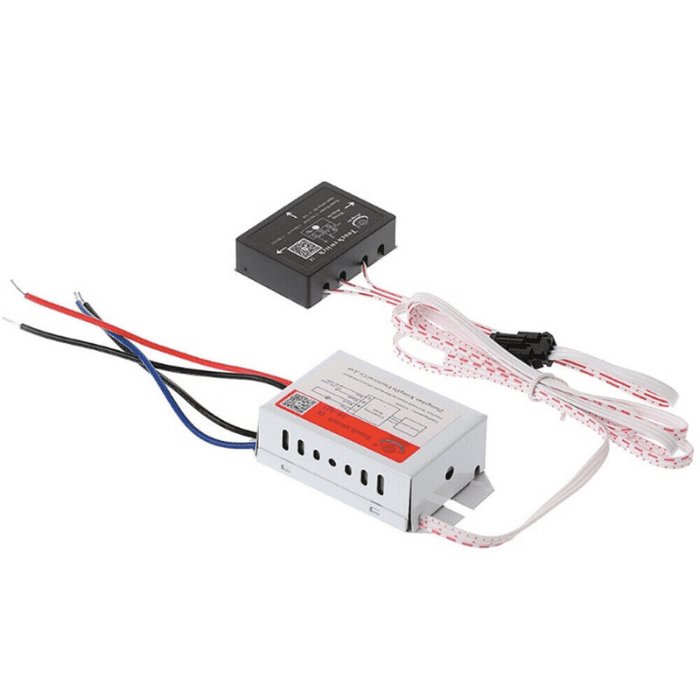

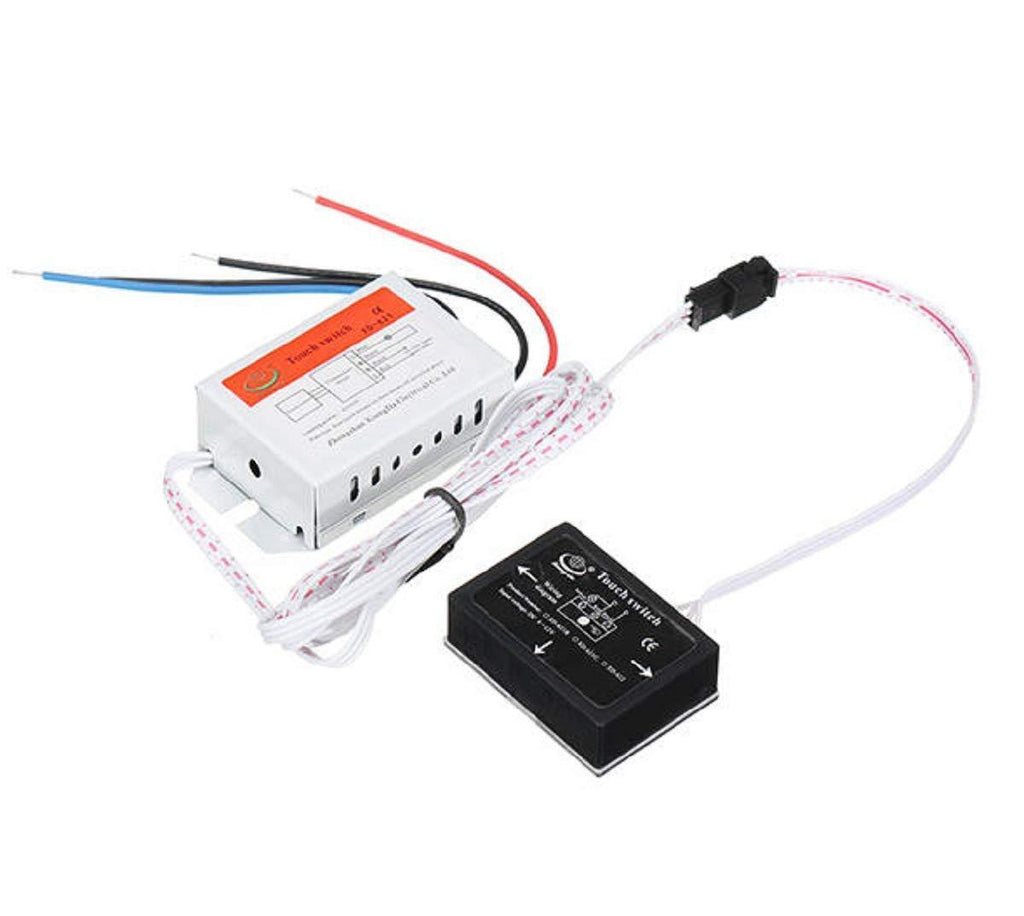

• 1 x Induction Touch Switch Kit

Specifications:
