Description

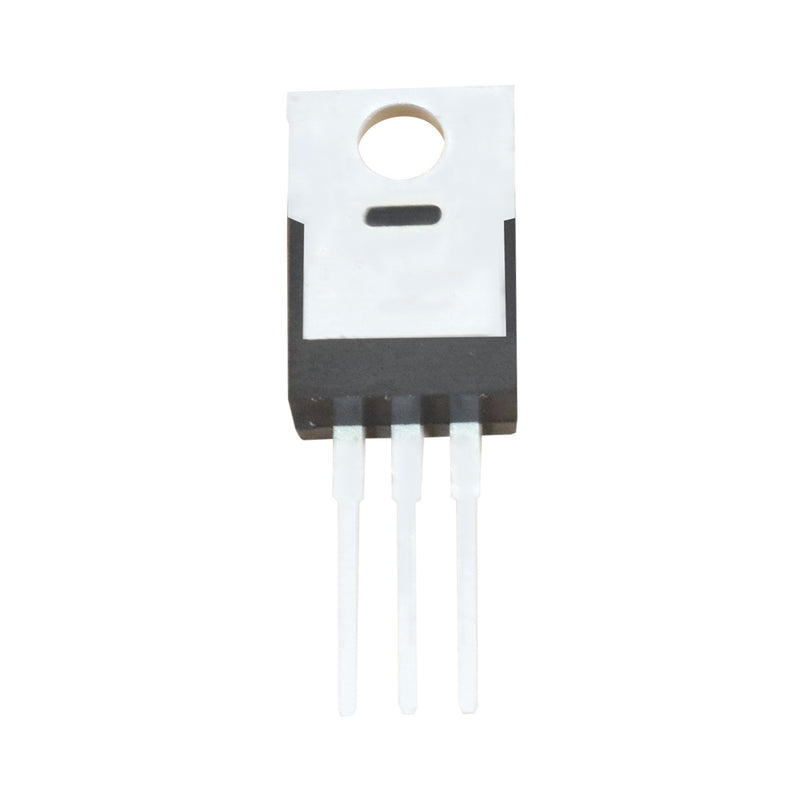

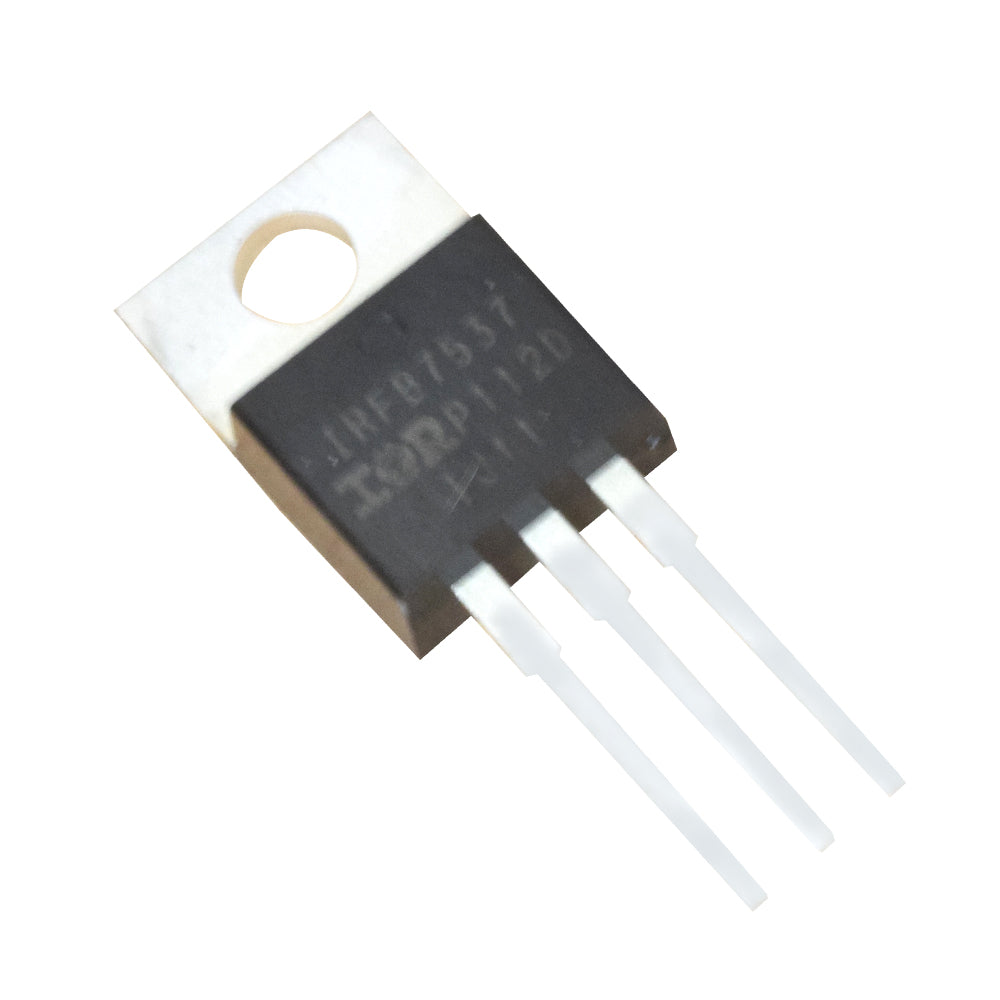

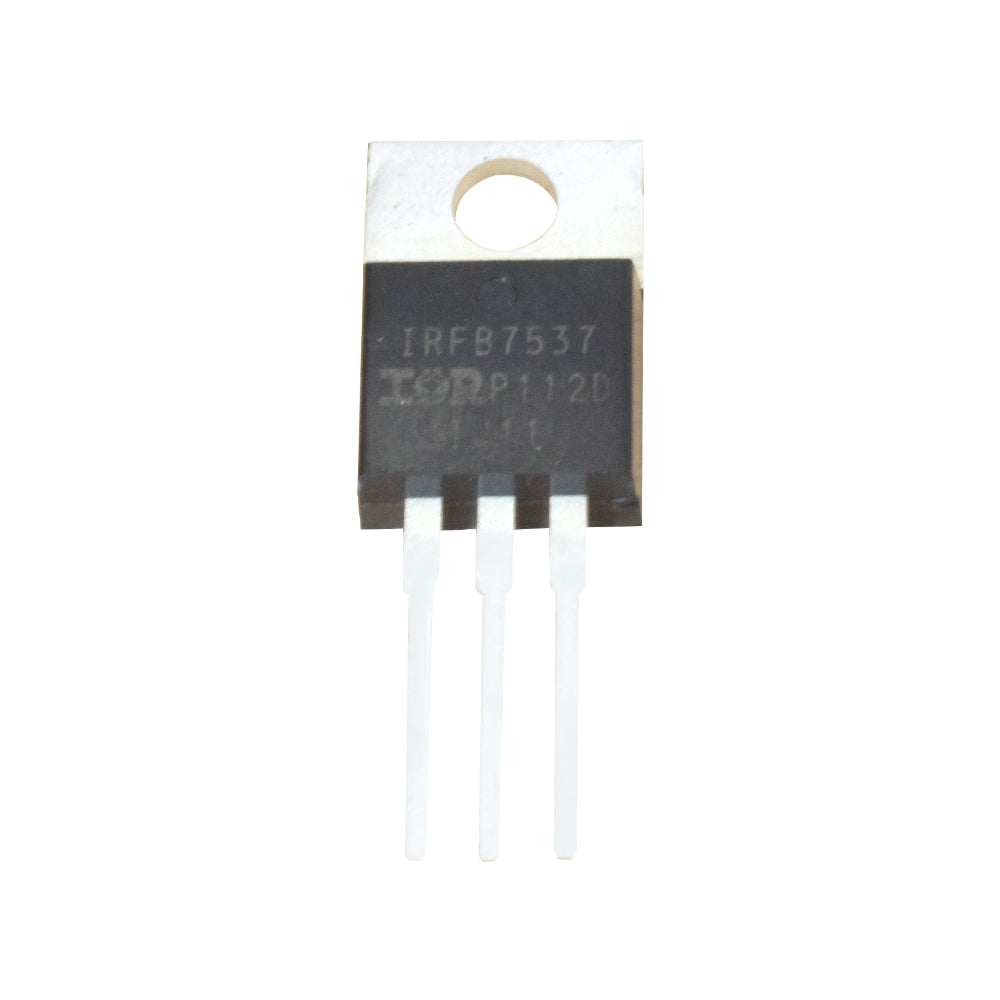

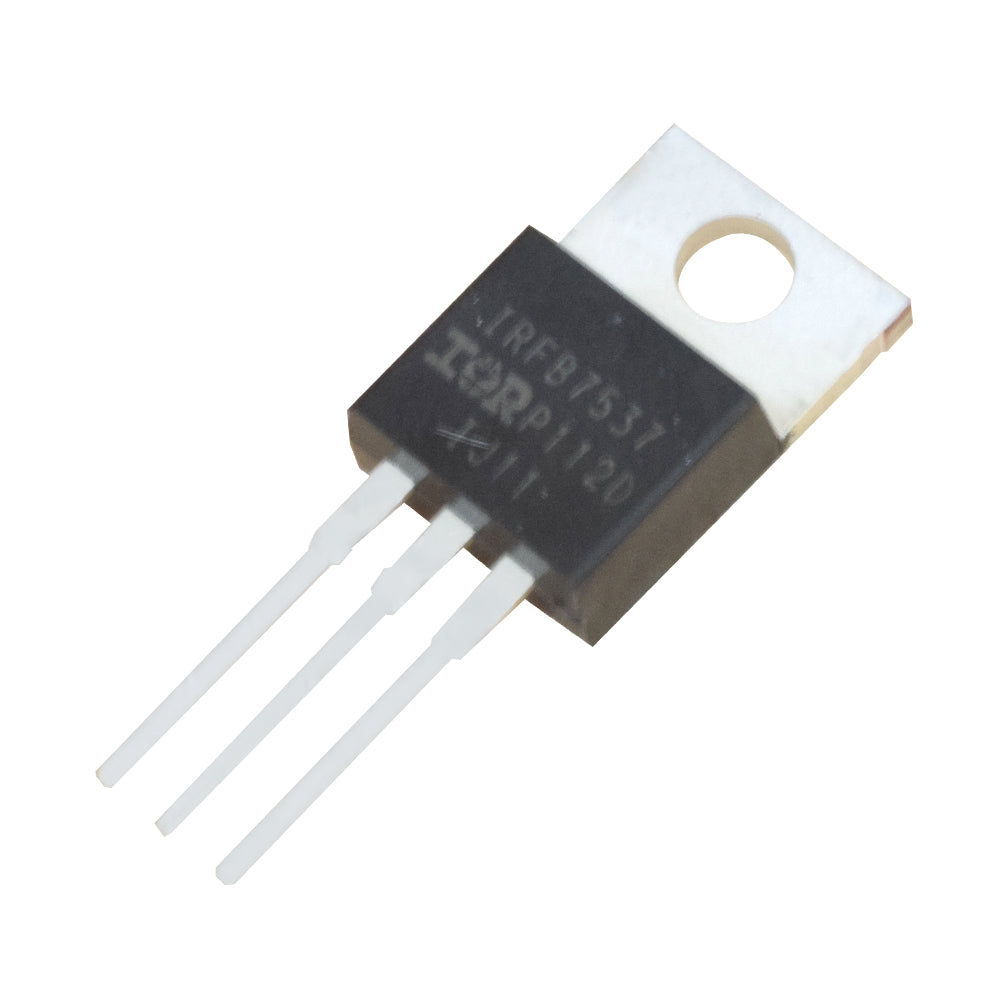

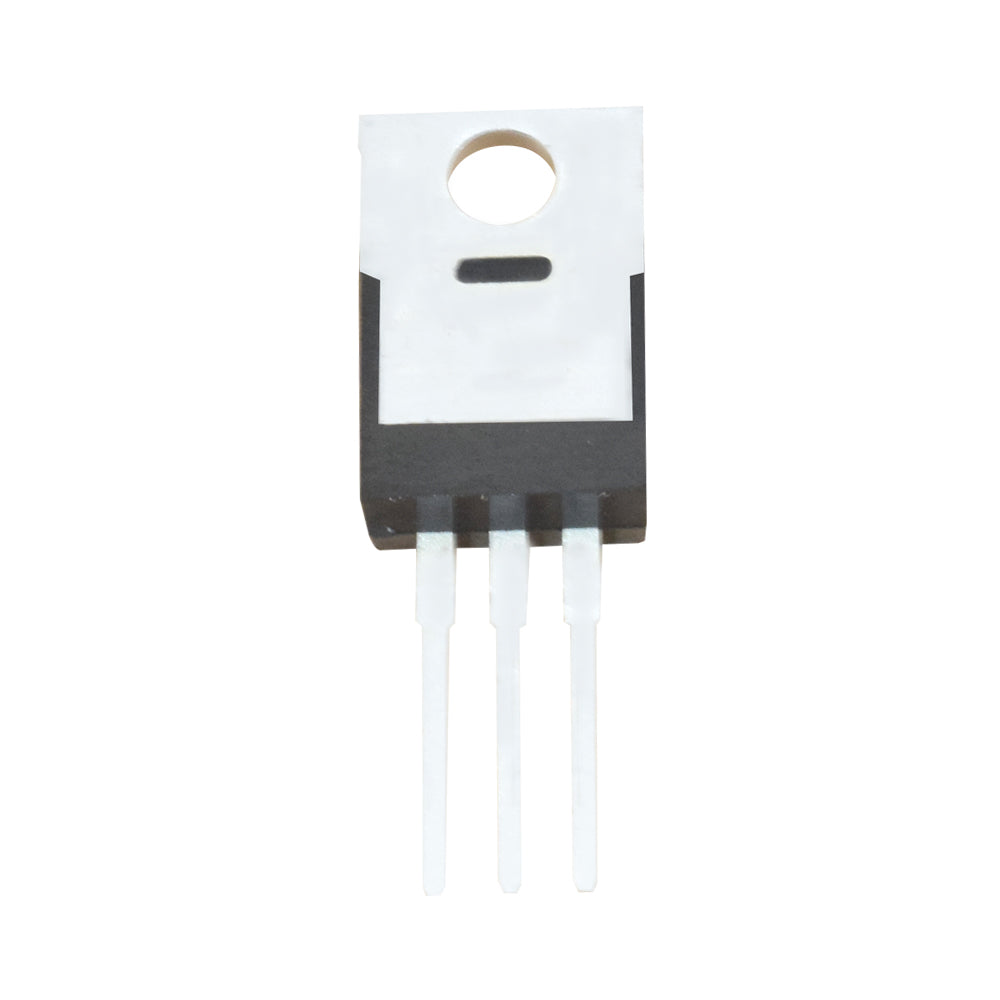

IRFB7537 is a power MOSFET. Its operating voltage is 60V its drain current is 173A. Its maximum power dissipation is 375W. It's a three-terminal device Gate drain and source.
DATASHEET
Applications:
- Brushed Motor drive applications
- BLDC Motor drive applications
- Battery powered circuits
- Half-bridge and full-bridge topologies
- Synchronous rectifier applications
- Resonant mode power supplies
- OR-ing and redundant power switches
- DC/DC and AC/DC converters
- DC/AC Inverters
Features
-
Improved Gate, Avalanche and Dynamic dV/dt
-
Ruggedness
-
Fully Characterized Capacitance and Avalanche
- Lead-Free
- Its VDS is 10V and the drain current is100A at 25 degree centigrade
- Its rise time is 105nS
- Its input capacitance is 14240pF
Specifications
| Model | IRFB7537 |
| Type | MOSFET |
| Package | TO-220AB |
| Single Pulse Avalanche Energy | 760mJ |
| Operating Voltage | 60V |
| Drain current | 173A |
| Total power dissipation | 375W |
| Operating and Storage Temperature Range | -55°C TO 150°C |
| Country of Origin | China |
