Description

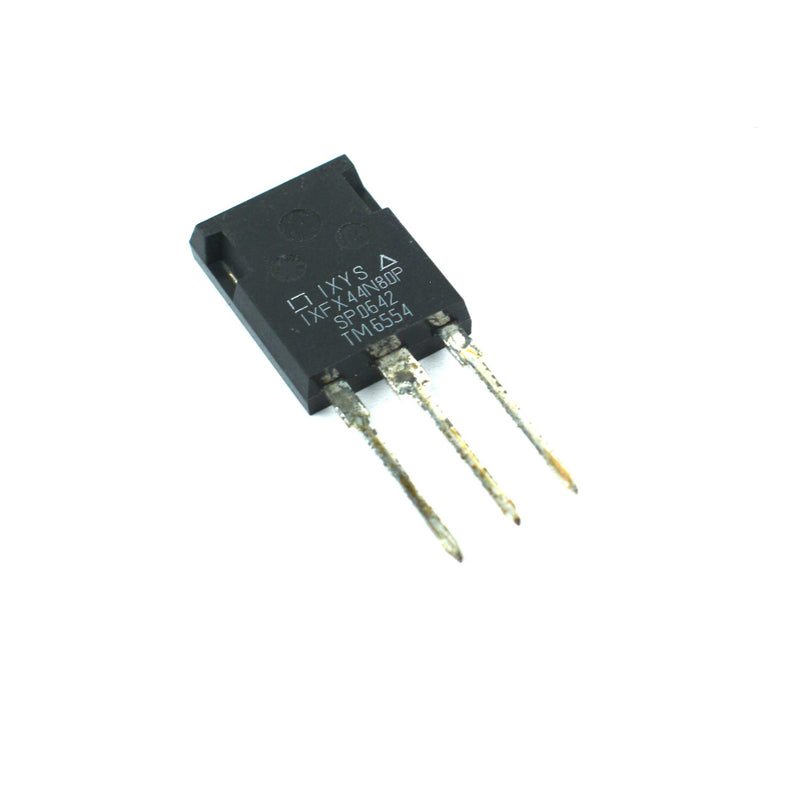

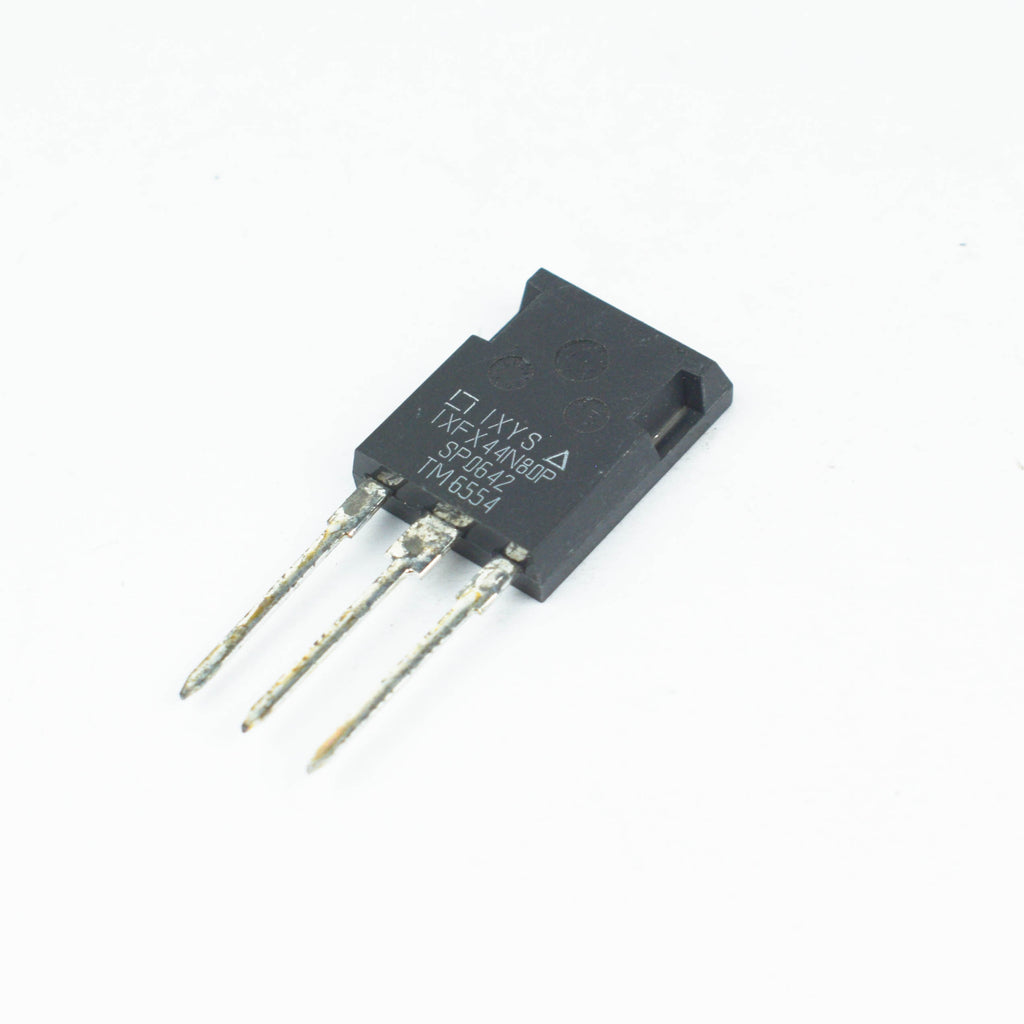

IXYS IXFX44N80P is a three-terminal N-Channel Power MOSFET, It features an avalanche-rated and fast intrinsic diode. Its Voltage rating is 800V, its Current rating is 44A and its Driving voltage is 10V.
Advantages:
- Easy to Mount
- Space Saving
- High Power Density
Features:
- International Standard Packages
- Fast Intrinsic Diode
- Avalanche Rated
- Low Package Inductance
Specification
| Model | IXFX44N80P | |
| Brand |
|
|
| FET Type | N-Channel MOSFET | |
| Drain to Source Voltage (Vdss) | 800V | |
| Continuous drain Current (Id) | 44A | |
| Drive Voltage | 10A | |
| Input Capacitance (Vds) @max | 12000pf @25V | |
| Power Dissipation @max | 1040 watt | |
| Operating Temperature | -55~150 (degree C) | |
| Mounting Type | Through Hole | |
| Country of Origin | China |
