Description

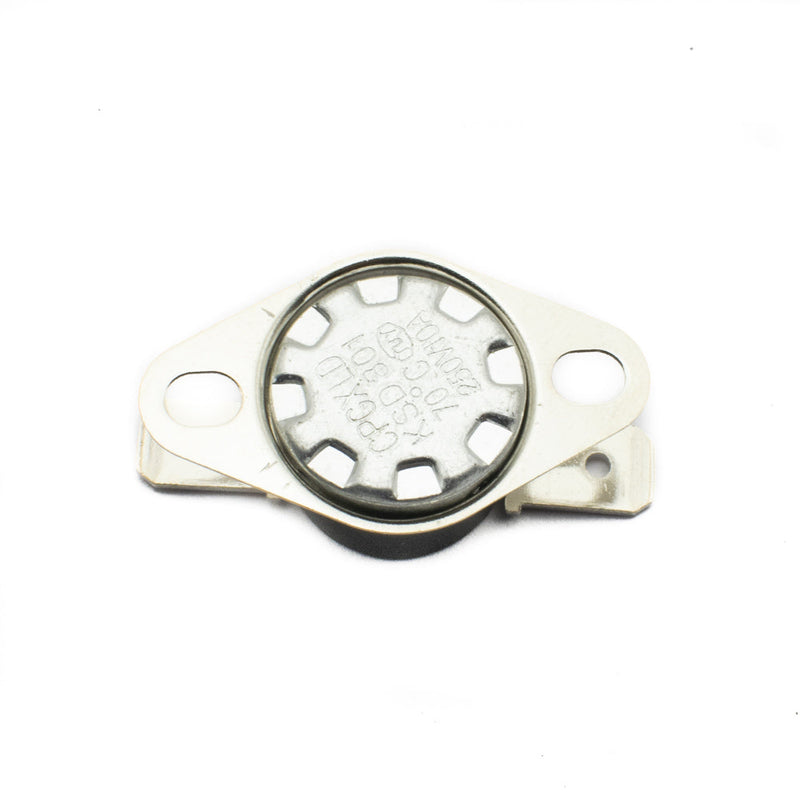

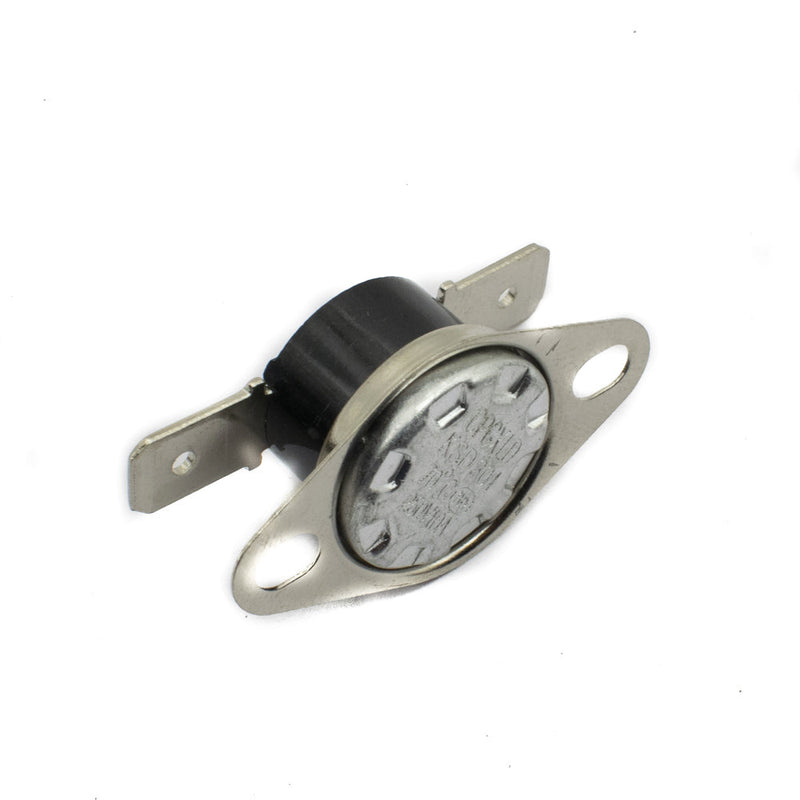

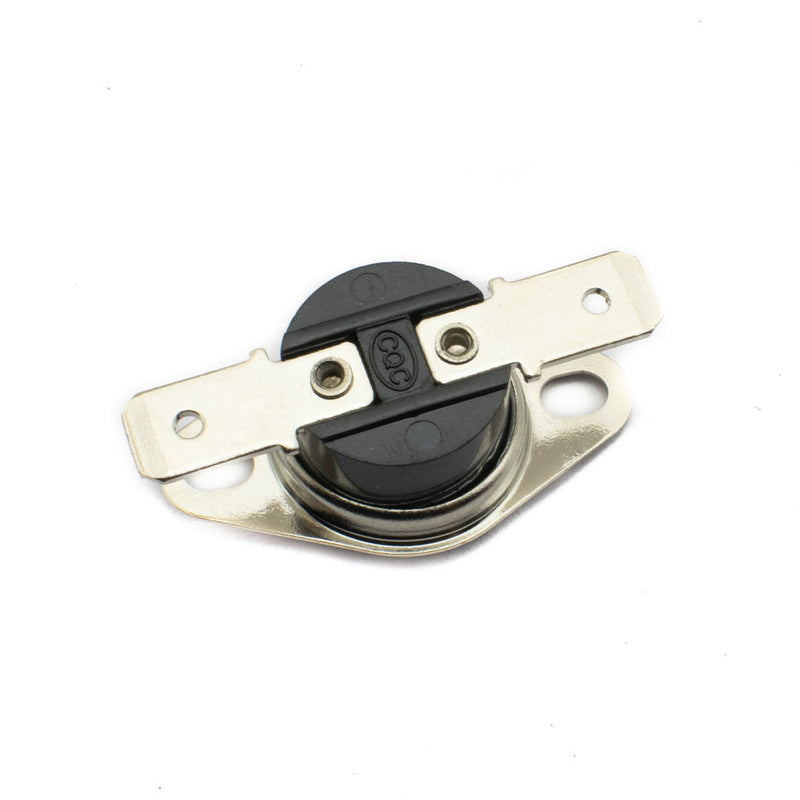

KSD301 70°C Thermal Control Switch 250V 10A NO (Normally Close) The original state of temperature control switch contact is open and closed when the temperature sensing exceeds the rated temperature. This KSD301 thermostat is used widely for coffee makers, water heaters, immersion heaters, electric cookers, microwave ovens, automatic toasters, etc. It is closed until the temperature reaches 70 Celsius degree, then the switch opens. Widely used for temperature control or protection for household electric appliances. Widely used for temperature control or protection for household electric appliances.
Features
- Double metal chip
- Contact sensor, speed dynamic type
- Sensitive, reliable, safe,
- Stable action temperature
- Long service life
- No arc phenomenon automatically reset
Specifications
|
Rated Voltage |
250V |
|
Rated Current |
10A |
|
Model |
KSD 301 |
|
Action type |
Normally Close |
|
Action Temperature |
70°C |
|
Material |
Metal |
|
Diameter |
15.6mm |
|
Length*Height |
34.1*11.8mm |
| Country of Origin | China |
