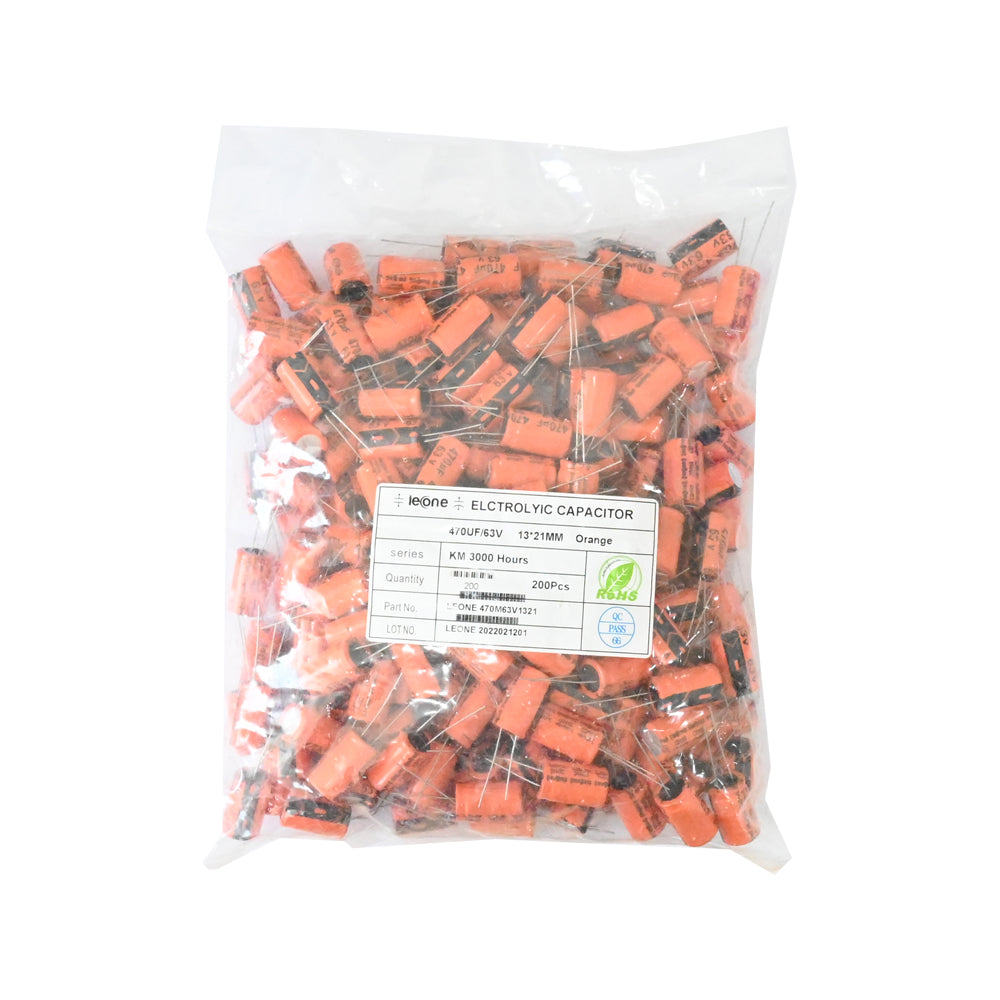

Description
It's a Leone 470µF 63V Electrolytic Capacitor. Electrolytic Capacitor is made up of a high purity Etched and Formed Aluminium foil with aluminium oxide dielectric barrier as anode foil and an aluminium cathode foil are concentrically wound with a layer of condenser grade paper in between and after impregnation with electrolyte, the wound element is housed in an Aluminium can and then hermetically sealed using a rubber bung to form an Aluminium electrolytic capacitor. The most important advantage of electrolytic capacitors is the higher capacitance ratio to dimensions when compared with other capacitors. This is principally due to the microscopically thin dielectric layer, which produces large capacitance per unit area.
Features :
- Used to reduce voltage fluctuations in various filtering devices.
- Used in output and input smoothing to filter when the DC signal is weak with the AC component.
- They are extensively used for noise filtering or decoupling in power supplies.
- Capacitors are one of the most commonly used electronic components to store charge.
Specifications :
| Product | Leone 470µF 63V Electrolytic Capacitor |
| Type | Electrolytic Capacitor |
| Brand | Leone |
| Capacitor Value | 470µF |
| Voltage | 63V |
| Size | 13 x 21 mm |
| Pitch | 5 mm |
| Operating Temperature | -40°C to 105°C |
| Mounting Type | Through Hole |
| Quantity |
1 |
| Country of Origin | China |
