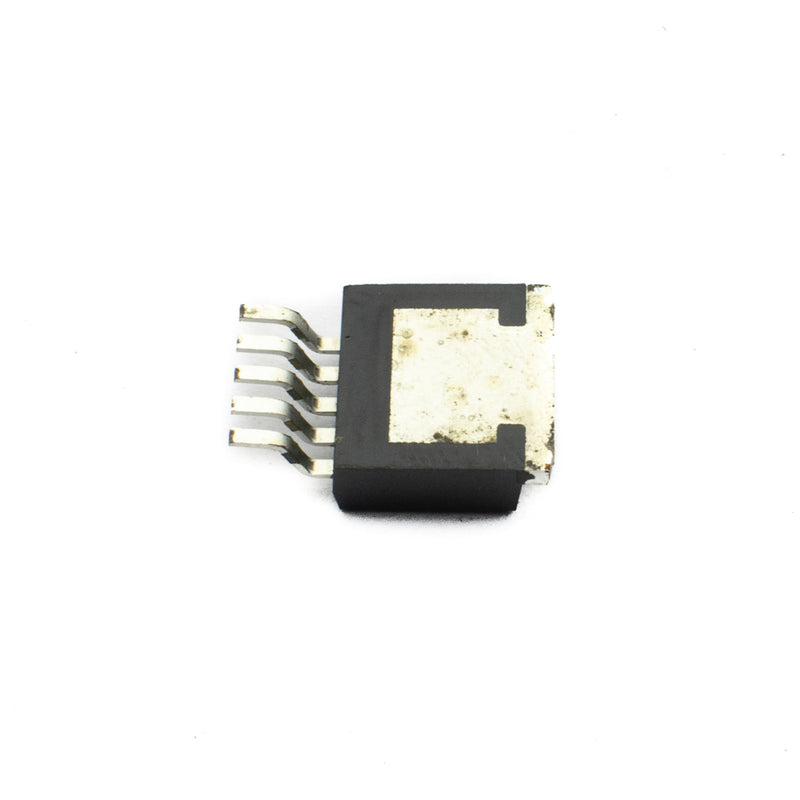

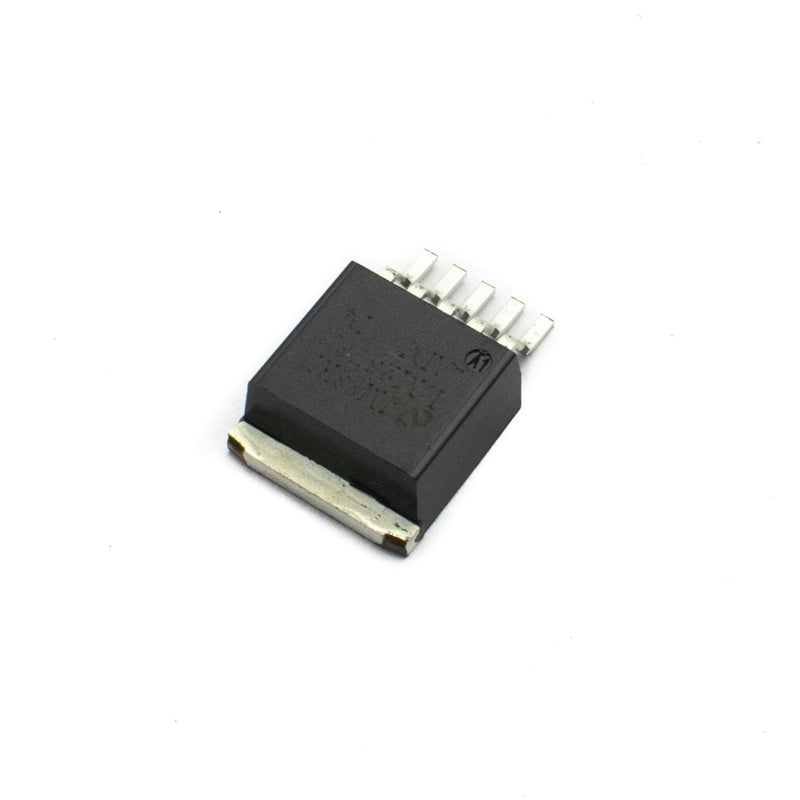

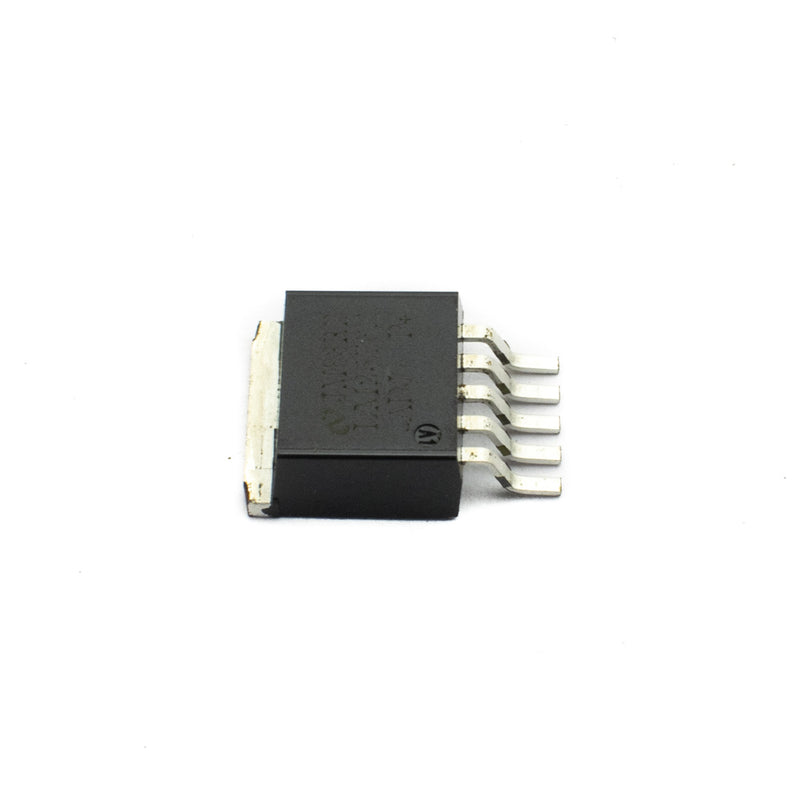

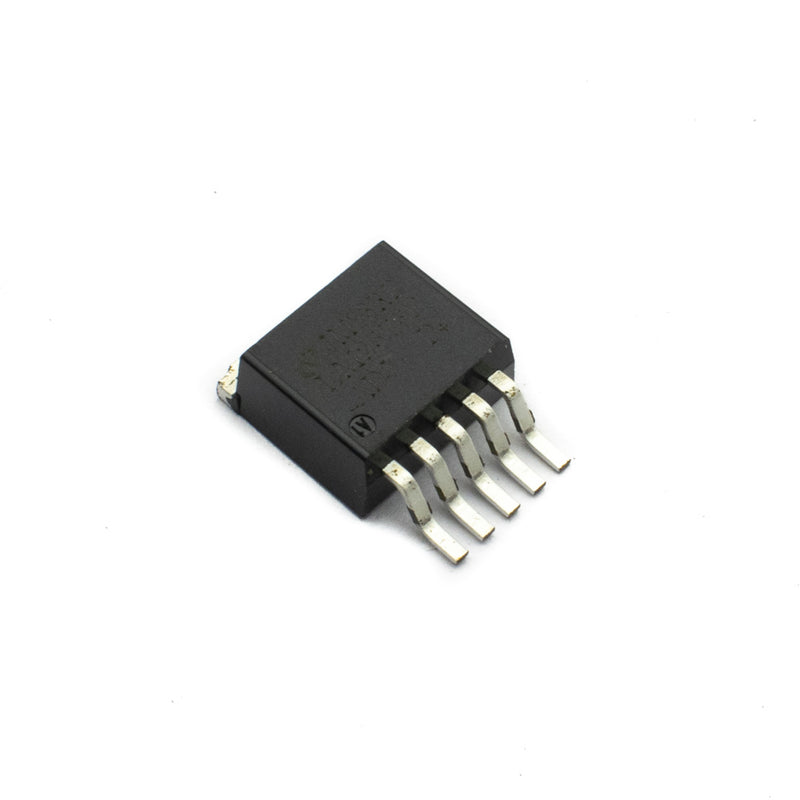

LM2576S Adjustable SMD DC-DC Step-Down Voltage Regulator

Save 35%
Sold By: HatchnHackSKU: D18-60

Price:
Sale price₹ 20.00 Regular price₹ 31.00

Tax included Shipping calculated at checkout

Out of stock

Description

The LM2576 regulators are monolithic integrated circuits ideally suited for the easy and convenient design of a step–down switching regulator (buck converter). The circuit is capable of driving a 3.0 A load with excellent line and load regulation. The device is available in an adjustable output version. The regulator is designed to minimize the number of external components to simplify the power supply design.  Standard series of inductors optimized for use with the LM2576 are offered by several different inductor manufacturers.

Since the LM2576 converter is a switch-mode power supply, its efficiency is significantly higher in comparison with the popular three-terminal linear regulators, especially with higher input voltages.

Pin Configuration

Pin Number

Pin Name

Description

1

VIN

The voltage which has to be regulated is provided as input to this pin

2

Output

The regulated output can be obtained through this pin

3

Ground

Connected to system ground

4

Feedback

This pin is provided with the feedback voltage based on which the output is regulated

5

ON/OFF

Connect to ground to activate regulator or connect to Vcc to disable the regulator.


Features

  • Adjustable Version Output Voltage Range, 1.23 to 35V ± 4% Maximum
  • Over Line and Load Conditions
  • Guaranteed 3.0 A Output Current
  • Wide Input Voltage Range
  • Requires Only 4 External Components
  • 52 kHz Fixed Frequency Internal Oscillator
  • TTL Shutdown Capability, Low Power Standby Mode
  • High Efficiency
  • Uses Readily Available Standard Inductors
  • Thermal Shutdown and Current Limit Protection

Applications

  • Simple High–Efficiency Step–Down (Buck) Regulator
  • Efficient Pre–Regulator for Linear Regulators
  • On–Card Switching Regulators
  • Positive to Negative Converter (Buck-Boost)
  • Negative Step-Up Converters
  • Power Supply for Battery Chargers
Specification
Maximum Supply Voltage 45V
Saturation Voltage 1.5V
Current Limit  4.2-6.9A
Efficiency 82%
Feedback Voltage 1.217 - 1.243V
Storage Temperature Range -65 to + 150°C
Oscillator Frequency 42-63KHz
Type SMD
Dimensions 15.5mm x 10mm x 4.4mm
Country of Origin China
