Description

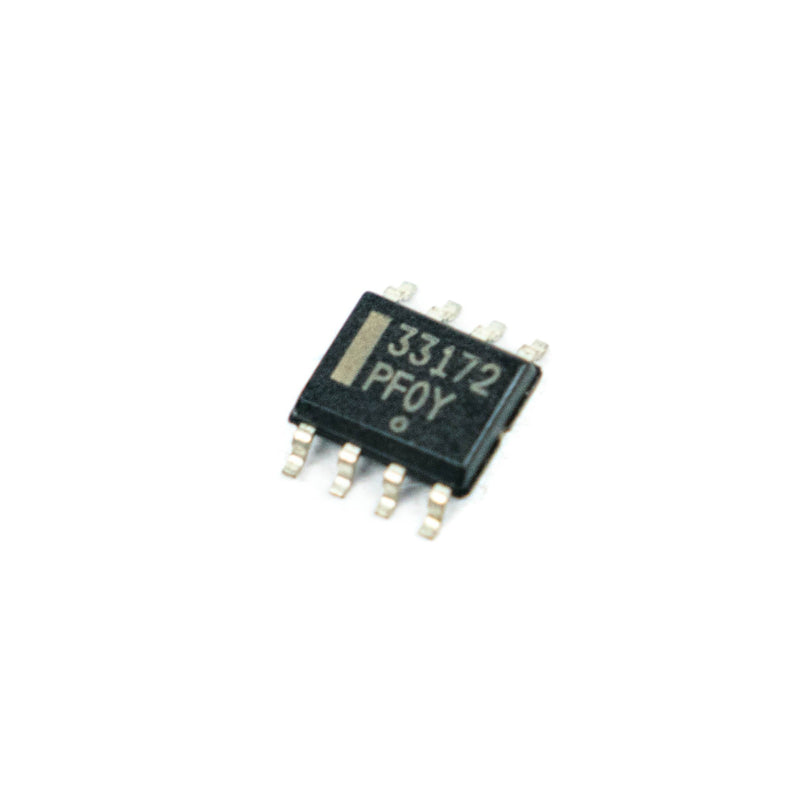

MC33172 is a monolithic op-amp in which high-quality bipolar fabrication and unique design principles are used. Without the usage of JFET device technology, these devices run at 180 A per amplifier and provide a gain-bandwidth product of 1.8 MHz and a slew rate of 2.1 V/s. Although this series can be run from split supplies, the common-mode input voltage includes ground potential, making it ideal for single-supply operation (VEE). These devices have a high input resistance, low input offset voltage, and high gain due to the Darlington input stage. High capacitance drive capability, excellent phase, and gain margins, low open-loop high-frequency output impedance, and symmetrical source/sink are all features of the NPN output stage, which has no deadband crossover distortion and a big output voltage swing. These op-amps are well specified under industrial and automotive ranges. And comes in both plastic and surface mountings.
Features:
- Wide Supply Operating Range: 3.0 V to 44 V or +/-1.5 V to +/- 22 V
- Wide Input Common-Mode Range, Including Ground (VEE)
- Large Output Voltage Swing: -14.2 V to +14.2 V (with +/-15 V Supplies)
- Output Short Circuit Protection
- ESD Diodes Provide Input Protection for Dual and Quad
Specifications:
| Part Number | MC33172 |
| Supply Current | 180µA (Per Amplifier) |
| Slew Rate | 2.1 V/µs |
| Input Offset Voltage | 2.0 mV |
| Capacitance Drive Capability | 0 pF to 500 pF |
| Total Harmonic Distortion | 0.03% |
| Phase Margin | 60°C |
| Gain Margin | 15dB |
| Quantity | 100 |
| Country of Origin | China |
