Description

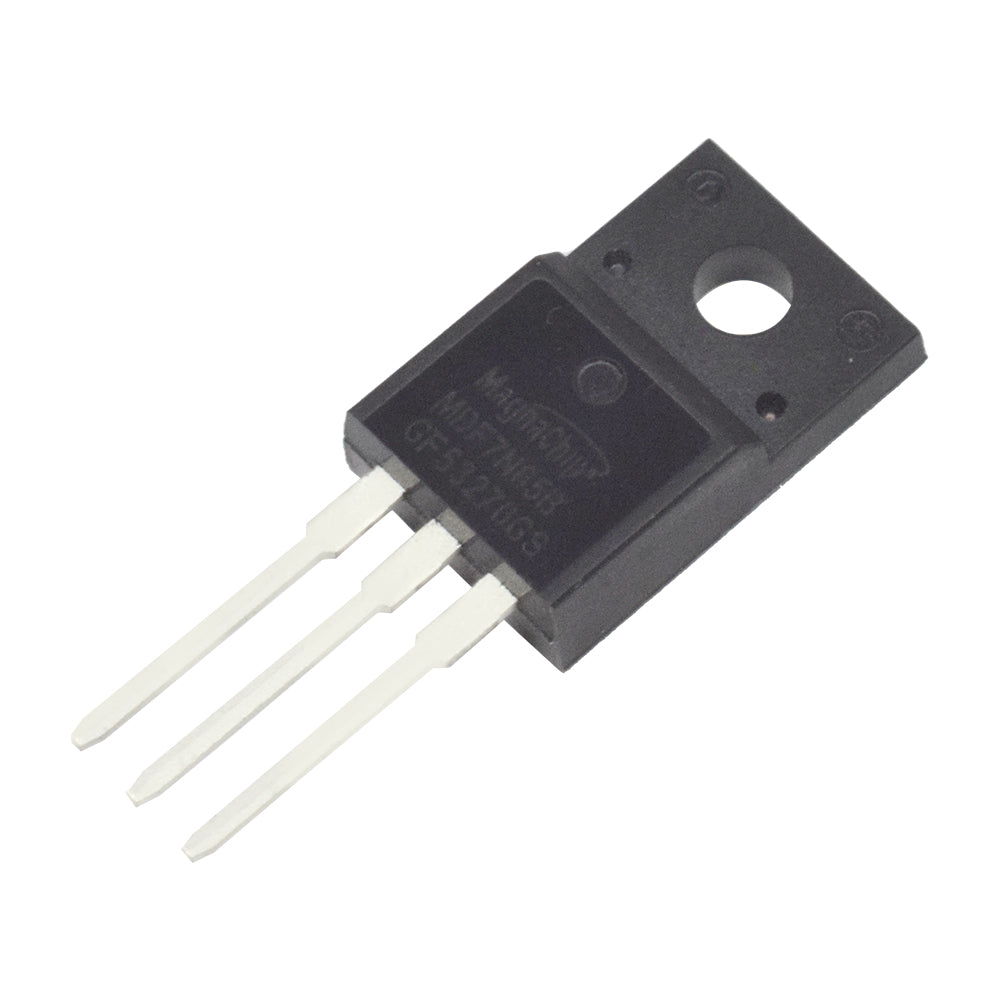

These N-channel MOSFETs are created using cutting-edge Magna Chip MOSFET Technology, which offers exceptional quality, strong switching performance, and low on state resistance. These devices are appropriate for general-purpose, high-speed switching, and SMPS applications. This drain current is 7.0 A its mostly used in switching operation wherever we need of fast switching there we can use this MOSFET, Its a type of electronic switching where manual switching is not needed that is its faster than the manual switches here is the huge application of this device it can used in SMPS,UPS etc.
Features
- Its three pin 3 IC
- Its used for fast switching
- It has high switching speed
- Its used in high current application
- Its drain to source resistance is approximately 1.35Ohm
Specifications
| Model | MDF7N65B |
| Brand | Magna Chip |
| Type | MOSFET |
| Package Style | Through hole |
| Package | TO-220F |
| Power dissipation | 42W |
| Max Voltage | 650V |
| Storage Temperature Range | -55°C to 150°C |
| Country of Origin | China |
