Description

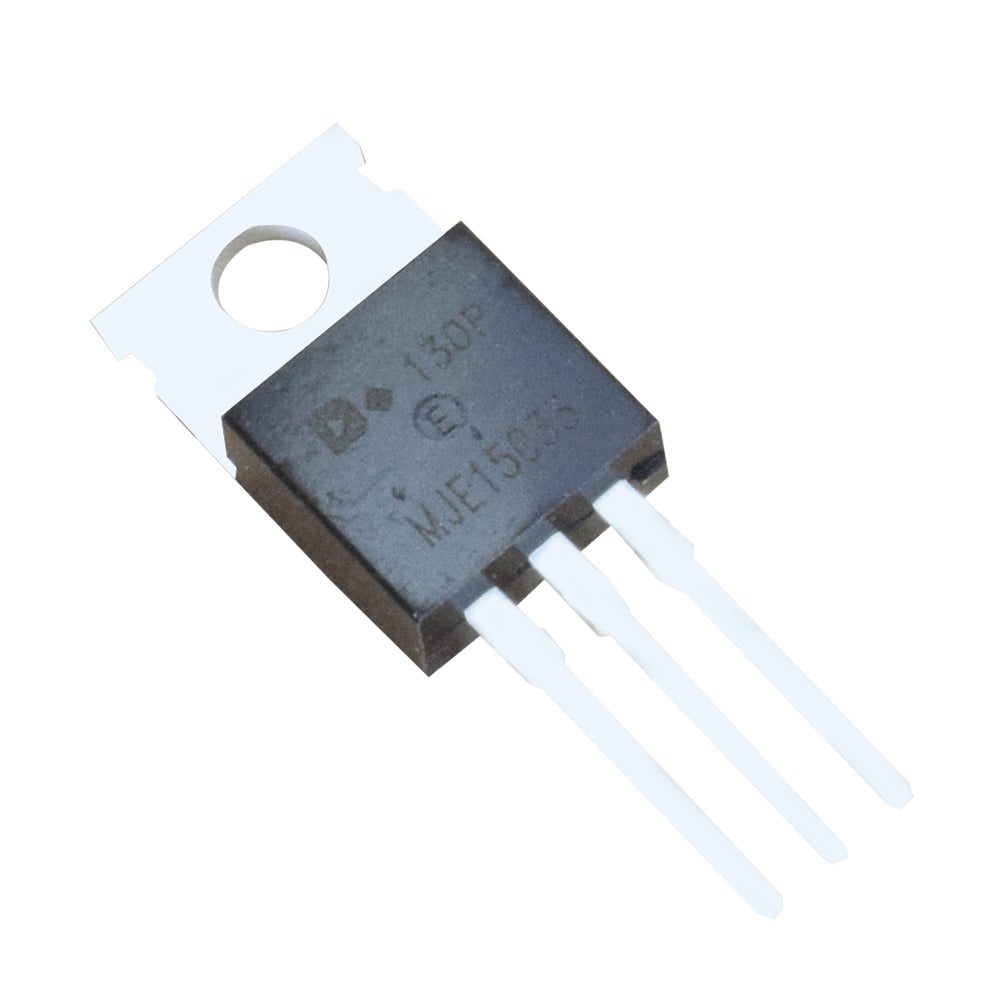

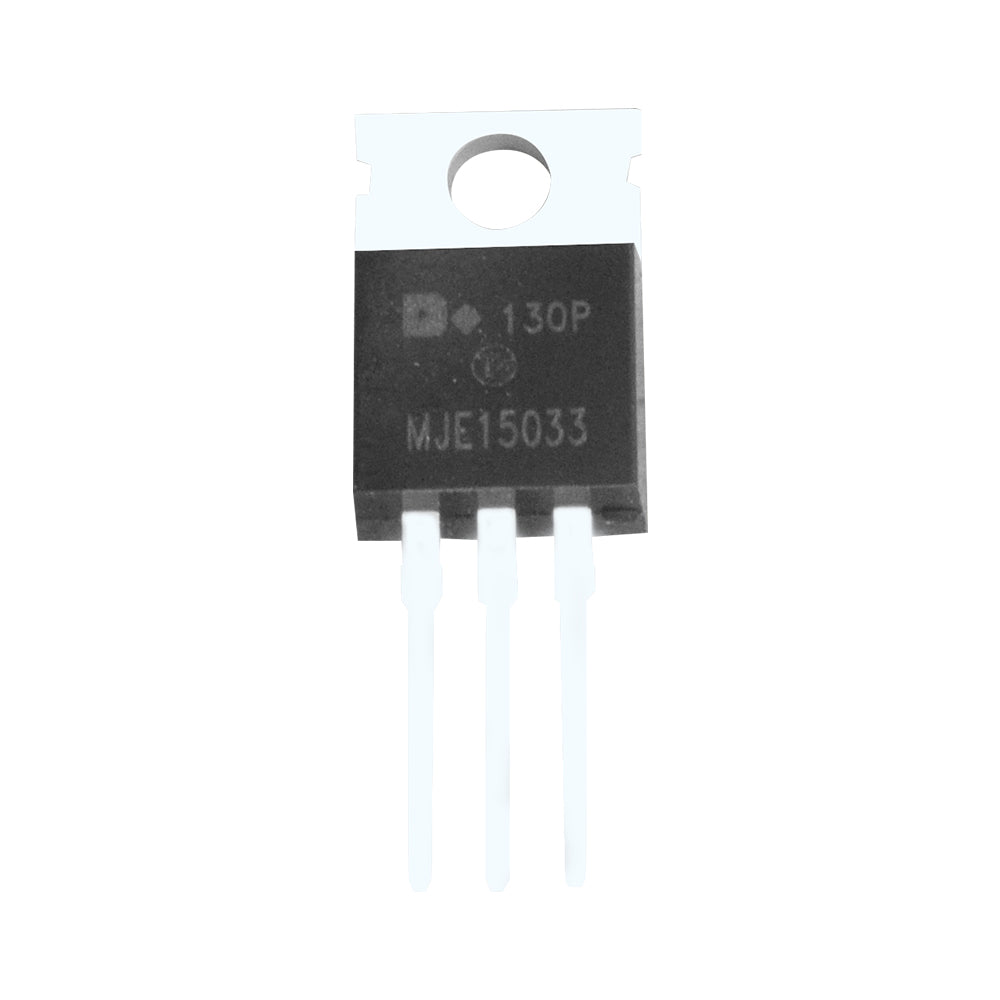

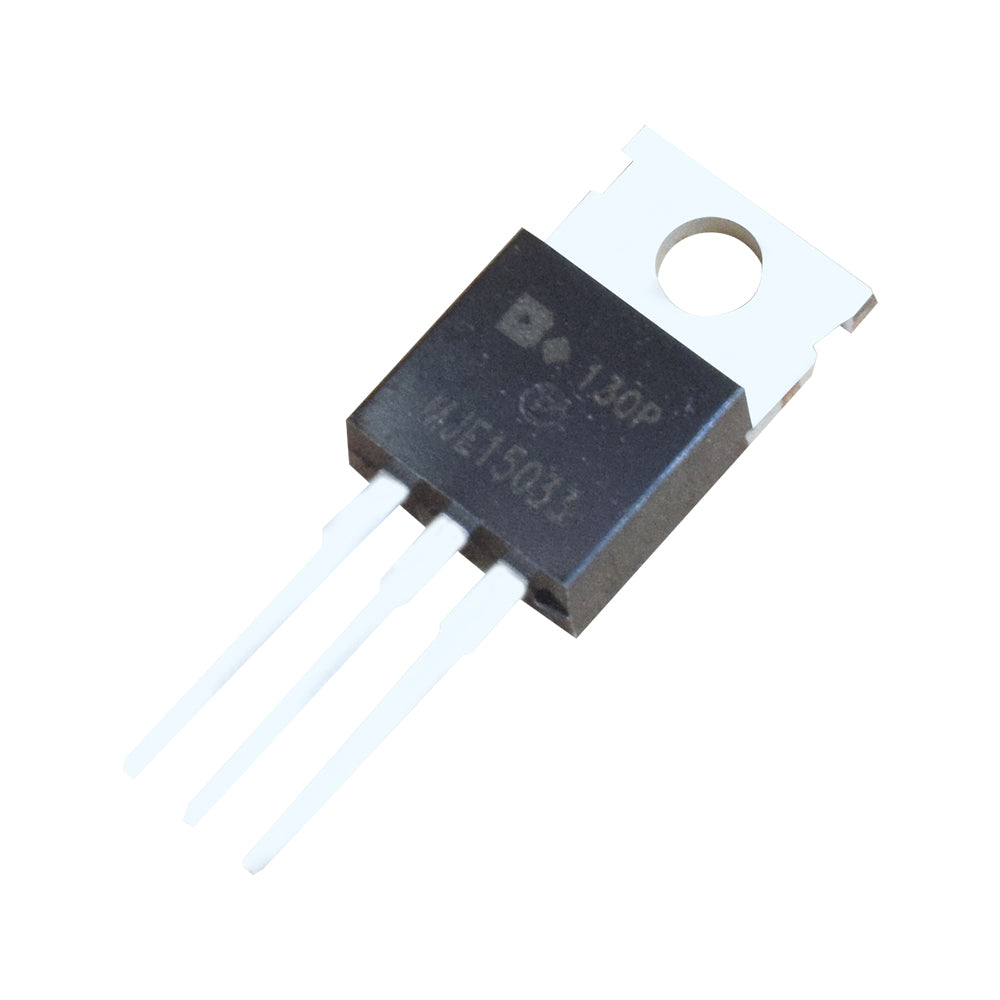

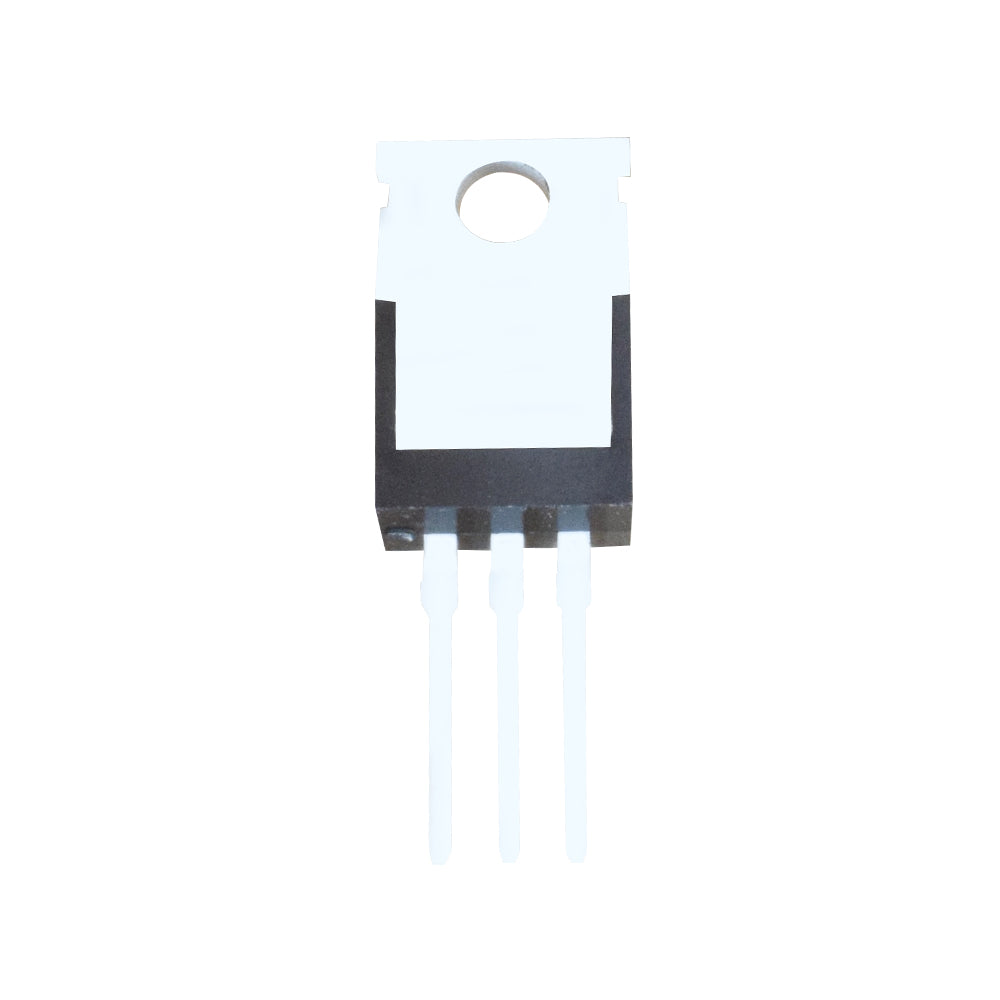

MJE15033 is a complementary silicon MOSFET which is used as an electronic switch. It's a switching device which is used to switch the power. There are many applications of this MOSFET like SMPS, UPS, Inverter, Welder and other switching applications. Its max operating voltage is 250V, and the current is 8A.
Features
-
DC Current Gain Specified to 5.0 Amperes
-
hFE= 50 (Min) @ IC= 0.5
-
Adc= 10 (Min) @ IC= 2.0 Adc
-
Its package is TO-220AB
Specification
| Model | MJE15033 |
| Type | MOSFET |
| Package | TO-220AB |
| Collector-Base Voltage | 250V |
| Emitter base voltage | 5V |
| Base current | 2A |
| Total power dissipation | 50W |
| Operating and Storage Temperature Range | -55°C TO 150°C |
| Country of Origin | China |
