Description

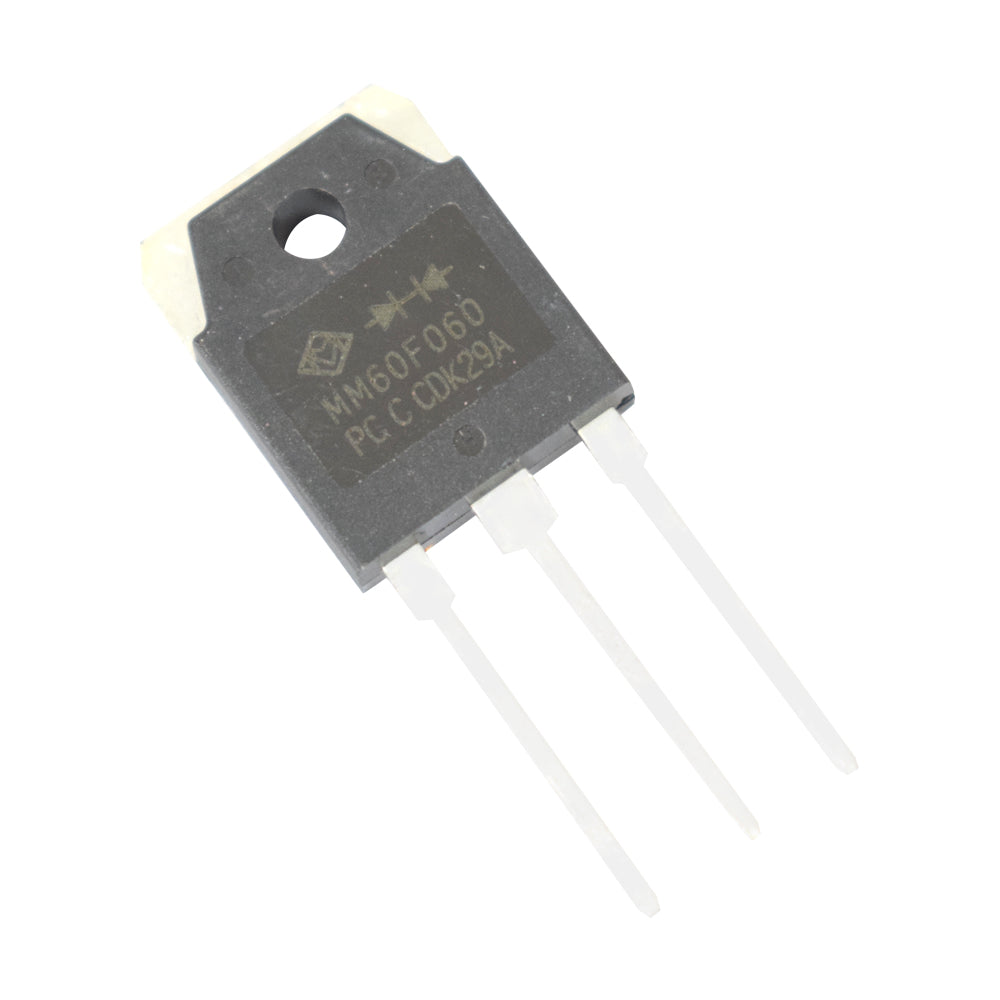

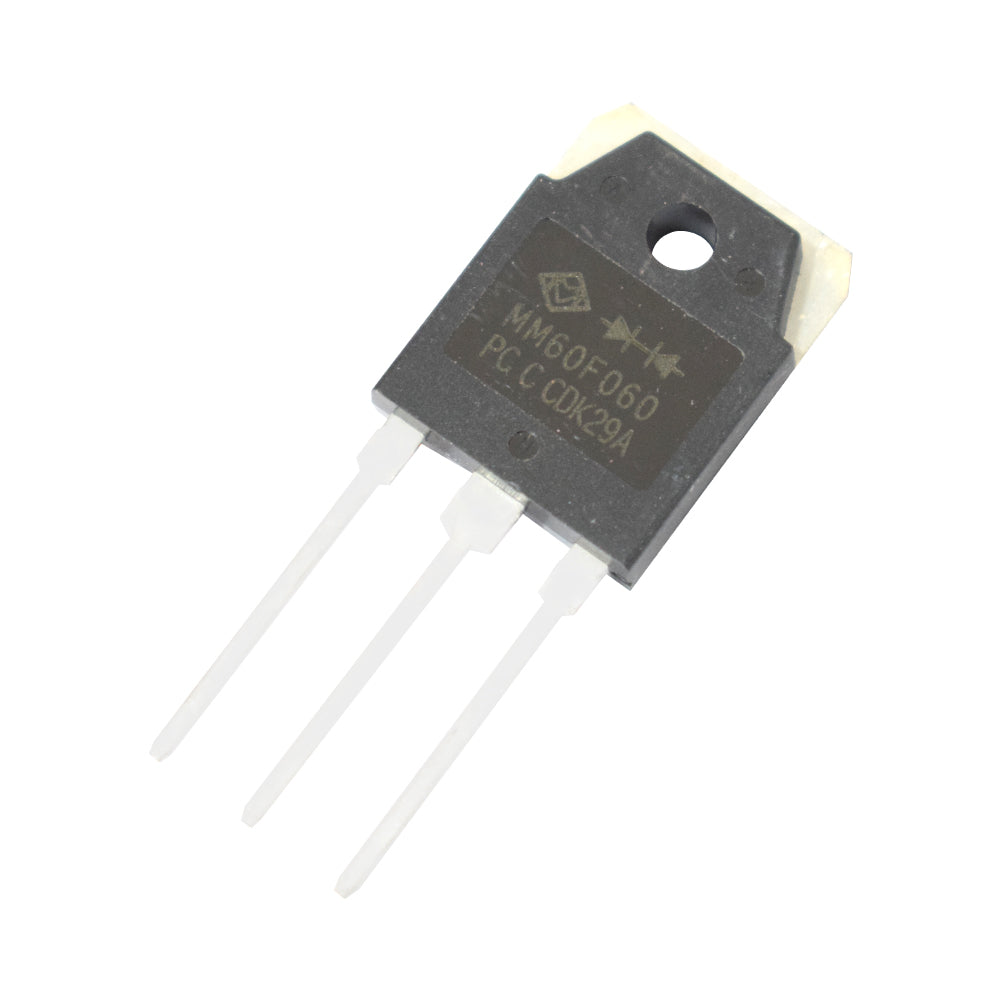

MM60F060 is a type of MOSFET which is basically used for fast switching operation. It has fast recovery time that is its used for fast switching. There are the huge applications of this MOSFET like Snubber,freewheeling diode,inversion welder,PFC,Plating power supply,Ultrasonic cleaner and welder and Motor driver and high speed power switching. Its operating voltage is 600V, Its operating current is 60A.
Features
-
Low Gate Charge Qg results in Simple Drive Requirement
-
Fully Characterized Capacitance and Avalanche Voltage andCurrent
- Enhanced Body Diode dv/dt Capability
- Improved Gate, Avalanche and Dynamic dv/dt Ruggedness

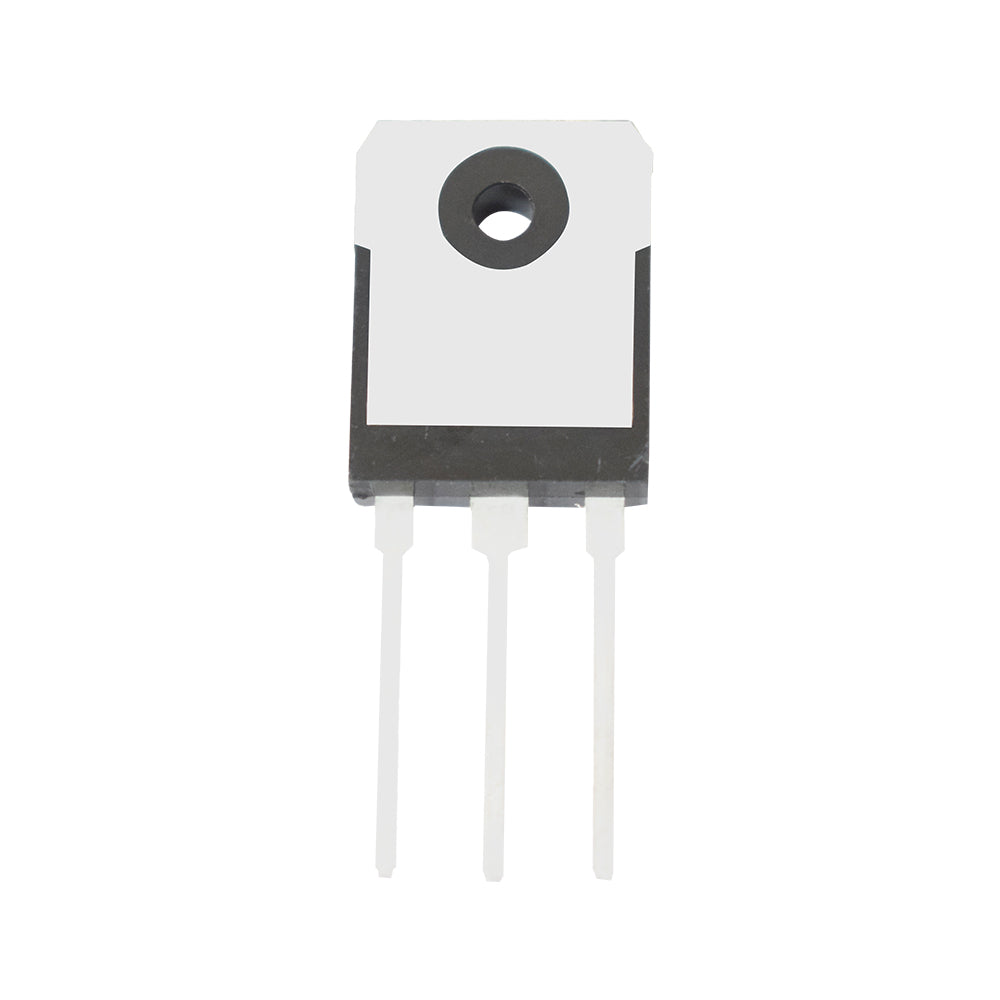

- Its package is TO-3P
- Low leakage current
- Low forward voltage
- High surge current capability
- Soft reverse recovery characteristics
- Ultrafast recovery time
Specifications
| Model | MM60F060 |
| Brand | MACMIC |
| Mounting Type | Through Hole |
| Package | TO-3P |
| No. of Pin | 03 |
| Drain-Source Voltage |
600V |
| Drain-Current Continous | 60A |
| Operating Temperature | -55 to + 150°C |
| Type of Control Channel | N -Channel |
| Power Dissipation |TC= 25°C| | 156W |
| Country of Origin | China |
