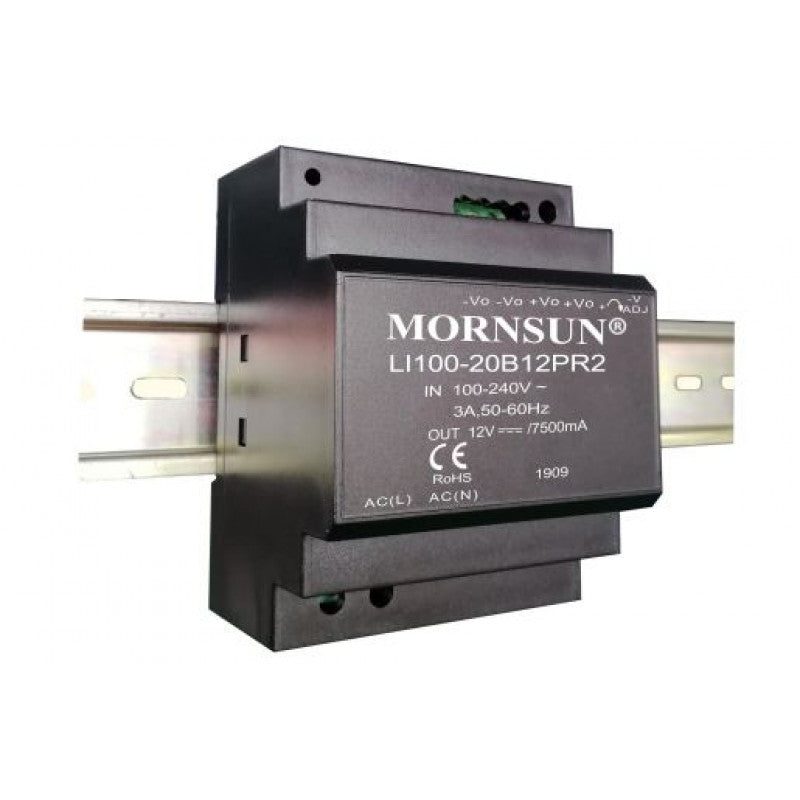

Mornsun LI100-20B12PR2 AC/DC 100W DIN-Rail Power Supply

Mornsun LI100-20B12PR2 AC/DC 100W DIN-Rail Power Supply

The LI100-20B12PR2 is a cost-effective, energy efficient AC-DC converter from Mornsun. It is compliant with international EMC standards and is safety approved to a variety of safety standards. The converter is lightweight and has a compact design, making it ideal for space-saving applications. It is also ideal for harsh environments, such as industrial control equipment machinery.

Features

• Universal input voltage: 85-264VAC or 120-370VDC
• Accepts AC or DC input (dual-use of same terminal)
• Operating ambient temperature range: -40℃ to +70℃
• High I/O isolation test voltage up to 4000VAC
• Industrial-grade design
• OVC III (EN61558-1 standards)
• Low standby power consumption, high efficiency
• Low ripple & noise
• Output short circuit, over-current, over-voltage protection
• Withstand 300VAC surge input for 5s
• DIN rail TS35X7.5/ TS35X15 mountable
• Safety according to EN61558

If you are looking for a cost-effective, energy efficient AC-DC converter that is compliant with international standards and is safe for use in harsh environments, then the LI100-20B12PR2 is a great option.

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LI100-20B12PR2 AC/DC 100W DIN-Rail Power Supply

Specifications:
