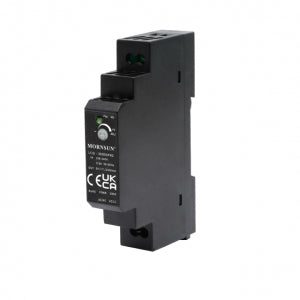

Mornsun LI15-20B48PR2 AC/DC 15W DIN-Rail Power Supply

Mornsun LI15-20B48PR2 AC/DC 15W DIN-Rail Power Supply

The LI15-20B48PR2 is a cost-effective, energy efficient AC-DC converter from Mornsun. It features a global input range of 85-264VAC or 120-370VDC, and can output a single regulated voltage of 48VDC at up to 0.32A. The converter is housed in a compact plastic case and is compliant with international safety standards IEC62368, IEC/EN61010, IEC/EN61558 and IEC60335. It also meets EMC standards IEC/EN61000-4, CISPR32/EN55032, UL62368 and EN62368.

Features:

• Global input range of 85-264VAC or 120-370VDC
• Single regulated output voltage of 48VDC
• Output current of up to 0.32A
• Compact plastic case
• Compliant with international safety standards IEC62368, IEC/EN61010, IEC/EN61558 and IEC60335
• Meets EMC standards IEC/EN61000-4, CISPR32/EN55032, UL62368 and EN62368

check out : Mornsun LI15-20B05PR2 AC/DC 12W DIN-Rail Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Also check the Mornsun LI15-20B15PR2 AC/DC 15W DIN-Rail Power Supply. It is a 15W AC/DC converter designed for standard DIN-rail mounting. The power supply has a universal input voltage range of 90-264VAC and features a PFC function for power factor correction.

Package Includes:

1 x  Mornsun LI15-20B48PR2 AC/DC 15W DIN-Rail Power Supply

Specifications
