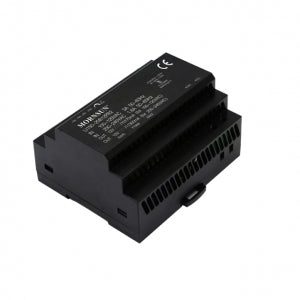

Mornsun LI150-20B15PR2 AC/DC 150W DIN-Rail Power Supply

Mornsun LI150-20B15PR2 AC/DC 150W DIN-Rail Power Supply

The LI150-20B15PR2 is a 15V, 9.5A, 150W AC/DC converter from Mornsun. It is a cost-effective, energy efficient solution for standard DIN-rail mounting. The product offers a high level of stability and immunity to noise, and is compliant with international IEC62368 standards for EMC and safety specifications meet IEC/EN61000-4, CISPR32, EN55032, UL/EN/IEC62368, IEC/EN60335, IEC61558, UL61010. It is a light weight AC-DC converter with an extremely compact design for space saving. It is ideal for applications such as industrial control equipment machinery and all kinds of applications in a harsh environment.

Features:

• 15V, 9.5A, 150W output
• Universal input voltage of 85-264VAC / 120-370VDC
• PFC function for power factor correction
• High efficiency up to 95%
• Low ripple and noise
• Compact and lightweight design
• DIN-rail mounting
• CE, FCC, RoHS compliant

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LI150-20B15PR2 AC/DC 150W DIN-Rail Power Supply

Specifications:
