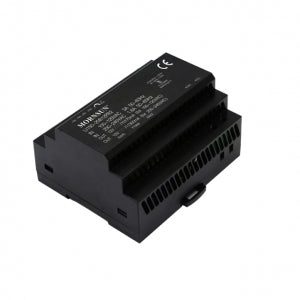

Mornsun LI150-20B48PR2 AC/DC 150W DIN-Rail Power Supply

Mornsun LI150-20B48PR2 AC/DC 150W DIN-Rail Power Supply

The LI150-20B48PR2 is a cost-effective, energy efficient AC/DC converter that is compliant with international IEC62368 standards for EMC and safety specifications meet IEC/EN61000-4, CISPR32, EN55032, UL/EN/IEC62368, IEC/EN60335, IEC61558, UL61010. It is ideal for applications such as industrial control equipment machinery and all kinds of applications in a harsh environment.

Features:

• Universal input voltage: 85-264VAC or 120-370VDC
• Output voltage: 48VDC
• Output current: 3.2A
• Power: 150W
• PFC function for power factor correction
• Compact and lightweight design
• DIN-rail mounting
• High level of stability and immunity to noise
• Compliant with international standards for EMC and safety

check out : Mornsun LI100-20B15PR2 AC/DC 100W DIN-Rail Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

check out : Mornsun LI100-20B12PR2 AC/DC 100W DIN-Rail Power Supply

Also check the Mornsun LI150-20B15PR2 AC/DC 150W DIN-Rail Power Supply. It is a 15V, 9.5A, 150W AC/DC converter designed for standard DIN-rail mounting. The power supply has a universal input voltage range of 85-264VAC or 120-370VDC and features a PFC function for power factor correction.

Package Includes:

1 x Mornsun LI150-20B48PR2 AC/DC 150W DIN-Rail Power Supply

Specifications:
