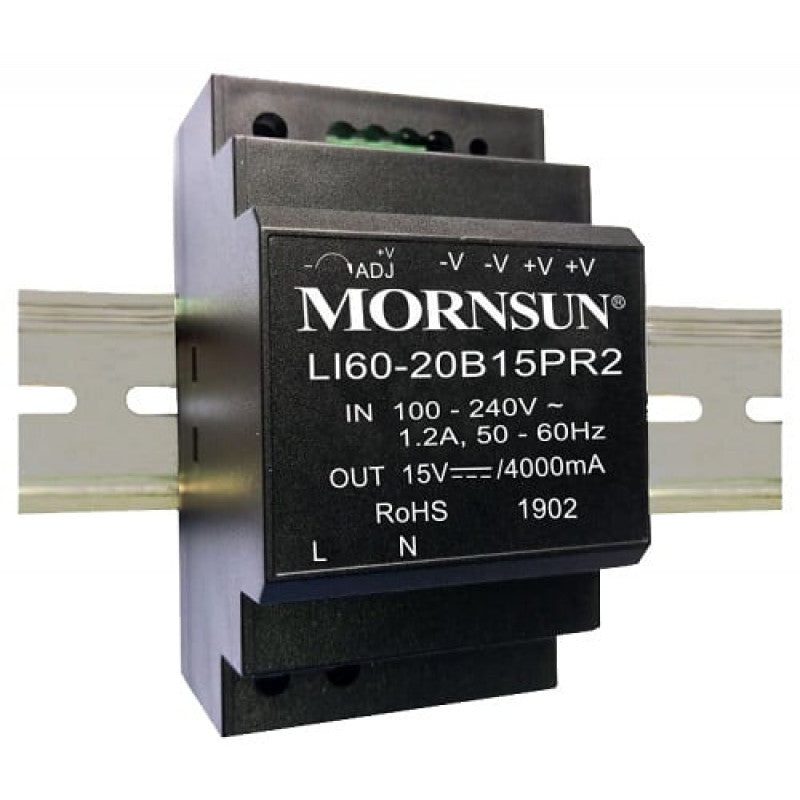

Mornsun LI60-20B15PR2 AC/DC 60W DIN-Rail Power Supply

Mornsun LI60-20B15PR2 AC/DC 60W DIN-Rail Power Supply

The LI60-20B15PR2 is a cost-effective, energy-efficient AC-DC converter from Mornsun. It is designed for standard DIN-rail mounting and offers a high level of stability and immunity to noise. The converter is compliant with international IEC62368 standards for EMC and is safety approved to IEC/EN61000-4, CISPR32, EN55032, UL62368, IEC62368 and EN62368. The LI60-20B15PR2 is lightweight and compact, making it ideal for space-saving applications. It is also ideal for use in harsh environments, such as industrial control equipment and machinery.

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Also check the Mornsun LI60-20B48PR2, a 60W AC/DC DIN-rail converter with high performance and compact design

Package Includes:

1 x  Mornsun LI60-20B15PR2 AC/DC 60W DIN-Rail Power Supply

Specifications:
