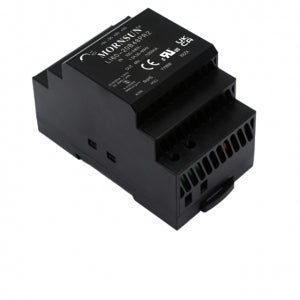

Mornsun LI60-20B48PR2 AC/DC 60W DIN-Rail Power Supply

Mornsun LI60-20B48PR2 AC/DC 60W DIN-Rail Power Supply

The LI60-20B48PR2 is a 60W AC/DC power supply that outputs 48V at 1.25A. It has a wide input voltage range of 85-264VAC or 120-370VDC, making it suitable for use in a variety of applications. The power supply is also isolated from the input voltage, providing protection against electrical shock. The LI60-20B48PR2 is housed in a durable plastic case and is designed for easy installation on a DIN rail.

Features:

• 60W output power
• 48V output voltage
• 1.25A output current
• Wide input voltage range: 85-264VAC or 120-370VDC
• Isolated from input voltage
• Durable plastic case
• DIN rail mounting

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LI60-20B48PR2 AC/DC 60W DIN-Rail Power Supply

Specifications
