Description

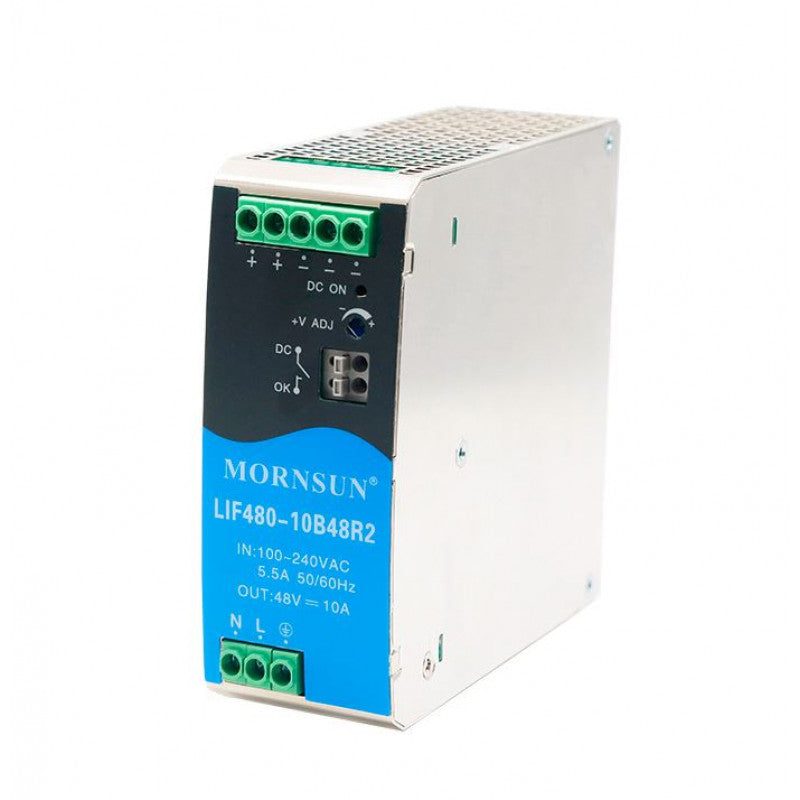

Mornsun LIF480-10B48R2 AC/DC 480W DIN-Rail Power Supply
The LIF480-10B48R2 is a cost-effective, energy efficient, and green AC-DC converter from Mornsun. It is designed for standard DIN-rail mounting and offers a high level of stability and immunity to noise. The converter is also lightweight and has an extremely compact design, making it ideal for space-saving applications. It is compliant with international EMC and safety standards, making it a reliable choice for a variety of industrial applications.
Features
- Cost-effective
- Energy efficient
- Green
- Standard DIN-rail mounting
- High level of stability and immunity to noise
- Lightweight
- Extremely compact design
- Compliant with international EMC and safety standards
The LIF480-10B48R2 is a versatile and reliable AC-DC converter that is ideal for a variety of industrial applications. It is a cost-effective, energy efficient, and green solution that offers a high level of performance and reliability.
check out : Mornsun LIF480-10B24R2 AC/DC 480W DIN-Rail Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LIF480-10B48R2 AC/DC 480W DIN-Rail Power Supply
Specifications:
| Type | DIN Rail Single Output |
| Output Power | 480W |
| Series | LIF480-10B |
| Part Number | LIF480-10B48R2 |
| Mount | DIN-Rail |
| IP Level | Non-Waterproof |
| Output Voltage | 48V |
| Output Current | 10A |
