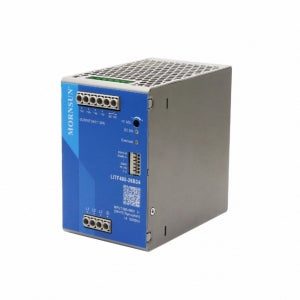

Mornsun LITF480-26B24 AC/DC 480W DIN-Rail Power Supply

Mornsun LITF480-26B24 AC/DC 480W DIN-Rail Power Supply

The LITF480-26B24 is a 480W 24V AC/DC power supply from Mornsun. It is a closed-frame, 3-phase power supply with a universal input voltage of 3x320-600VAC or 450-800VDC. The output current is 20A and the efficiency is up to 95%. The power supply has a number of protection features, including overvoltage protection, overload protection, overcurrent protection, and overtemperature protection. It also has a remote sense function and a power factor correction (PFC) function.

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x Mornsun LITF480-26B24 AC/DC 480W DIN-Rail Power Supply

Specifications:
