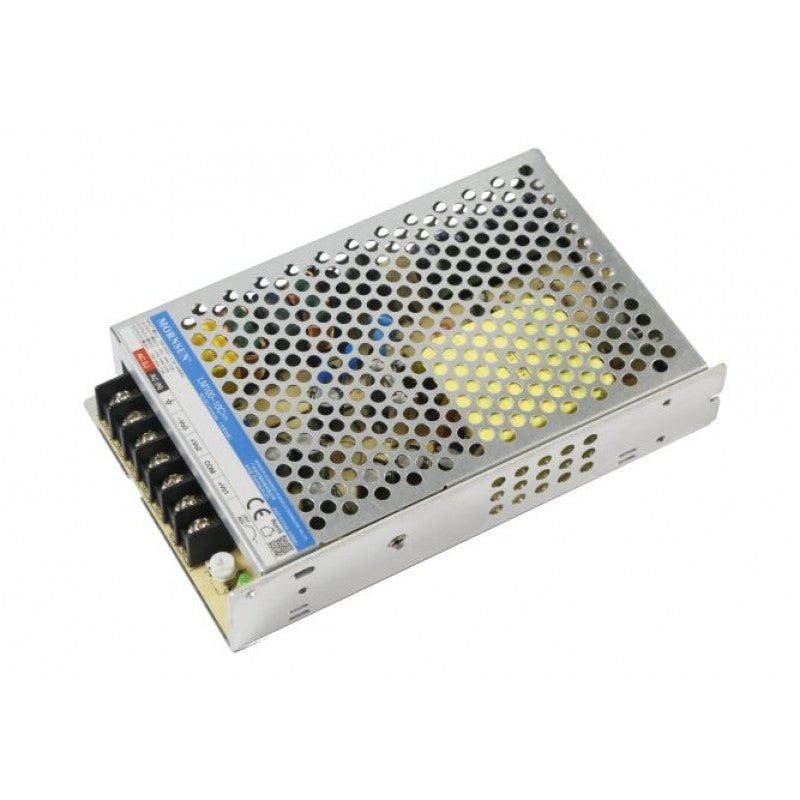

Mornsun LM100-10C052412-20 AC/DC 100W Enclosed SMPS

Mornsun LM100-10C052412-20 AC/DC 100W Enclosed SMPS

The LM100-10C052412-20 is a power converter with three output versions, which can independently supply three different loads in the system. It can be used in harsh working environments with an ambient temperature range of -30℃ to +70℃, without the need for a fan. The converter meets the requirements of IEC61000 standard for EMC immunity and CISPR32/EN55032, class B emission standard without any external components, thus providing excellent EMC protection. It also meets IEC/EN/UL62368, EN60335, GB4943 safety standards. The converter integrates a variety of protection features and offers a high-performance to low-cost ratio, making it the best power solution for a variety of industries such as industrial control equipment, instrumentation, and smart home and building equipment application.

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

check out : Mornsun LM50-10C051212-20 AC/DC 50W Enclosed SMPS

Package Includes:

1 x Mornsun LM100-10C052412-20 AC/DC 100W Enclosed SMPS

Specifications:
