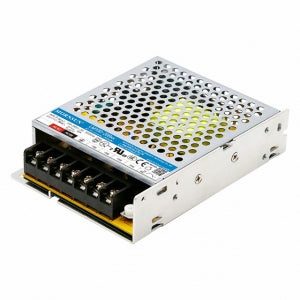

Mornsun LM100-20B24 AC/DC 100W Enclosed Switching Power Supply

Mornsun LM100-20B24 AC/DC 100W Enclosed Switching Power Supply

The LM100-20B24 is an industrial power supply manufactured by Mornsun. It is a universal type power supply with a wide input voltage range of 85-264 VAC or 120-370 VDC. The power supply has a power output of 108 Watts and an output voltage of 24VDC. It is capable of delivering a maximum output current of 4.5A and operates with an efficiency of 90%. The LM100-20B24 also features a high isolation voltage of 4000VAC, ensuring safe operation.

Features:

• Power Output: 108 Watts
• Input Voltage Range (AC): 85-264 VAC
• Input Voltage Range (DC): 120-370 VDC
• Output Voltage: 24 VDC
• Output Current: 4.5A
• Efficiency: 90%
• Isolation Voltage: 4000VAC

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x Mornsun LM100-20B24 AC/DC 100W Enclosed Switching Power Supply
