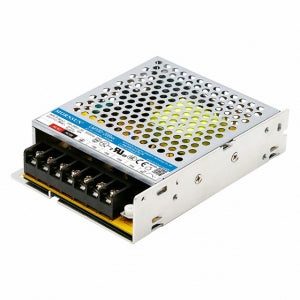

Mornsun LM100-20B36 AC/DC 100W Enclosed Switching Power Supply

Mornsun LM100-20B36 AC/DC 100W Enclosed Switching Power Supply

The LM100-20B36 is a universal type power supply designed for industrial applications. It features a wide input voltage range of 85-264VAC and 120-370VDC, making it suitable for various power sources. The power rating of this supply is 100.8W, with an output voltage of 36VDC and a maximum output current of 2.8A.

The LM100-20B36 power supply offers a high efficiency of 90%, which helps to minimize energy consumption and reduce heat dissipation. It also provides isolation up to 4000VAC, ensuring safety and protection for connected devices.

This power supply is designed to meet global voltage standards and can accept input voltages from around the world. It is a reliable and versatile solution for industrial applications that require stable and efficient power delivery.

Features:

• Power: 100.8W
• Input Voltage (AC): 85-264V
• Input Voltage (DC): 120-370V
• Output Voltage: 36V
• Output Current: 2.8A
• Efficiency: 90%
• Isolation: 4000VAC

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LM100-20B36 AC/DC 100W Enclosed Switching Power Supply

Specifications
