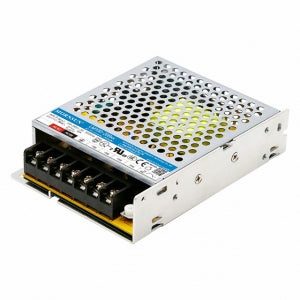

Mornsun LM100-20B48 AC/DC 100W Enclosed Switching Power Supply

Mornsun LM100-20B48 AC/DC 100W Enclosed Switching Power Supply

The LM100-20B48 is an industrial power supply manufactured by Mornsun. It is a universal type power supply with a wide input voltage range of 85-264VAC and 120-370VDC. The power output is 110.4W with an output voltage of 48VDC and a current output of 2.3A. The power supply has an efficiency rating of 91% and provides an isolation of 4000VAC. It is designed to work with a global input voltage range.

Features

• Power (W): 110.4
• Input Voltage (VAC): 85-264
• Input Voltage (VDC): 120-370
• Output Voltage (VDC): 48
• Output Current (A): 2.3
• Efficiency (%): 91

check out : Mornsun LM100-22B48 AC/DC 100W Enclosed Switching Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

check out : Mornsun LM100-20B24 AC/DC 100W Enclosed Switching Power Supply

Package Includes:

1 x  Mornsun LM100-20B48 AC/DC 100W Enclosed Switching Power Supply

Specifications
