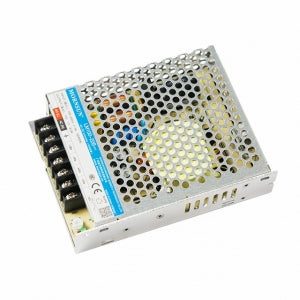

Mornsun LM100-22B05 AC/DC 100W Enclosed Switching Power Supply
The LM100-22B05 is a universal type power supply designed for industrial applications. It has a wide input voltage range of 165-264 VAC and 200-370 VDC. The output voltage is 5VDC, with a maximum output current of 18A. The power rating of this supply is 90W, and it offers an efficiency of 86%.
One of the key features of the LM100-22B05 is its high isolation capability, providing 4000VAC isolation. It is designed to operate within a narrow input voltage range and offers a cost-effective solution for various industrial applications.
check out : Mornsun LM100-20B36 AC/DC 100W Enclosed Switching Power Supply
Features
- Power: 90W
- Input Voltage (AC): 165-264V
- Input Voltage (DC): 200-370V
- Output Voltage: 5V
- Output Current: 18A
- Efficiency: 86%
- Isolation: 4000VAC
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
check out : Mornsun LM100-22B36 AC/DC 100W Enclosed Switching Power Supply
Package Includes:
1 x Mornsun LM100-22B05 AC/DC 100W Enclosed Switching Power Supply
Specifications:
| Power (W) | 90 |
| Vin (VAC) | 165-264 |
| Vin (VDC) | 200-370 |
| Vout (VDC) | 5 |
| Iout (A) | 18 |
| Efficiency (%) | 86 |
| Isolation (VAC) | 4000 |
