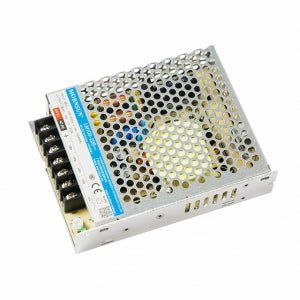

Mornsun LM100-22B15 AC/DC 100W Enclosed Switching Power Supply

Mornsun LM100-22B15 AC/DC 100W Enclosed Switching Power Supply

The LM100-22B15 is an industrial power supply manufactured by Mornsun. It is a universal type power supply with a wide input voltage range of 165-264 VAC and 200-370 VDC. The power supply has a maximum power output of 105 Watts and an efficiency rating of 87.5%. It offers a 15V DC output with a maximum current output of 7A. The LM100-22B15 is designed with a high level of isolation, providing a safety rating of 4000VAC. It is suitable for various industrial applications.

Features:

• Wide input voltage range: 165-264 VAC, 200-370 VDC
• Power output: 105 Watts
• Input voltage: 165-264 VAC, 200-370 VDC
• Output voltage: 15V DC
• Maximum output current: 7A
• Efficiency: 87.5%
• High level of isolation: 4000VAC

check out : Mornsun LM100-22B12 AC/DC 100W Enclosed Switching Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LM100-22B15 AC/DC 100W Enclosed Switching Power Supply
