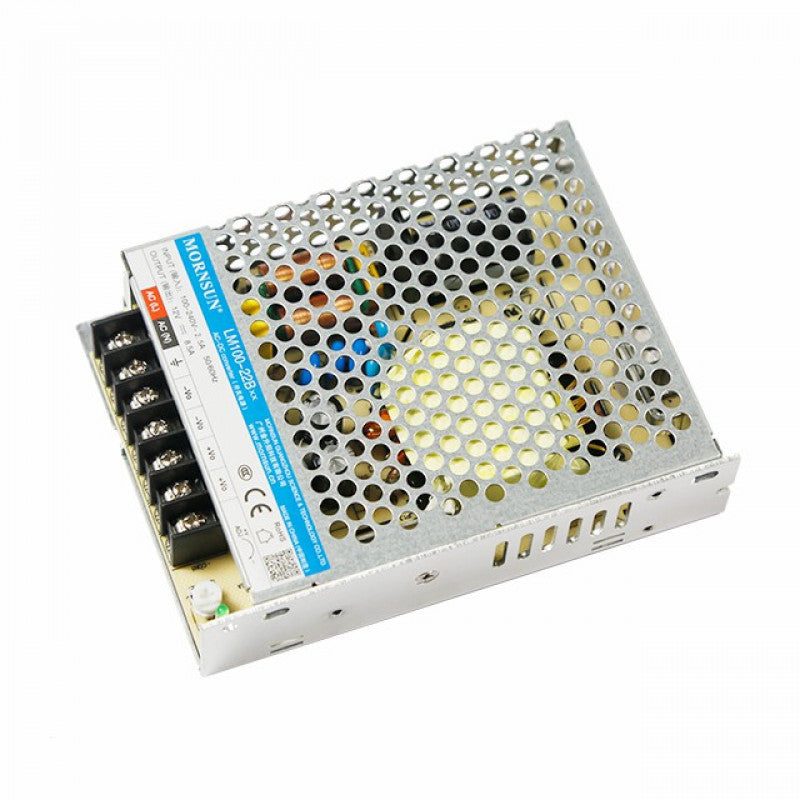

Mornsun LM100-22B24 108W AC/DC Enclosed Switching Single Output Power Supply

Mornsun LM100-22B24 108W AC/DC Enclosed Switching Single Output Power Supply

The LM100-22B24 is a cost-effective, reliable, and versatile AC-DC switching power supply from Mornsun. It features a universal AC input voltage range of 85-264VAC or 120-370VDC, and can accept DC input voltage as well. The LM100-22B24 also has low no load power consumption, high efficiency, and high reliability. It meets IEC/EN61000-4, CISPR32/EN55032/IEC/UL/EN62368, EN60335, GB4943 standards, and is widely used in a variety of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.

Features

• Universal AC input voltage range of 85-264VAC or 120-370VDC
• Accepts DC input voltage as well
• Low no load power consumption
• High efficiency
• High reliability
• Meets IEC/EN61000-4, CISPR32/EN55032/IEC/UL/EN62368, EN60335, GB4943 standards
• Widely used in a variety of applications

check out : Mornsun LM100-20B15 AC/DC 100W Enclosed Switching Power Supply

If you are looking for a reliable and versatile AC-DC switching power supply, the LM100-22B24 is a great option. It is cost-effective, has a wide range of features, and is widely used in a variety of applications.

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

check out : Mornsun LM100-20B12 AC/DC 100W Enclosed Switching Power Supply

Package Includes:

1 x Mornsun LM100-22B24 108W AC/DC Enclosed Switching Single Output Power Supply

Specifications:
