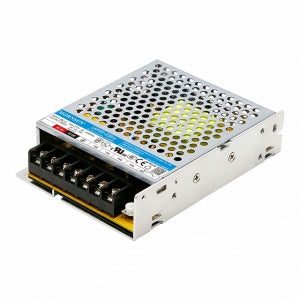

Mornsun LM100-23B12 AC/DC 100W Enclosed Switching Power Supply

Mornsun LM100-23B12 AC/DC 100W Enclosed Switching Power Supply

The LM100-23B12 is a 12V, 102W enclosed AC-DC switching power supply from Mornsun. It features a universal AC input of 85-305VAC, a DC input of 120-430VDC, and an output of 12V at 8.5A. The power supply has an efficiency of 87% and a maximum isolation voltage of 4000VAC. It is also RoHS compliant.

Features:

• Universal AC input of 85-305VAC
• DC input of 120-430VDC
• Output of 12V at 8.5A
• Efficiency of 87%
• Maximum isolation voltage of 4000VAC
• RoHS compliant

check out : Mornsun LM100-23B36 AC/DC 100W Enclosed Switching Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LM100-23B12 AC/DC 100W Enclosed Switching Power Supply

Specifications:
