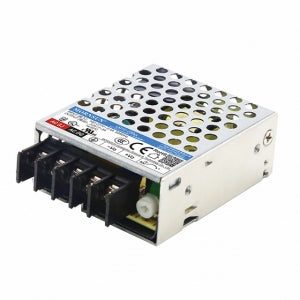

Mornsun LM15-23B48 AC/DC 15W Enclosed Switching Power Supply
The LM15-23B48 is an enclosed AC/DC converter from Mornsun America, LLC. It has a single output of 48V at 0.32A, for a total power output of 15.36W. The input voltage range is 85-305VAC or 100-430VDC, and the efficiency is 83%. The isolation voltage is 4000VAC.
The LM15-23B48 is a compact and lightweight unit, measuring just 2.25 x 4.75 x 1.25 inches and weighing 0.75 pounds. It is also conformal coated for protection against harsh environments.
The LM15-23B48 is ideal for a variety of applications, including industrial control, networking, and telecommunications. It is also a good choice for use in medical and laboratory equipment.
Features:
- Single output of 48V at 0.32A
- Total power output of 15.36W
- Input voltage range of 85-305VAC or 100-430VDC
- Efficiency of 83%
- Isolation voltage of 4000VAC
- Compact and lightweight design
- Conformal coated for protection against harsh environments
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM15-23B48 AC/DC 15W Enclosed Switching Power Supply
Specifications:
| Model | LM15-23B48 |
| Output voltage | 48V |
| Output current | 0.32A |
| Total power output | 15.36W |
| Input voltage range | 85-305VAC or 100-430VDC |
| Efficiency | 83% |
| Isolation voltage | 4000VAC |
| Dimensions | 2.25 x 4.75 x 1.25 inches |
| Weight | 0.75 pounds |
